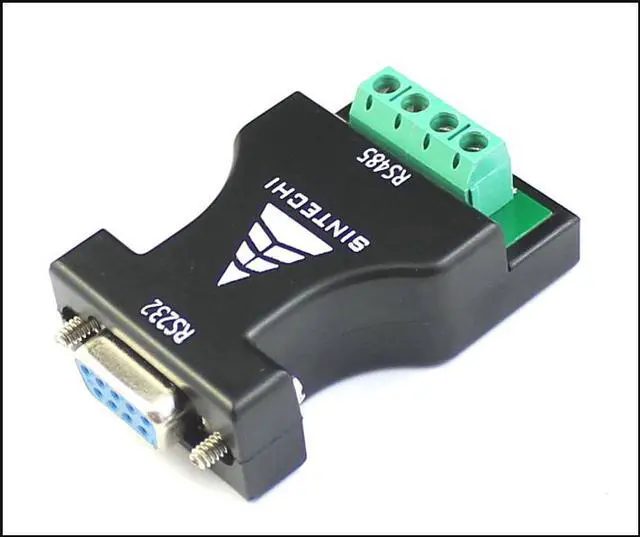

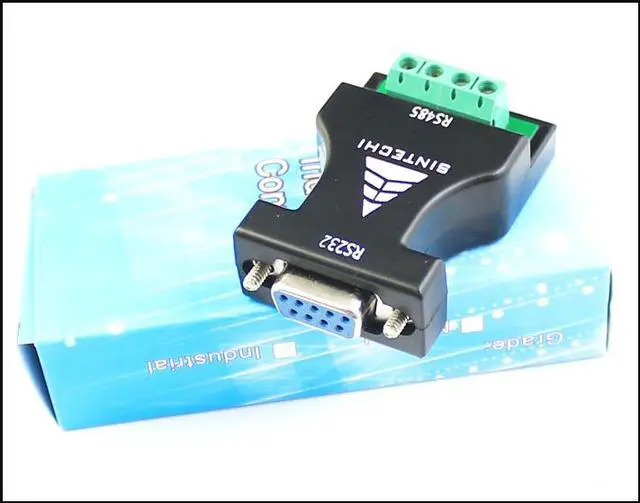

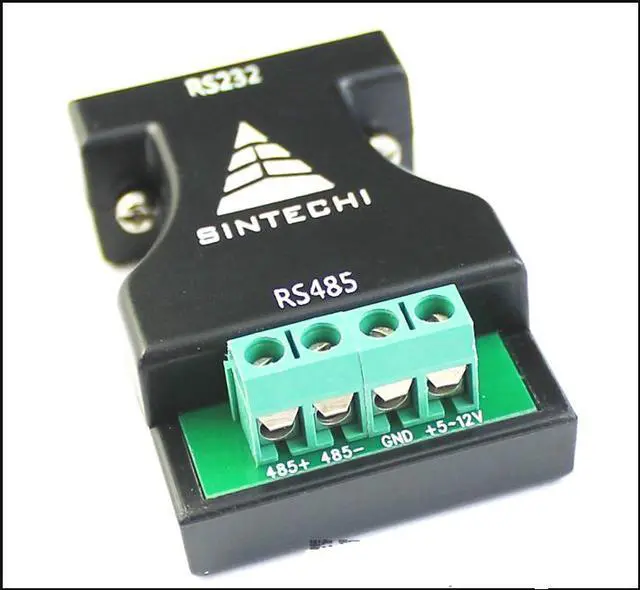

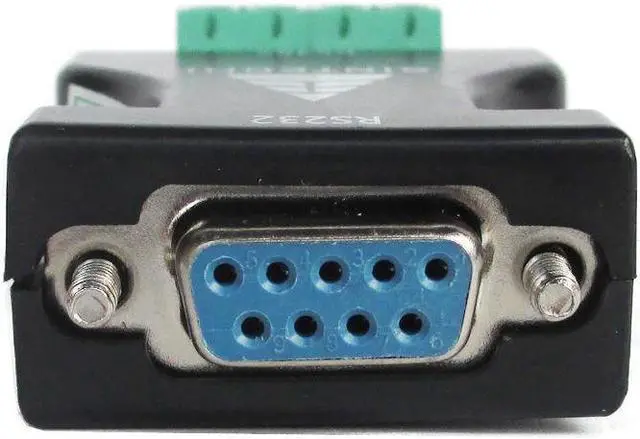

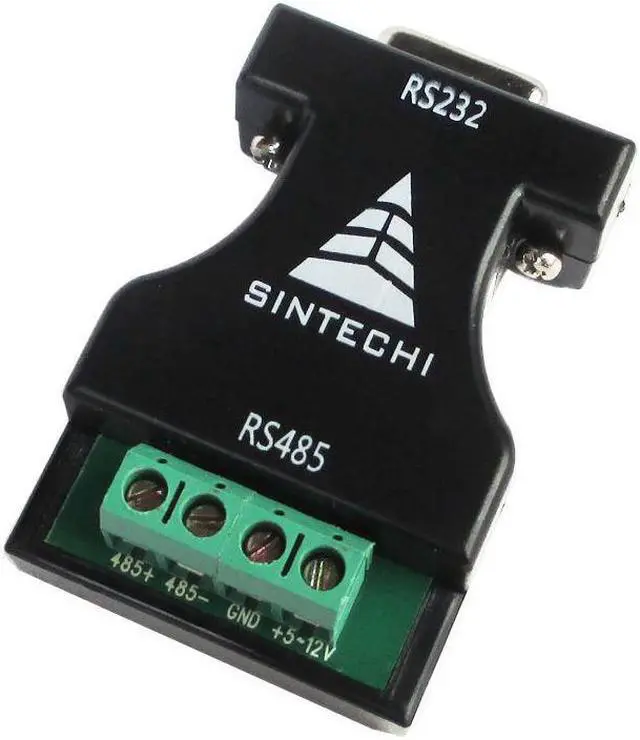

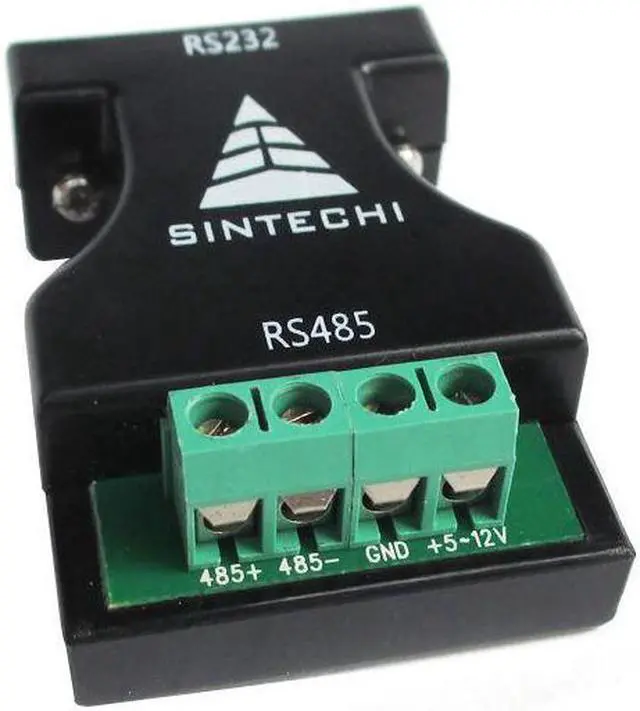

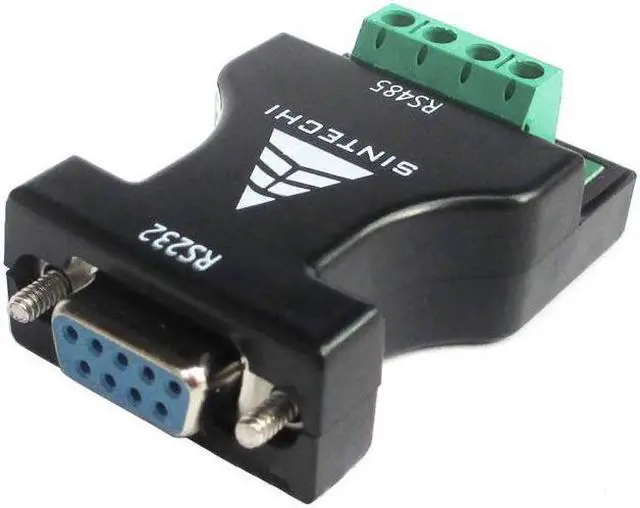

Port-Powered RS232 to RS485 Converter Adapter for Industrial Long Haul Serial Communication Supports 600W Anti-surge and 15KV Static Protection

Commercial Grade Bi-Direction RS232 to RS485 Converter used in Industrial Long-haul Communication, up to 4000ft/ 1.2 km Enabling the connections of multiple bus nodes, 32 devices can join the RS485 network Automatic RX - TX Control. Converter controls the Receive and Transmit modes automatically. Up to 115.2 kbps baud rate (auto-detect) can be applied to point to point two wire half duplex and point to multi-point two wire half duplex communication. A built-in Transient Voltage Suppressor (TVS) supports 600W anti-surge and 15KV static protection which effectively guard devices from damage. When should I use a RS232 to RS485 converter? RS232 to RS485 converters are mostly used in industrial and commercial environments.

The reason is that the RS485 converter can be used for multi-drop networks, meaning that you for example can connect multiple RS485 devices to one computer. Up to 32 devices can be connected in one network to communicate on a single pair of wires (plus a ground wire). This type of communication is called half-duplex communication. Most quality RS485 converters can communicate in this manner of up to 4000 feet (1200 meters). The RS485 converter is also fairly resistant to noise which is one more reason why it is favored in industrial environments. Guard Your Value Equipment A built-in transient voltage suppressor (TVS) supports 600W anti-surge and 15KV static protection, effectively guard your value devices from the hazards of transient surges, lightning.

No Driver Required Auto control data flow direction of I/O circuit feature makes it fully plug-and-play. Port-Power No external power supply required, it is port-powered from RS232 data lines and low consumption electricity. Mini-Size with 2 screws and terminal block
Specific Standard: EIA/TIA RS232C /
RS485 Baud Rate: 300bps - 115.2 kbps
Working Mode: 2 wire asynchronous half-duplex
Communication Mode: Point to Point, Point to Multipoint
Transmission Media: Twisted Pair (Wire diameter >= 0.5 mm) or Shielded wire
Transmission Distance: RS232
Interface: up to 50ft (15m);
RS485 Interface: up to 4000ft ( 1.2 km)
Static Protection: RS232 Interface, 15KV
Surge Protection: RS485 Interface, Each wire 600W Packing Included 1 X RS232 to RS485 Converter
