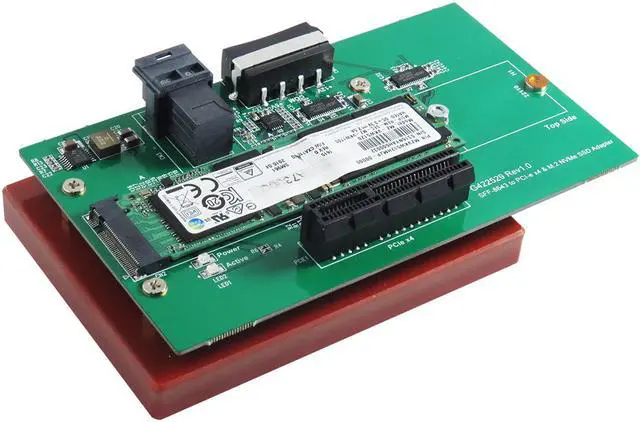

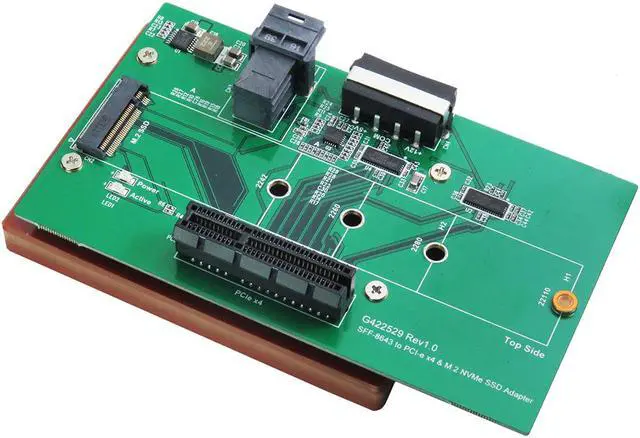

Innocard Mini SAS HD (SFF-8643) to M.2 NVMe & PCIe x4 Adapter

Features:
M.2 NVMe to Mini SAS HD(SFF-8643) convert
PCIe to U.2(SFF-8639) convert
Build in M.2 M-key Female connector
Build in SFF-8643 connector, pin-out defined by PCIe
Build in PCIe x4 slot with open-end connector
PWM synchronous buck converter Power IC for M.2 NVMe
4A maximum output current
Short circuit protection
In-rush current suppression
Thermal shutdown protection
ESD HBM (Human Body Mode)/2KV
LED2 Green LED on indicates M.2 NVMe SSD power ready
LED1 RED LED Blinking indicates M.2 SSD active status

Specifications:
Compliant with NVM Express 1.2
Support PCI Express Base Specification Rev 3.0
Support PCI Express Card Electro-Mechanical(CEM) SpecificationRev2.0
Support SSD_Form_Factor_Version1_a
Compliant with PCI Express M.2 Specification Version 1.0
Compliant with SFF-8643 Specification Rev 3.5

Supports the following form factor M.2(NGFF) SSD:
Type 2230-D2-B-M: 30mm(L) x 22mm(W)
Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
Type 2280-D2-B-M: 80mm(L) x 22mm(W)
Type 22110-D2-B-M: 110mm(L) x 22mm(W)
