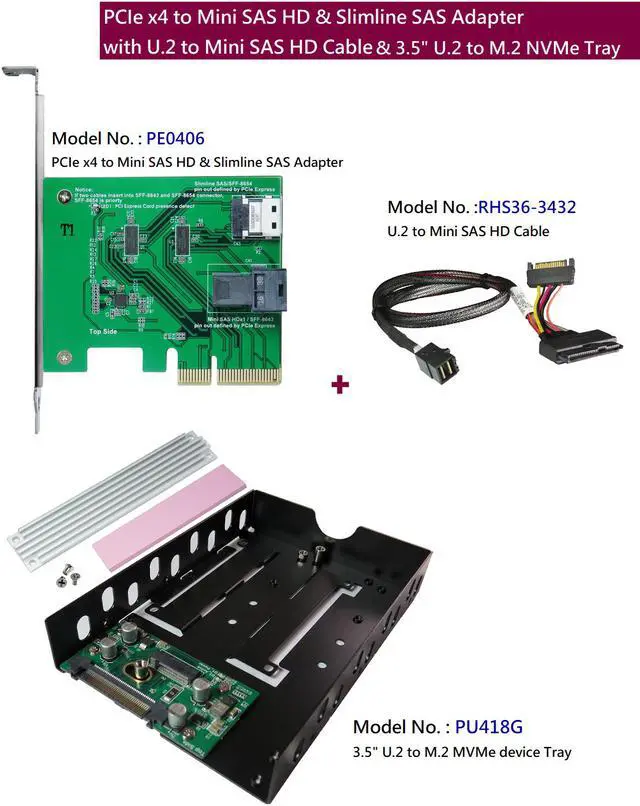

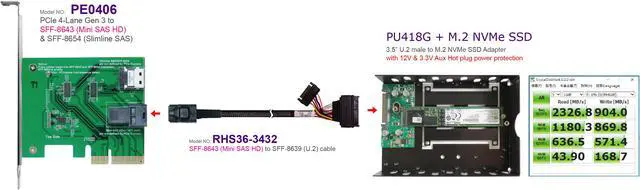

Innocard PCIe x4 to Mini SAS HD & Slimline SAS Adapter with U.2 to Mini SAS HD Cable & 3.5" U.2 to M.2 NVMe device tray with Hot plug protection

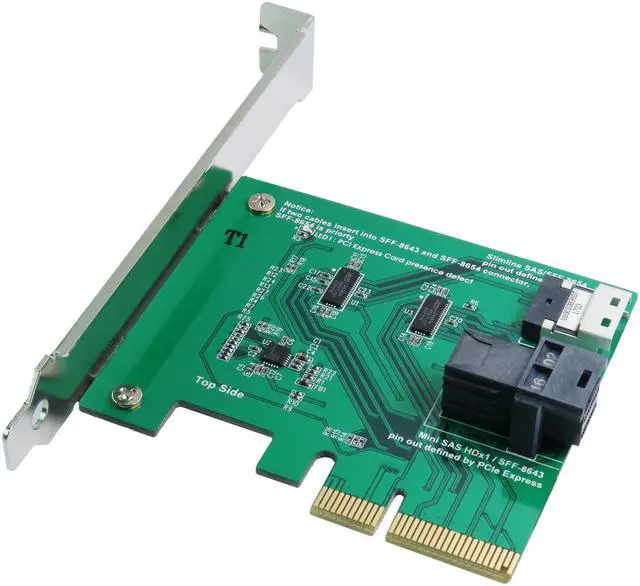

PE0406 Specification :
Mini SAD HD(SFF-8643) to PCIe convert
Slimline SAD(SFF-8654) to PCIe convert
Build in SFF-8643 connector, pin-out defined by PCIe
Build in SFF-8654 connector, pin-out defined by PCIe
D1 Green LED on indicates PE0406 adapter ready

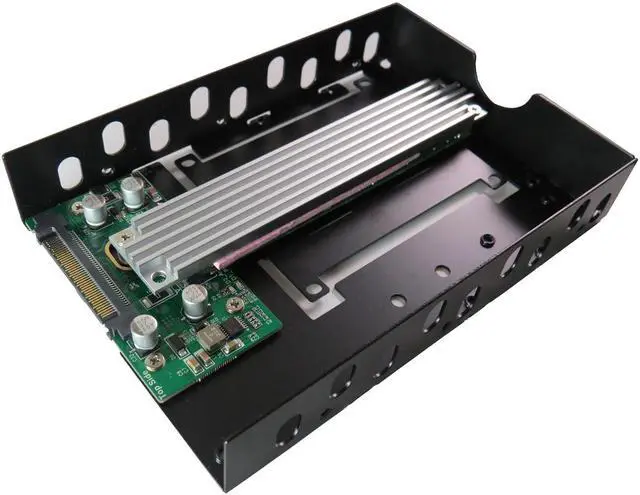

PU418G Specification :
M.2 NVMe to U.2(SFF-8639) convert
M.3 NVMe to U.2(SFF-8639) convert
Build in M.2 M-key Female connector
Build in SFF-8639 connector, pin-out defined by PCIe
12V Hot Plug and Removal power protected circuit
3.3VAux Hot Plug and Removal power protected circuit
PWM synchronous buck converter Power IC for M.2
4A maximum output current
Short circuit protection
In-rush current suppression
Thermal shutdown protection
ESD HBM (Human Body Mode)/2KV
Supports M.2 1.8V/ M.3 3.3V SMB_CLK
Supports M.2 1.8V/ M.3 3.3V SMB_DATA
Supports M.3 Dual ports, U.2 Dual ports
Supports PCIe RefClk0p, RefClk0n & RefClk1p, RefClk1n
Supports PCIe ePERst0, ePERst1
D1 Green LED on indicates M.2 NVMe SSD power ready
D2 RED LED Blinking indicates M.2 SSD active status

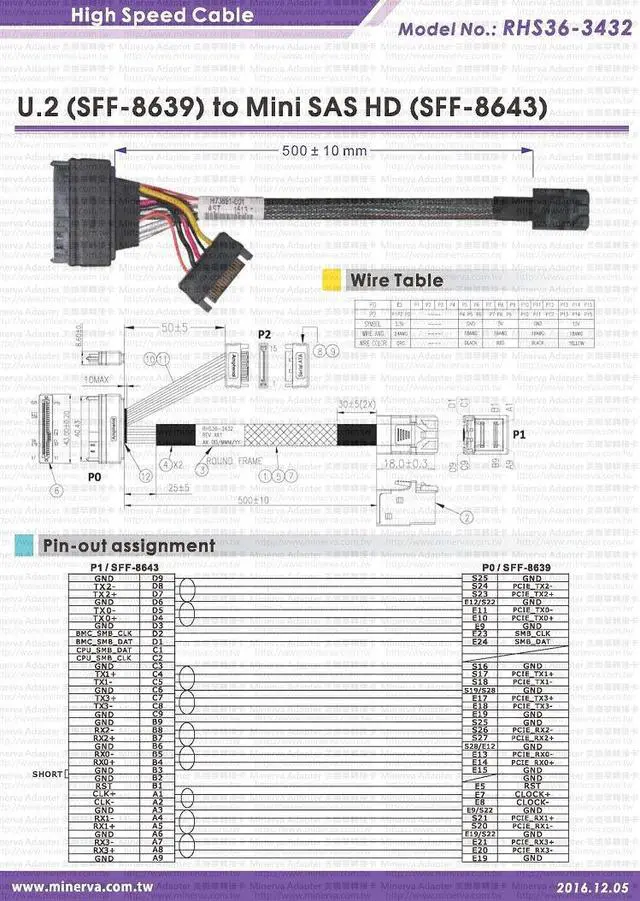

U.2 (SFF-8639) to Mini SAS HD (SFF-8643) Cable -- 50cm
