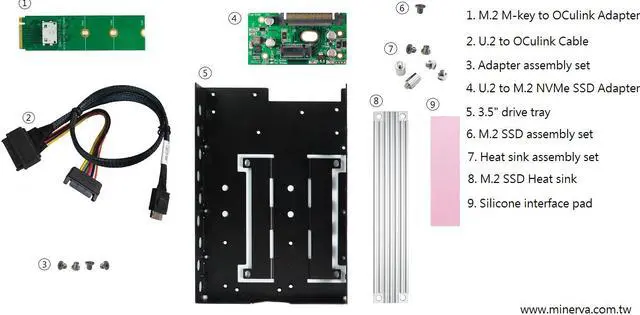

Innocard M.2 M-key to OCulink Adapter with U.2 to OCulink Cable with 3.5” U.2 (SFF-8639) to M.2 NVMe SSD with hot plug power IC protection drive tray KIT

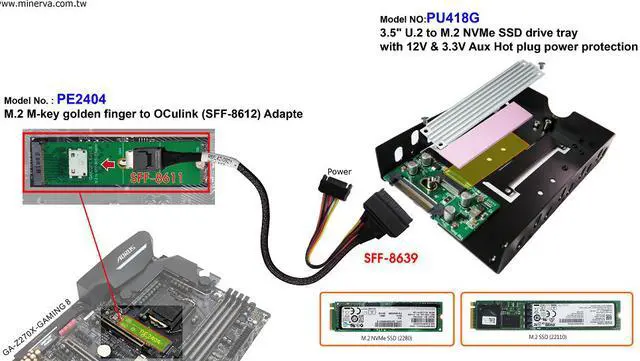

PE2404 – M. 2 M-key golden finger to OCulink
Adapter Specification: 4 lanes of PCI-e designated 4 Layer PCB designed Build in Oculink (SFF-8612) connector Connected PCIe 4 Lane signals, from M. 2 golden finger to Oculink (SFF-8612) Supports SFF-9402 CLKpin Supports Intel IDF 2015 CLKpin RML42-0921 U. 2 to OCulink
Cable Specification: U. 2 (SFF-8639) to OCulink (SFF-8611) Cable – 50cm PU418G 3.5 ” U. 2 to M. 2 NVMe SSD drive tray
Specification: M. 2 NVMe to U. 2(SFF-8639) convert M. 3 NVMe to U. 2(SFF-8639) convert Build in M. 2 M-key Female connector Build in SFF-8639 connector, pin-out defined by PCIe 12V Hot Plug and Removal power protected circuit 3.3VA ux Hot Plug and Removal power protected circuit PWM synchronous buck converter Power IC for M. 2 4A maximum output current Short circuit protection In-rush current suppression Thermal shutdown protection ESD HBM (Human Body Mode) /2KV Supports M. 2 1.8V / M. 3 3.3V SMB_CLK Supports M. 2 1.8V / M. 3 3.3V SMB_DATA Supports M. 3 Dual ports, U. 2 Dual ports Supports PCIe RefClk0p, RefClk0n & RefClk1p, RefClk1n Supports PCIe ePERst0, ePERst1 D1 Green LED on indicates M. 2 NVMe SSD power ready D2 RED LED Blinking indicates M. 2 SSD active status
