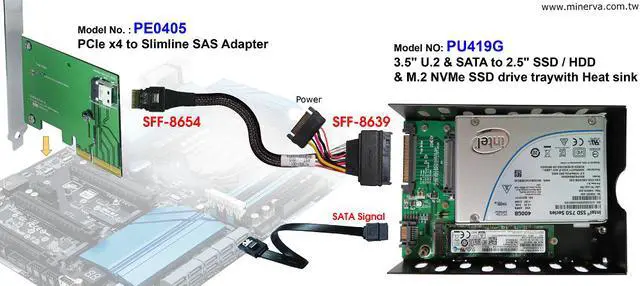

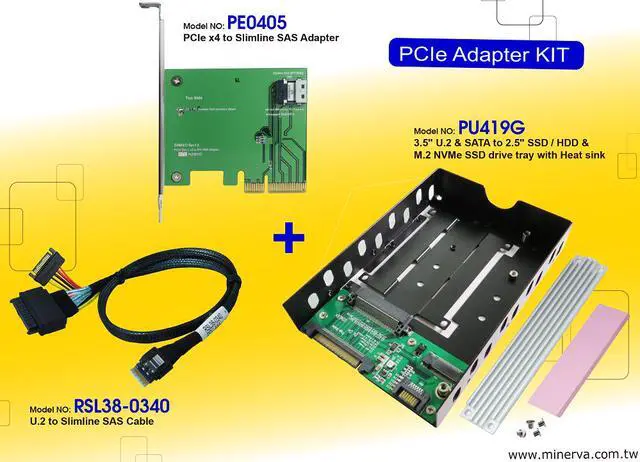

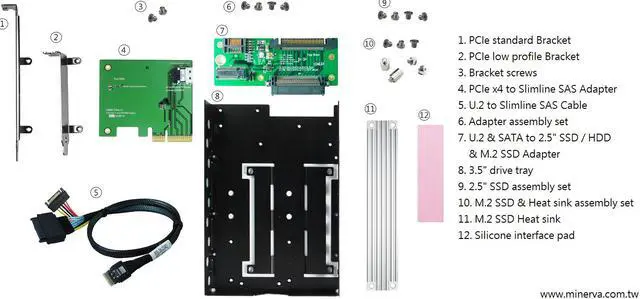

Innocard PCIe x4 to Slimline SAS Adapter & U.2 to Slimline SAS Cable with 3.5" U.2 & SATA to 2.5" SSD & M.2 SSD drive tray KIT

PE0405 – PCIe x4 to Slimline SAS Adapter Specification :
4-Layer PCB designed
Built-in SFF-8654 plug connector
LED1 ON indicates PE0405 adapter Ready
PCI Express Base Specification Rev 3.0
SFF-8654 Slimline SAS Version 3.5
PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
SSD_ Form_Factor_Version1_a
SFF-8654 Rev 1.1
SFF-9402 Rev 0.5
NVM Express* 1.2

RSL38-0340 U.2 to Slimline SAS Cable Specification :
U.2 (SFF-8639) to Slimline SAS (SFF-8654) Cable – 50cm

PU419G 3.5" U.2 & SATA to 2.5" SSD & M.2 SSD drive tray Specification :
2.5” U.2 SSD can mount to 3.5” Drive Caddy U.2 convert
M.2 SATA to SATA 7-pin convert
Build in M.2 B-key Female connector
Build in SFF-8639 connector, pin-out defined by PCIe
PWM synchronous buck Power IC for M.2 SATA SSD
3A maximum output current
Short circuit protection
In-rush current suppression
Thermal shutdown protection
ESD HBM (Human Body Mode)/2KV
D1 Green LED on indicates M.2 SATA SSD power ready
D2 Green LED on indicates U.2 NVMe SSD power ready
D3 Green LED on indicates 2.5” SATA SSD power ready
D4 RED LED Blinking on indicates U.2 or 2.5” SATA Active
D5 RED LED Blinking on indicates M.2 SATA SSD Active
