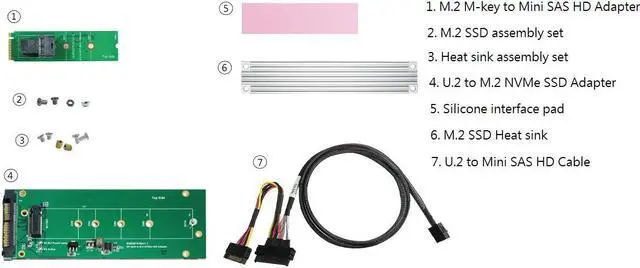

M.2 M-key Gen3 to Mini SAS HD Adapter & Mini SAS HD to U.2 Cable, 100cm & U.2 to M.2 NVMe SSD with Heat sink KIT

PE2405

Specifications

:
* 4 lanes of PCI-e designated
* 4 Layer PCB designed
* Built-in mini SAS HD(SFF-8643) connectoe
* Connected PCIe 4 Lane signals, from M. 2 golden finger to mini SAS HD(SFF-8643)
* Supports SFF-9402 Clock define
* Supports lntel Clock define

GDC36-9202 Specification:

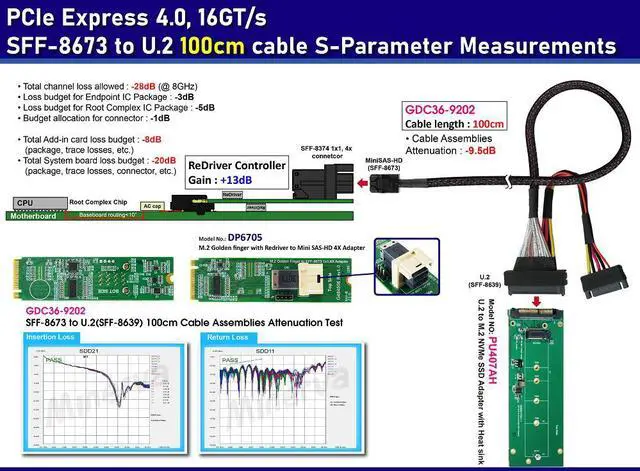

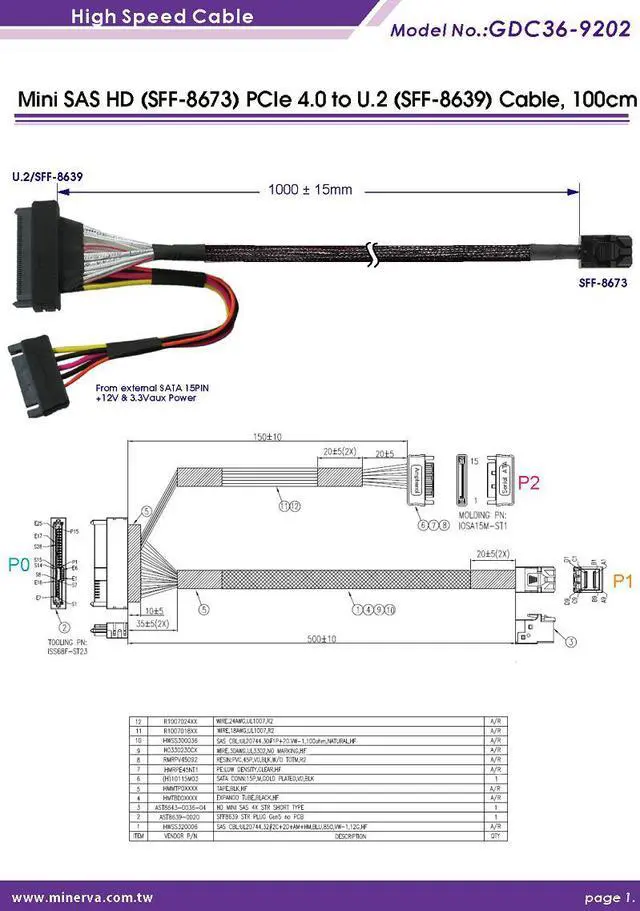

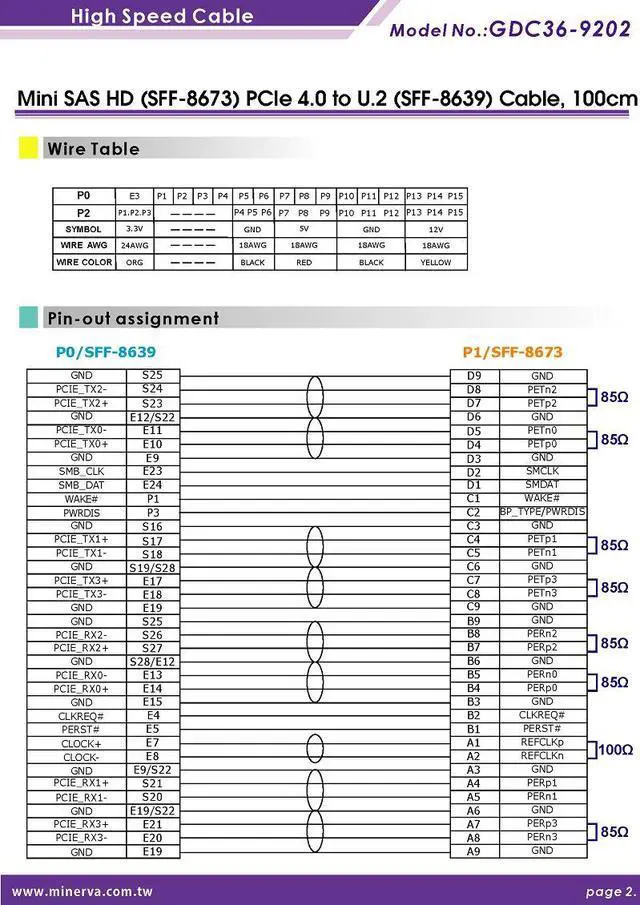

U. 2 (SFF-8639) to Mini SAS HD (SFF-8643) Cable -- 100cm


PU407AH - U. 2 to M. 2 NVMe SSD with Heat sink
Adapter Specification:
M. 2 NVMe to U. 2(SFF-8639) convert
Build in M. 2 M-key Female connector
Build in SFF-8639 connector, pin-out defined by PCIe
PWM synchronous buck converter Power IC
4A maximum output current
Short circuit protection
In-rush current suppression
Thermal shutdown protection
ESD HBM (Human Body Mode) /2KV
Supports 1.8V SMB_CLK
Supports 1.8V SMB_DATA
D1 Green LED on indicates M. 2 NVMe SSD power ready
D2 RED LED Blinking indicates M. 2 SSD active status

Support M. 2
NVMe SSD Form Factor:
22110: 22 mm (W) x 110mm (L)
2280: 22 mm (W) x 80mm (L)
2260: 22 mm (W) x 60mm (L)
2242: 22 mm (W) x 42mm (L)
2230: 22 mm (W) x 30mm (L)
