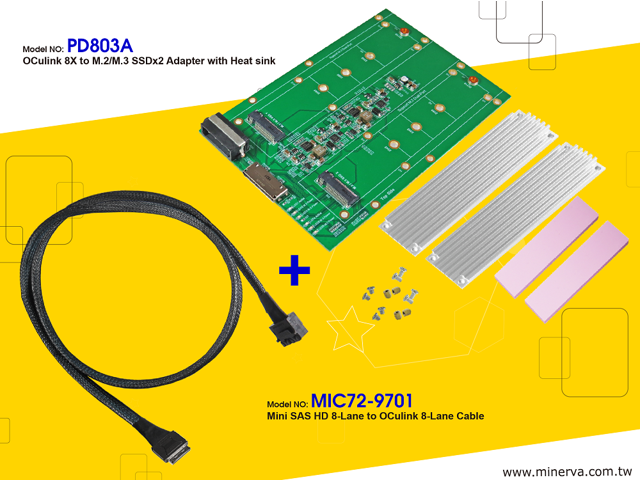

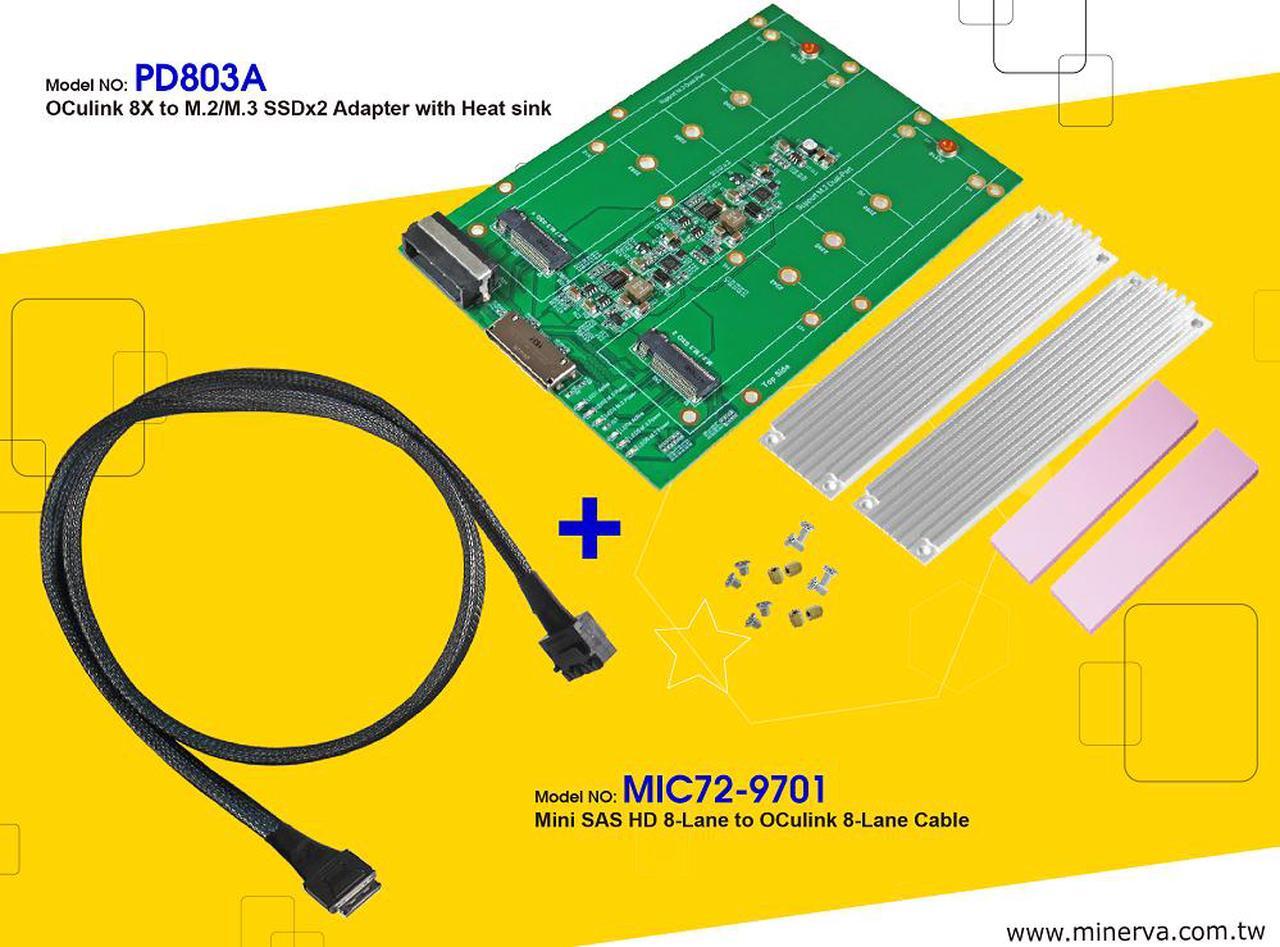

PD803A - OCulink 8-Lane (SFF-8612 8i) to M.2 NVMe SSD for Tri-Mode HBA 9405W-16i with Mini SAS HD 8-Lane (SFF-8643 8x) to OCulink 8-Lane Cable KIT

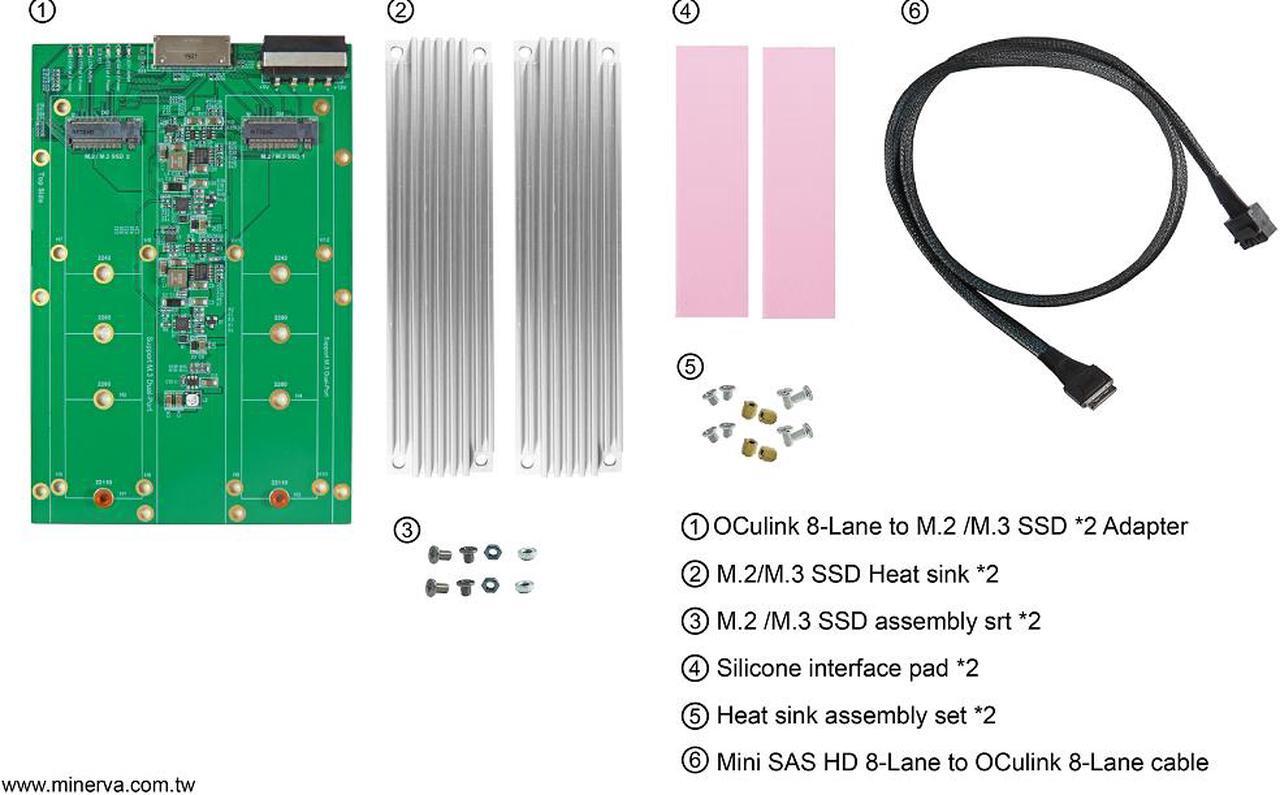

#PD803A Adapter:
Features: * Built-in SFF-8612 8i (OCulink) Female connector, pin defined by PCIe * Built-in M. 2 M-key Female connector, pin-out defined by PCIe * D1 Green LED on indicates M. 2 SSD power ready * D2 Green LED on indicates M. 3 SSD power ready * D3 RED LED Blinking indicates M. 2 or M. 3 NF1 active status * D4 Green LED on indicates M. 2 SSD power ready * D5 Green LED on indicates M. 3 SSD power ready * D6 RED LED Blinking indicates M. 2 or M. 3 NF1 active status

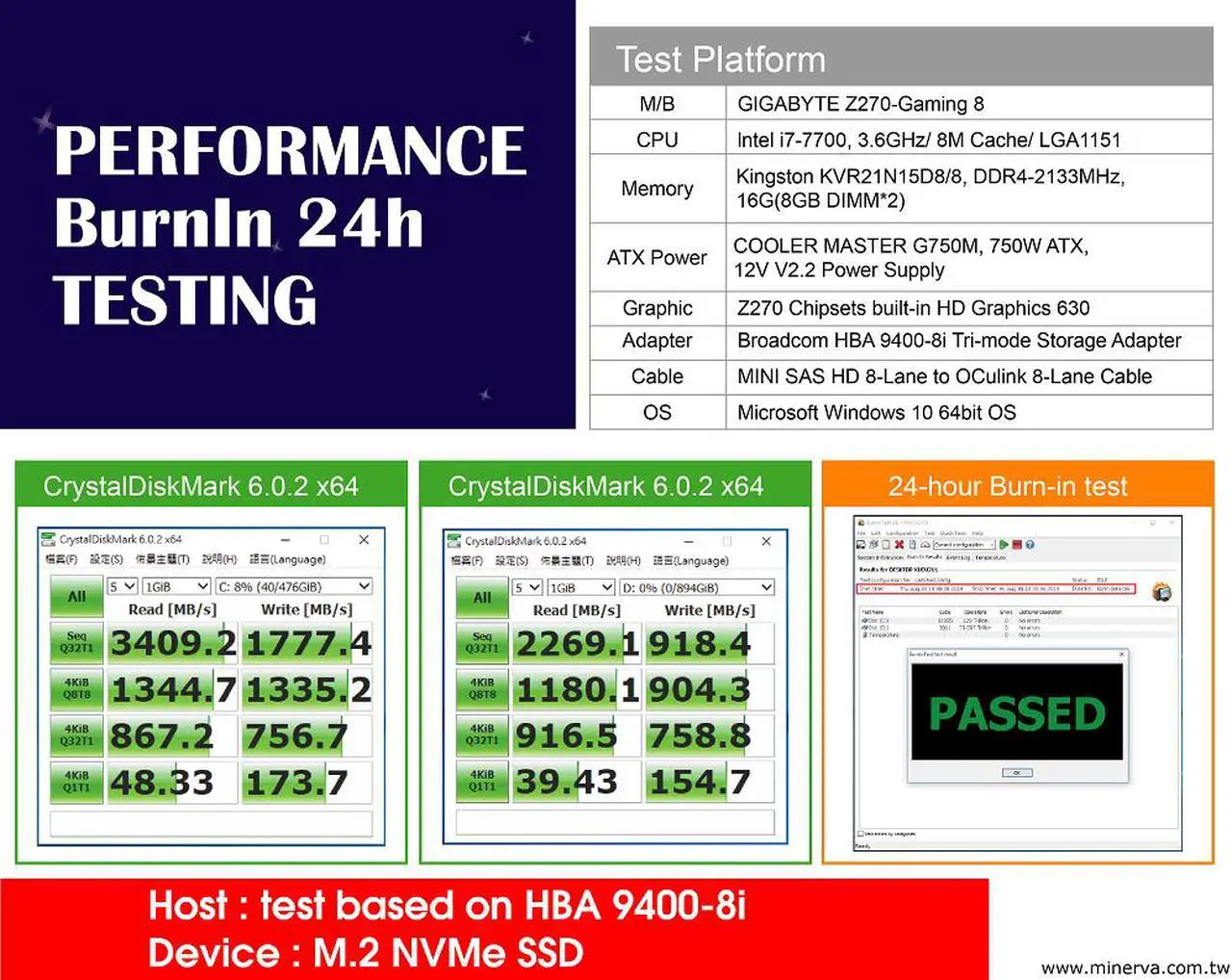

Specifications: * Compliant with NVM Express 1.0 a * Supports PCI Express Base Specification Rev 3.1 * Compliant with PCI Express M. 2 Specification Version 1.1 * Compliant with Samsung M. 3 Specification Ver. 0.4 * Supports SSD_Form_Factor_Version1_a * Compliant with SFF-8612 Specification Rev 1.0 * Compliant with SFF-9402 Specification Rev 1.0 * Compliant with Broadcom Mega
RAID and HBA Tri-mode Storage Adapter Support M. 2 / M.
3 Form factor: *
Type 2242-D2-B-M: 42mm (L) x 22mm (W) *
Type 2260-D2-B-M: 60mm (L) x 22mm (W) *
Type 2280-D2-B-M: 80mm (L) x 22mm (W) *
Type 22110-D2-B-M: 110mm (L) x 22mm (W) *
Type 305110-D2-B-M: 110mm (L) x 30.5 mm (W) for M.

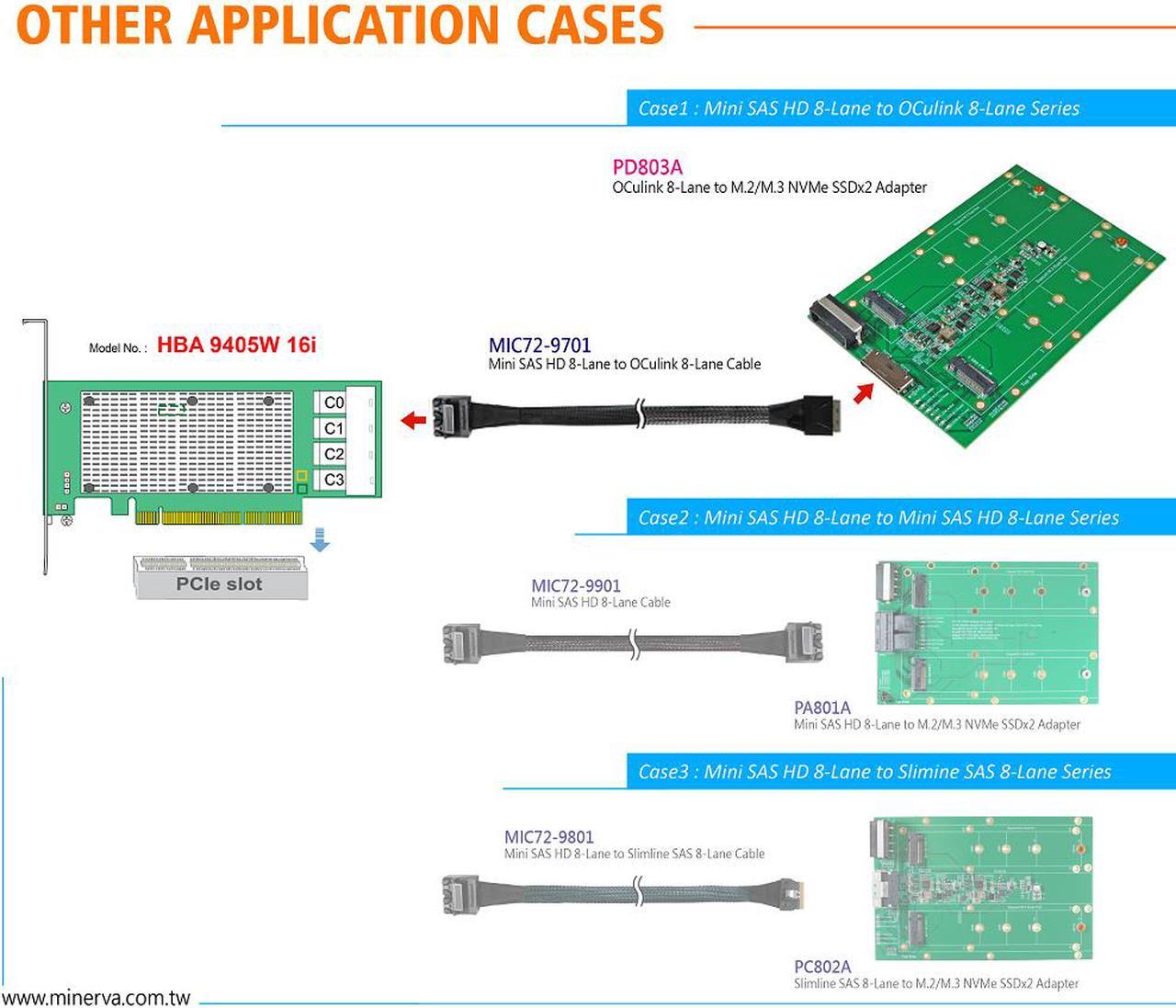

3 NF1 Application: * The adapter card PD803A is design for use by Broadcom Mega
RAID Tri-mode Storage Adapter Table 1 as below: Mega
RAID 9460-16i Mega
RAID 9460-8i Mega
RAID 9480-8i8e Mega

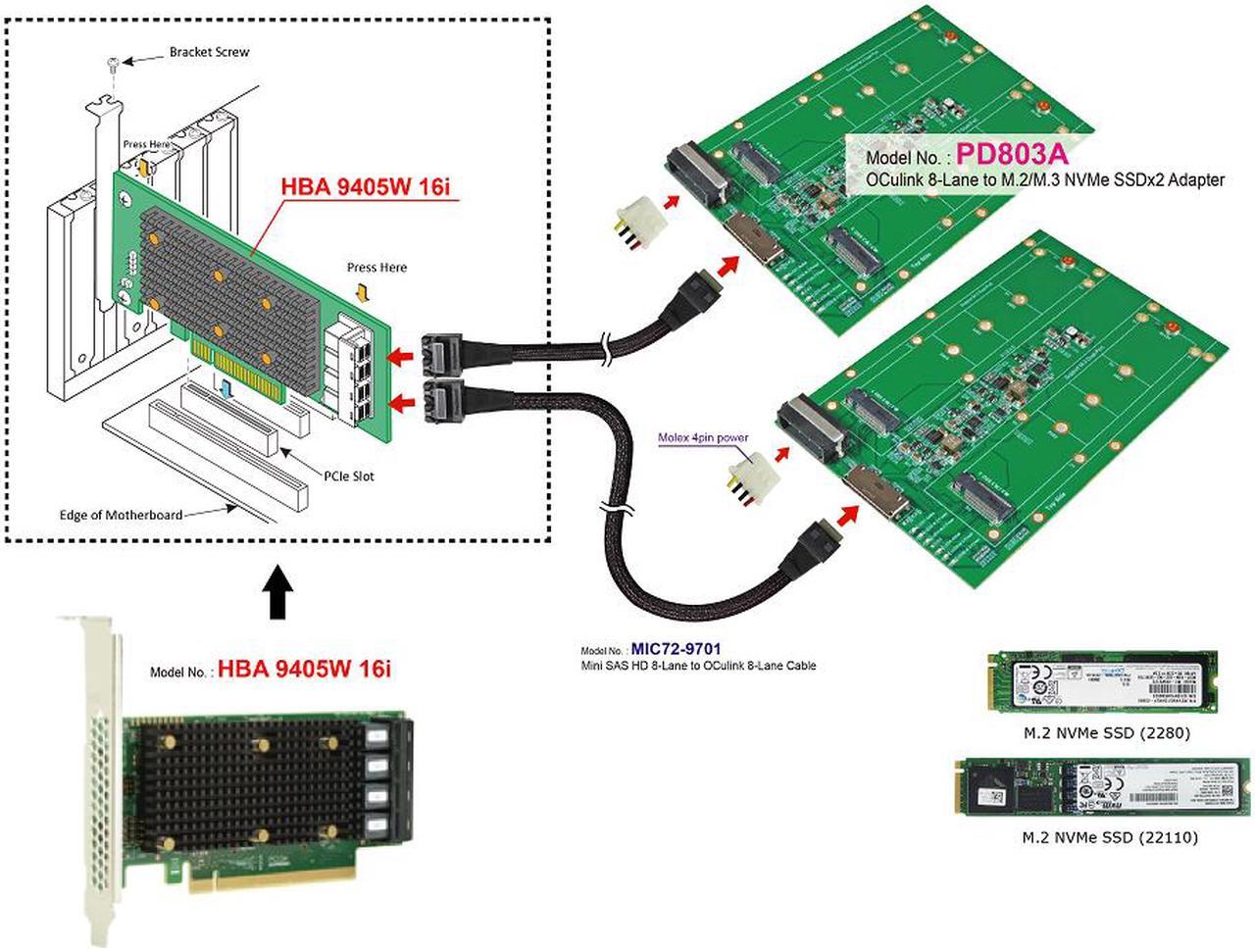

RAID 9440-8i * The adapter card PD803A is design for use by Broadcom HBA Tri-mode Storage Adapter Table 2 as below: HBA 9400-16i HBA 9400-8i HBA 9400-8i8e HBA 9405W-16i * The adapter card PD803A is designed for using with Intel Tri
Mode_Adapter_Hardware_User_Guide
Rev 1.2 -2019-12 as below: RSP3TD160F RSP3MD088F RSP3DD080F RSP3WD080E #MIC72-9701
Cable: Mini SAS HD (SFF-8643) 8-Lane to OCulink (SFF-8611) 8-Lane Cable / 100CM
