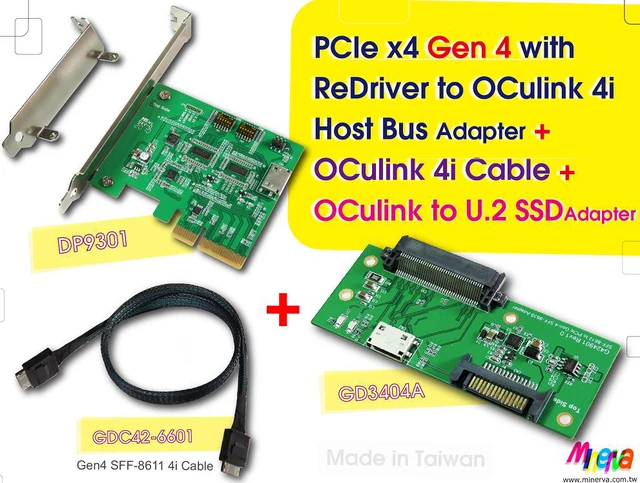

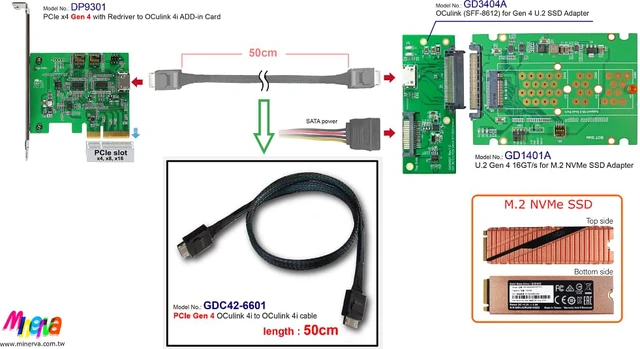

PCIe x4 Gen4 with ReDriver to OCulink 4i Host Bus Adapter & Gen4 OCulink 4i to OCulink 4i Cable & PCIe Gen4 OCulink for U.2 SSD Adapter KIT

#DP9301 Adapter
Features :
* Oculink4i (SFF-8612) to PCIe convert
* Built- in SFF-8612 connector, pin-out defined by SFF-9402 Rev1.1

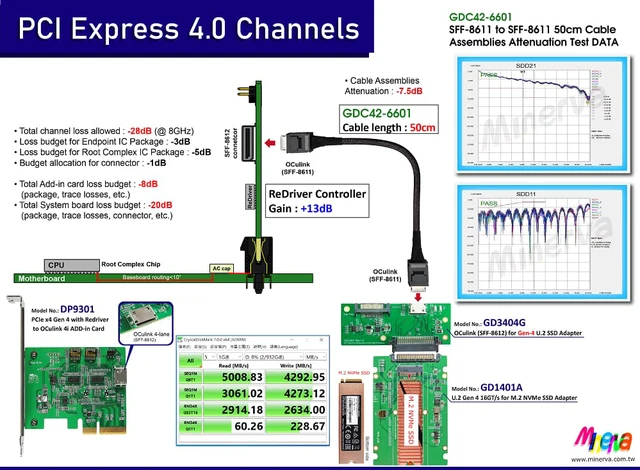

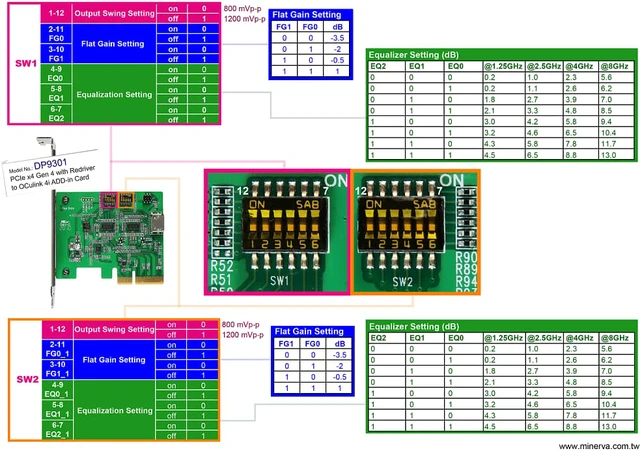

* Built- in PCIe ReDriver to extend PCIe Gen 4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in PCIe 3.3V SMCLK, SMDAT bidirectional buffer repeater
* Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Supports OCulink pin out 5V, 3.3V
* D3 Green LED on indicates DP9301 adapter ready

Specifications :
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-8612 Specification Version 3.5
* PCI_Express_OCuLink_1.0a

Operating system support :
* Windows 7
* Windows 8 &8.1
* Windows 10
* UEFI 2.3.1 or later

Applications :
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA(Host Bus Adapter)


#Part Number : GDC42-6601

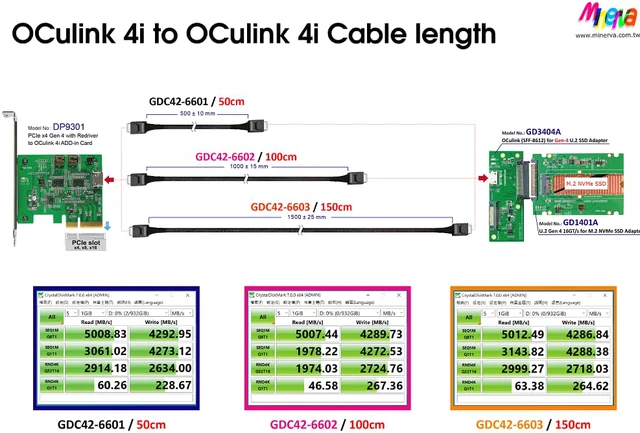

Product Description : PCIe Gen 4 16 GT/s OCulink 4i (SFF-8611) cable
Cable Length : 50CM


#GD3404A Adapter
Features :

* U.2(SFF-8639) to SFF-8612 OCulink convert
* Build in SATA 15-pin power connector
* Build in SFF-8639 connector, pin-out defined by SFF-9402 Rev1.1
* Build in SFF-8612 connector, pin-out defined by SFF-9402 Rev1.1
* U.2(SFF-8639) to SFF-8612 Oculink SMBus support
* LED 1 Red LED Blinking indicates SSD active status
* LED 2 Green LED on indicates SSD power ready


Specifications :

* Compliant with NVM Express 1.0a
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R3.0_V1.0
* Compliant with PCI_Express_OCuLink_1.0


Applications :

* Servers
* HBA(Host Bus Adapter)
* Data Center
* Storage Racks
* Storage Controller
* Servers RAIDs(Redundant Array of Independent Disks)
* Routers
* Switchs
