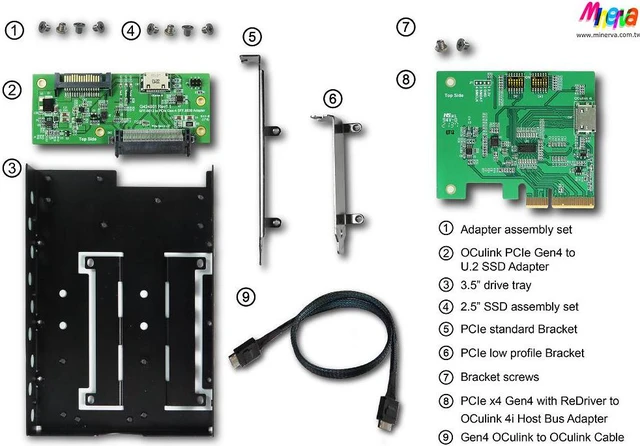

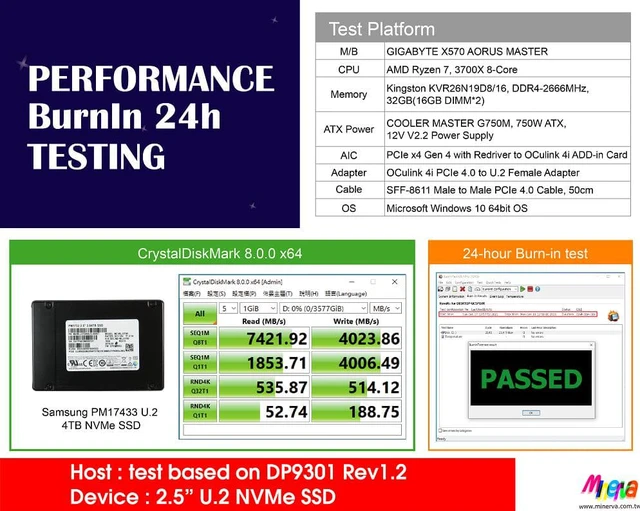

PCIe x4 Gen4 with ReDriver to OCulink 4i Host Bus Adapter & Gen4 OCulink 4i (SFF-8611) Cable/50cm & OCulink PCIe Gen4 for U.2 SSD Adapter with 3.5" Housing KIT

#DP9301 Adapter
Features:
* Oculink4i (SFF-8612) to PCIe convert
* Built- in SFF-8612 connector, pin-out defined by SFF-9402 Rev 1.1
* Built- in PCIe ReDriver to extend PCIe Gen 4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in PCIe 3.3V SMCLK, SMDAT bidirectional buffer repeater
* Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Supports OCulink pin out 5V, 3.3V

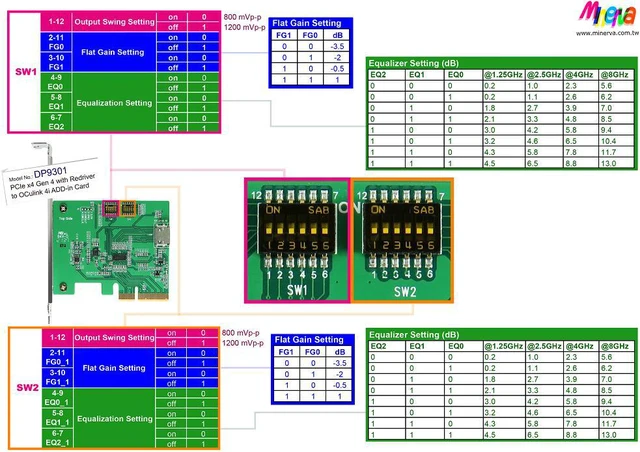

* D3 Green LED on indicates DP9301 adapter ready

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-8612 Specification Version 3.5
* PCI_Express_OCuLink_ 1.0 a

Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)



Part Number: GDC42-6601
Product Description: PCIe Gen 4 16 GT/s OCulink to OCulink Cable
Cable Length: 50CM

#GD3404G Adapter
Features:
* U. 2(SFF-8639) to SFF-8612 OCulink convert
* Build in SATA 15-pin power connector
* Build in SFF-8639 connector, pin-out defined by SFF-9402 Rev 1.1
* Build in SFF-8612 connector, pin-out defined by SFF-9402 Rev 1.1
* Oculink 4i to U. 2 NVMe supports SMBus Hot Plug
* Supports U. 2 PWRDIS function
* Input +12V with 40V, 5A Schottky barrier rectifiers
* Input +12V High-Side Protection Controller with Charge pump gate driver for external N-Channel MOSFET
* Input +12V Overvoltage Protection
* Input +12V Undervoltage Lockout Protection
* Input 3.3VAUX with Load Switch Protection
* LED 1 Green LED on indicates SSD power ready
* LED 2 Red LED Blinking indicates SSD active status
* LED 3 Green LED on indicates +12V power Fault

Specifications

:
* Compliant with NVM Express 1.0 a
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R 3.0 _V 1.0
* Compliant with PCI_Express_OCuLink_ 1.0

Applications:
* Servers
* HBA (Host Bus Adapter)
* Data Center
* Storage Racks
* Storage Controller
* Servers RAI
Ds (Redundant Array of Independent Disks)
* Routers
* Switchs


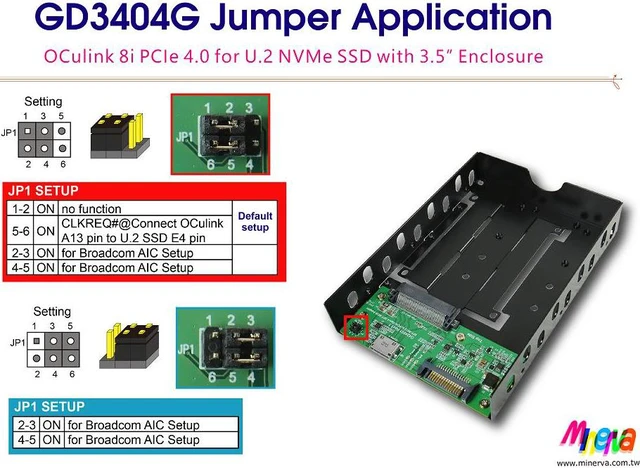

The GD3404G adapter can support the following Broadcom products
* For Broadcom 96xx PCIe 4.0, 24G SAS MegaRAID and eHBA
Tri-Mode Storage Adapters:
MegaRAID 9670W-16i
MegaRAID 9670-24i
MegaRAID 9660-16i
eHBA 9620-16i
eHBA 9600-24i
eHBA 9600-16i
eHBA 9600-8e8i

Application case 2:
* For Broadcom 95xx PCIe 4.0 MegaRAID and
HBA Tri-Mode Storage Adapters:
MegaRAID 9560-16i
MegaRAID 9560-8i
MegaRAID 9580-8i8e
HBA 9500-16i
HBA 9500-8i
P411W-32P
