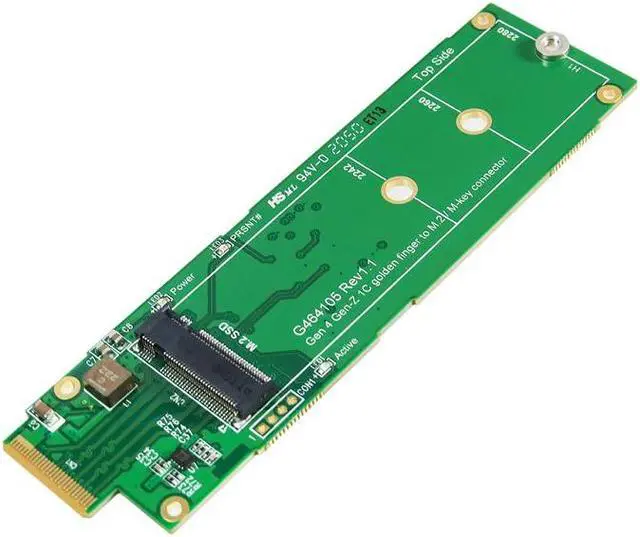

SFF-TA-1006 PCIe Gen4 Golden Finger to M.2 NVMe SSD Adapter

"DP4203"
Adapter:

Features:
* 4 Lanes of PCIe designated
* 4-layer PCB designed
* M. 2 NVMe to Gen-Z 1C (EDSF) convert

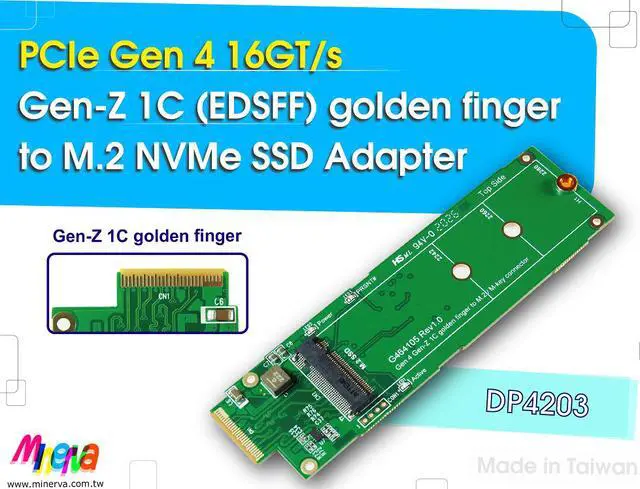

* Built-in Gen-Z 1C connector, pin-out defined by SFF-9402 Rev 1.3
* PWM synchronous buck converter Power for M. 2 NVMe SSD
* 4A maximum output current
* Short circuit protection
* n-rush current suppression
* Thermal shutdown protection
* ESD HBM (Human Body Mode) /2KV
* Built-in power Load Switch with controlled turn on, can support a maximun continuous current of 4A
* Supports CLKREQ#
* Supports M. 2 / 1.8V to Gen-Z 1C/ 3.3V SMB_CLK, SMBDATA Level Shift
* Supports M. 2 / 1.8V to Gen-Z 1C/ 3.3V SMB_CLK, SMB_DATA isolated, repeater
* Built-in SMBUS EEPROM 64KB
* LED1 RED LED Blinking indicates M. 2 active status
* LED 2 Green LED on indicates M. 2 NVMe SSD power ready
* LED 3 Green LED on indicates Gen-Z 1C PRSNT#

Specifications

:

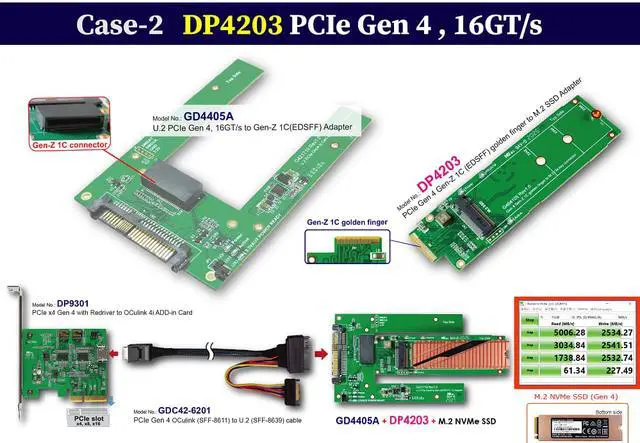

* Support PCI Express Base Specification Rev 4.0
* Compliant with PCIe M. 2 Specification Revision 3.0, Version 1.2
* Compliant with PCIe SFF-8639 Module Specification Rev 3.0
* Compliant with SFF-TA-1002 Rev 1.3
* Compliant with SFF-TA-1006 Enterprise and Datacenter 1U Short SSD Form Factor Rev 1.4
* Compliant with Gen-Z Scalable Connector Rev 1.1

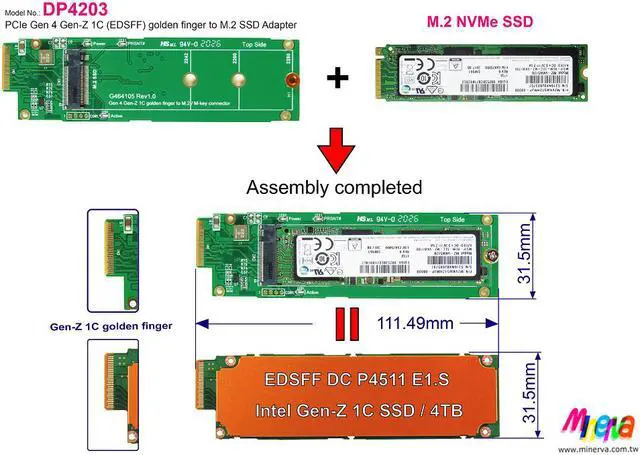

Supports the following form factor M. 2 (NGFF)
SSD:
* Type 2242-D2-B-M: 42mm (L) x 22mm (W)
* Type 2260-D2-B-M: 60mm (L) x 22mm (W)
* Type 2280-D2-B-M: 80mm (L) x 22mm (W)
