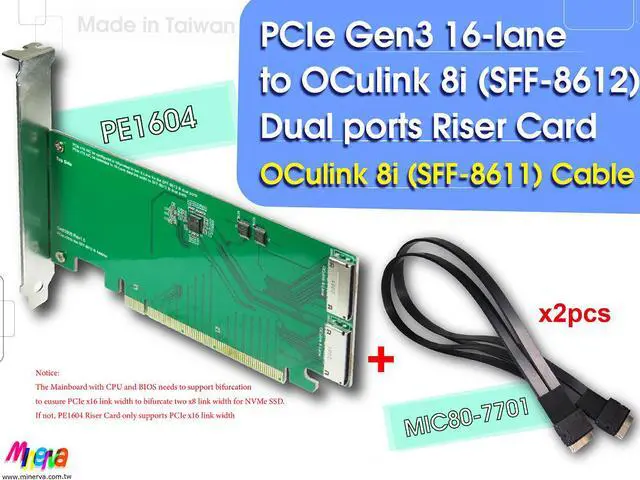

PCIe Gen3 16-Lane for OCulink 8i (SFF-8612) Dual ports Riser Card with OCulink 8-Lane Cable x2pcs KIT
- Notice:

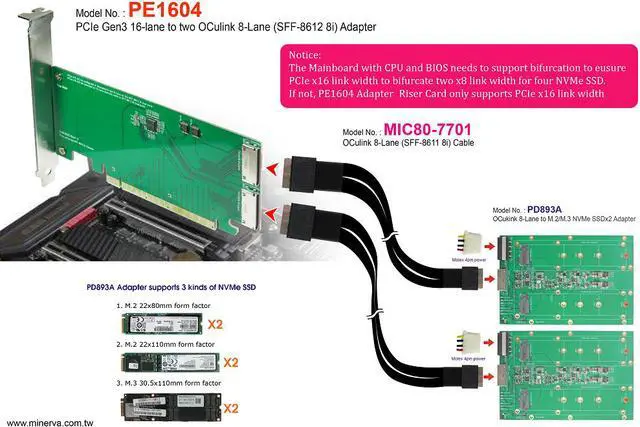

- The Mainboard with CPU and BIOS needs to support bifurcation to eusure PCIe x16 link width to bifurcate two x8 link width for NVMe SSD.
- If not, PE1604 Riser Card only supports PCIe x16 link width
- Support OCulink 8-Lane Cable
- www.minerva.com.tw
- Designed / Made in Taiwan
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

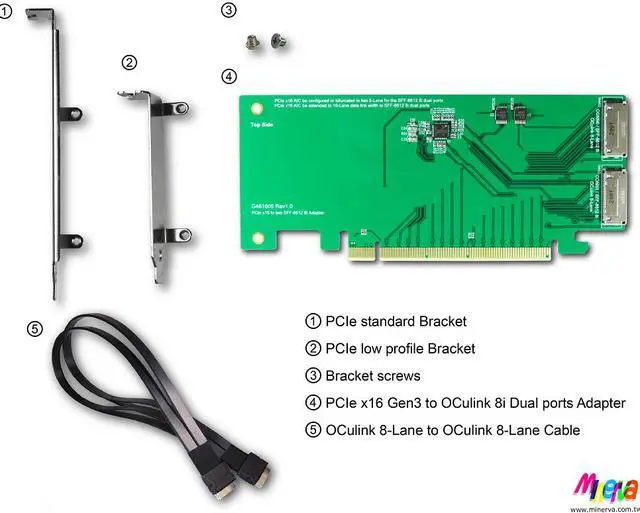

#PE1604 Adapter :
Features:
* PE1604 can be bifurcated in quad x4 data link width configurations (need CPU and BIOS both support)
* PE1604 can be bifurcated in two x8 data link width configurations (need CPU and BIOS both support)

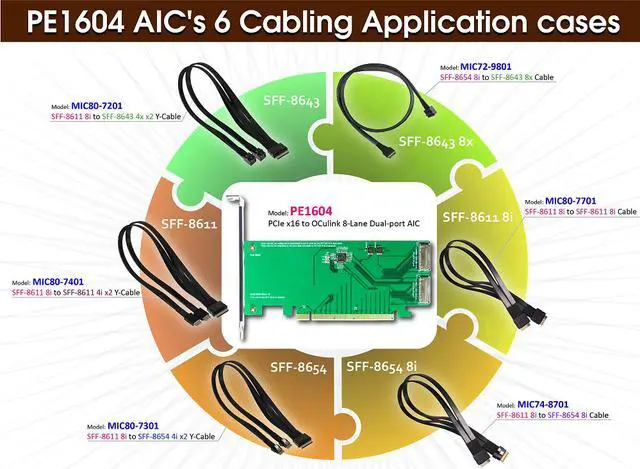

* PE1604 can be used over a cable to extend x16 data link width
* PE1604 features four internal NVMe(SFF-8612 8i x2) for high-perfoemace storage connectivity.
* Build in OCulink(SFF-8612) 8i connector 2 sets, pin-out defined by SFF-9402
* Eight internal lanes per OCulink 8i port, 6.4G b/s per port
* Supports four physical NVMe devices * Supports SFF-9402 clock pin out
* Supports Intel define Mini SAS HD(SFF-8643) clock pin out

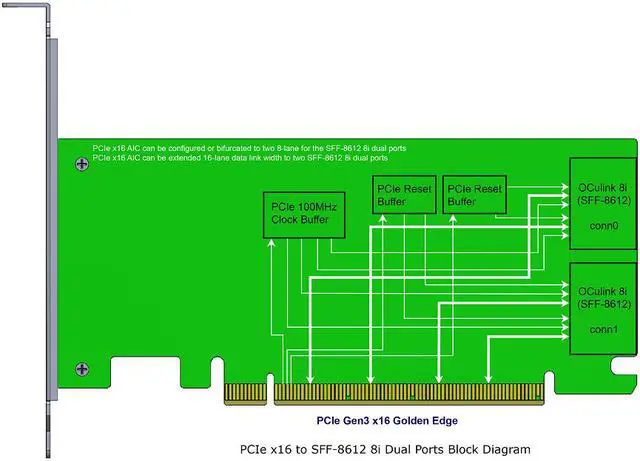

* Enables the system clock signal to be used over longer trace lengths and over a cable
* Supports SFF-9402 perst# pin out
* Supports Intel Define Mini SAS HD(SFF-8643) perst# pin out
* Enables the system perst# signal to be used over longer trace lengths and over a cable
#MIC80-7701 Cable x2pcs :
OCulink (SFF-8611) 8-Lane to OCulink 8-Lane Cable / 50CM
Features:
* PE1604 can be bifurcated in quad x4 data link width configurations (need CPU and BIOS both support)
* PE1604 can be bifurcated in two x8 data link width configurations (need CPU and BIOS both support)
* PE1604 can be used over a cable to extend x16 data link width
* PE1604 features four internal NVMe(SFF-8612 8i x2) for high-perfoemace storage connectivity.
* Build in OCulink(SFF-8612) 8i connector 2 sets, pin-out defined by SFF-9402
* Eight internal lanes per OCulink 8i port, 6.4G b/s per port
* Supports four physical NVMe devices * Supports SFF-9402 clock pin out
* Supports Intel define Mini SAS HD(SFF-8643) clock pin out
* Enables the system clock signal to be used over longer trace lengths and over a cable
* Supports SFF-9402 perst# pin out
* Supports Intel Define Mini SAS HD(SFF-8643) perst# pin out
* Enables the system perst# signal to be used over longer trace lengths and over a cable
#MIC80-7701 Cable x2pcs :
OCulink (SFF-8611) 8-Lane to OCulink 8-Lane Cable / 50CM
