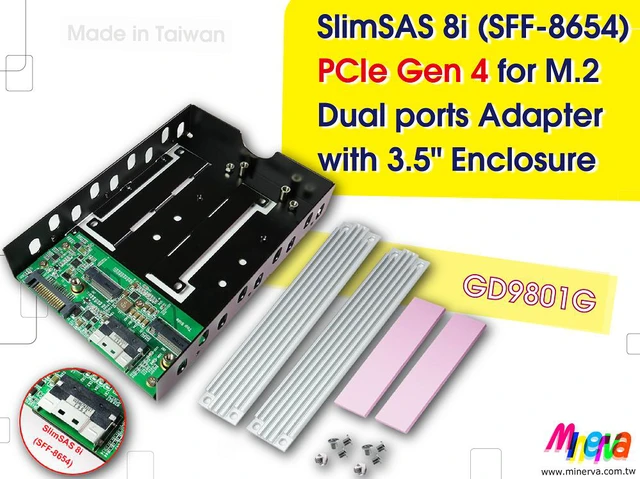

SlimSAS 8i PCIe 4.0 to M.2 x2 SSD + 3.5" Tray for Broadcom MegaRAID & HBA Tri-Mode Storage Adapter

#GD9801G
Adapter:

Features:
* M. 2 dual ports to SlimSAS 8i(SFF-8654) convert
* Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev 1.1
* Built-in two M. 2 M-key connector
* PWM synchronous buck converter Power for M. 2 dual ports SSD
* 8A maximum output current
* Over Current Protection
* Under Voltage Protection
* Under voltage lock out protection (UVLO) monitors
* Thermal shutdown protection
* ESD Human Body Mode (HBM) /2KV
* Built-in two 3.3V Hot Plug Power with eFuse protection for M. 2 dual ports
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* Supports M. 2 to PCIe CLKREQ#, WAKE#
* Supports M. 2 / 1.8V to PCIe/ 3.3V SMB_CLK, SMBDATA Level Shift
* Supports M. 2 / 1.8V to PCIe / 3.3V SMB_CLK, SMB_DATA isolated, repeater
* Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA
Tri-Mode Storage Adapters
* Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and
HBA Tri-Mode Storage Adapters
* LED5, LED6 Green LED on indicates M. 2 NVMe SSD power ready
* LED1, LED2 RED LED Blinking indicates M. 2 active status
