MINI SAS HD 8x to M.2 SSD x2 for Broadcom MegaRAID and HBA Tri-Mode

#PA801A Adapter :

Features :
* Built-in SFF-8643 8x (MINI SAS HD) Female connector, pin defined by PCIe
* Built-in M. 2 M-key Female connector, pin-out defined by PCIe
* D1 Green LED on indicates M.2 SSD power ready
* D2 Green LED on indicates M.3 SSD power ready
* D3 RED LED Blinking indicates M.2 or M.3 NF1 active status
* D4 Green LED on indicates M.2 SSD power ready
* D5 Green LED on indicates M.3 SSD power ready
* D6 RED LED Blinking indicates M. 2 or M. 3 NF1 active status

Specifications:
* Compliant with NVM Express 1.0 a
* Supports PCI Express Base Specification Rev 3.1
* Compliant with PCI Express M. 2 Specification Version 1.1
* Compliant with Samsung M. 3 Datasheet_v 0.4
* Supports SSD_Form_Factor_Version1_a
* Compliant with SFF-8639 Specification Rev 2.5
* Compliant with Broadcom MegaRAID and HBA Tri-mode Storage Adapter

Support M. 2 / M.3 Form factor:
*Type 2242-D2-B-M: 42mm (L) x 22mm (W)
*Type 2260-D2-B-M: 60mm (L) x 22mm (W)
*Type 2280-D2-B-M: 80mm (L) x 22mm (W)
*Type 22110-D2-B-M: 110mm (L) x 22mm (W)
*Type 305110-D2-B-M: 110mm (L) x 30.5 mm (W) for M.3 NF1

Application:

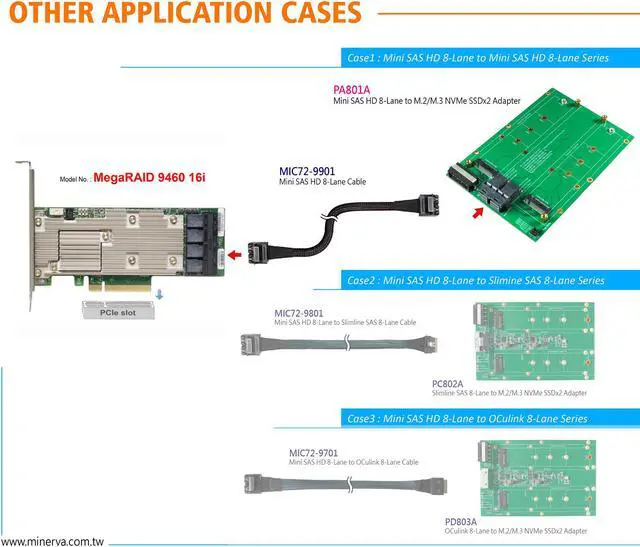

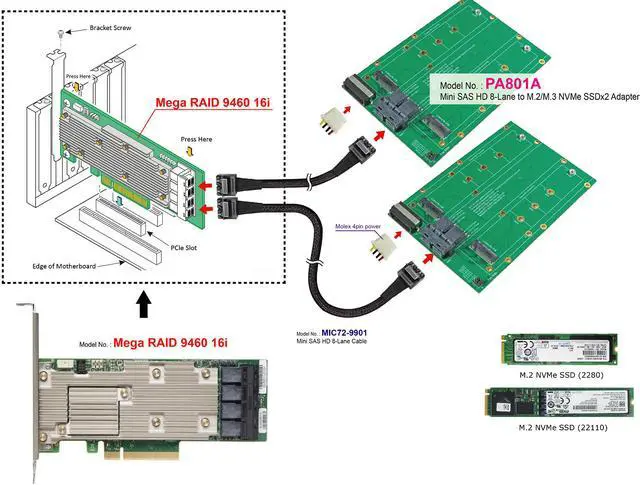

* The adapter card PA801A is design for use by Broadcom MegaRAID Tri-mode Storage Adapter Table 1 as below:
MegaRAID 9460-16i
MegaRAID 9460-8i
MegaRAID 9480-8i8e
MegaRAID 9440-8i

* The adapter card PA801A is design for use by Broadcom HBA Tri-mode Storage Adapter Table 2 as below:
* HBA 9400-16i
* HBA 9400-8i
* HBA 9400-8i8e
* HBA 9405W-16i
