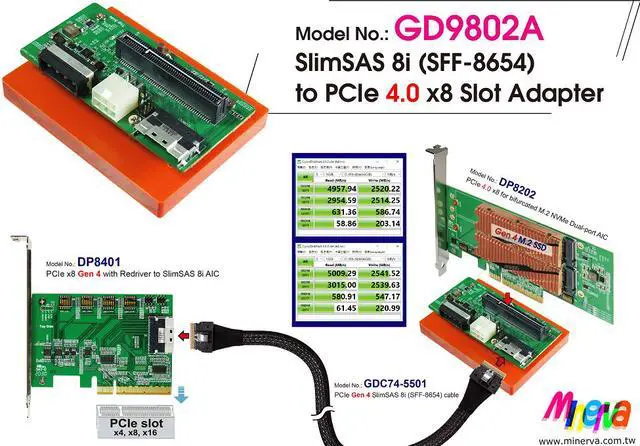

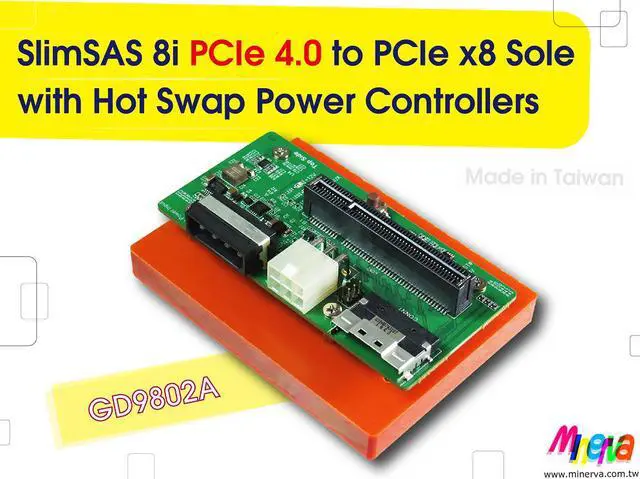

SlimSAS 8i PCIe 4.0 to PCIe x8 Slot Adapter with +12V, 3.3V, 3.3Vaux Hot Swap Power Controllers

Features :
* SlimSAS 8i(SFF-8654) to PCIe x8 convert
* Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev1.1
* Built-in PCIe x8 Slot
* Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* PWM synchronous 12V to 3.3V buck converter Power
* 4A maximum output current
* Over Current Protection
* Under Voltage Protection
* Under voltage lock out protection (UVLO) monitors
* Thermal shutdown protection
* ESD Human Body Mode(HBM)/2KV
* Built-in 3.3V Power Load Switch for PCIe +3.3V
* 12V to 3.3V LDO buck converter Power
* Built-in 3.3V Power Load Switch for PCIe 3.3Vaux
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer

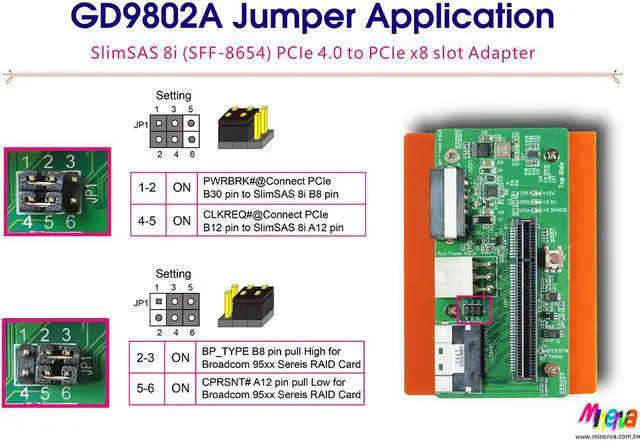

* Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* LED1 PCIe +12V power ready
* LED2 PCIe +3.3V power ready
* LED3 PCIe 3.3Vaux power ready

Specifications :
* Support PCI Express Base Specification Rev 4.0
* Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-8654 Rev1.2
* Compliant with SFF-9402 Rev1.1
* Support Broadcom Compliant with SFF-9402 Rev1.1
