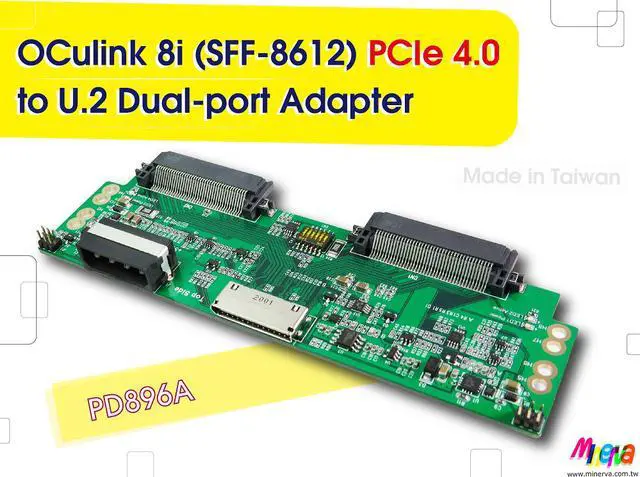

OCulink 8i PCIe 4.0 to U.2 Daul port with +12V Hot Swap Power Controllers

Features :
* U.2 dual ports to OCulink 8i(SFF-8612) convert
* Built-in OCulink 8i connector, pin-out defined by SFF-9402 Rev1.1
* Built-in two U.2 SFF-8639 connector
* Built-in two 12V Hot Plug Power with eFuse protection for U.2 dual ports
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* Supports U.2 to PCIe CLKREQ#, WAKE#

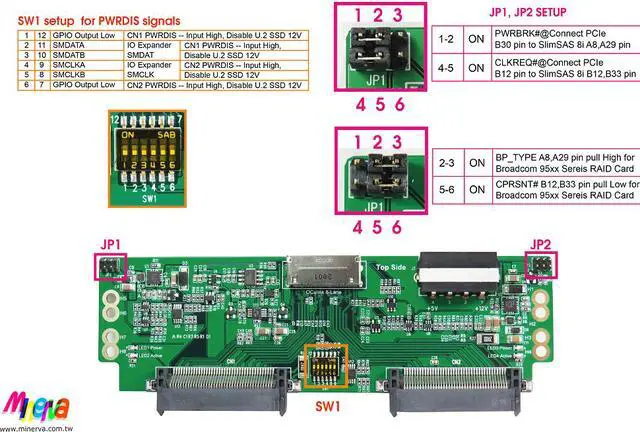

* Supports U.2 PWRDIS Implementation
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer
* Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* LED2, LED4 Green LED on indicates U.2 NVMe SSD power ready
* LED1, LED3 RED LED Blinking indicates U.2 active status

Specifications :
* Compliant with NVM Express 1.4
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R3.0_V1.0
* Compliant with SFF-TA-1001 Rev1.1
* Compliant with PCI_Express_OCuLink_1.0
* Compliant with SFF-9402 Rev1.1

Applications:
* Servers
* HBA(Host Bus Adapter)
* Data Center
* Storage Racks
* Storage Controller
* Servers RAIDs(Redundant Array of Independent Disks)
* Routers
* Switchs
