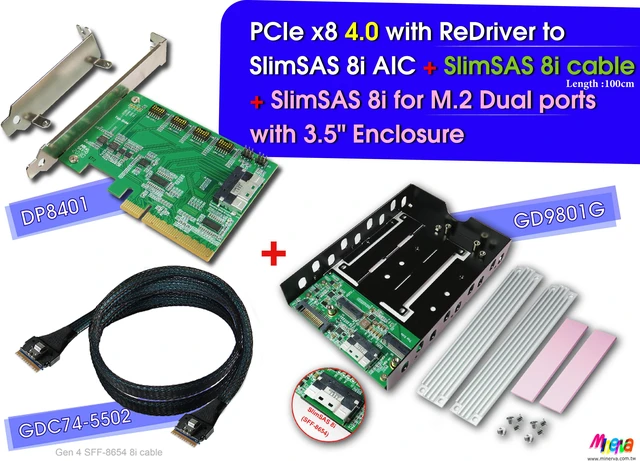

PCIe x8 Gen 4+ReDriver to SFF-8654 8i + SlimSAS 8i cable, 100cm + SFF-8654 8i to M.2 NVMe Dual port

#"DP8401"adapter:
Features:
* SlimSAS 8i (SFF-8654) to PCI Express 4.0 convert

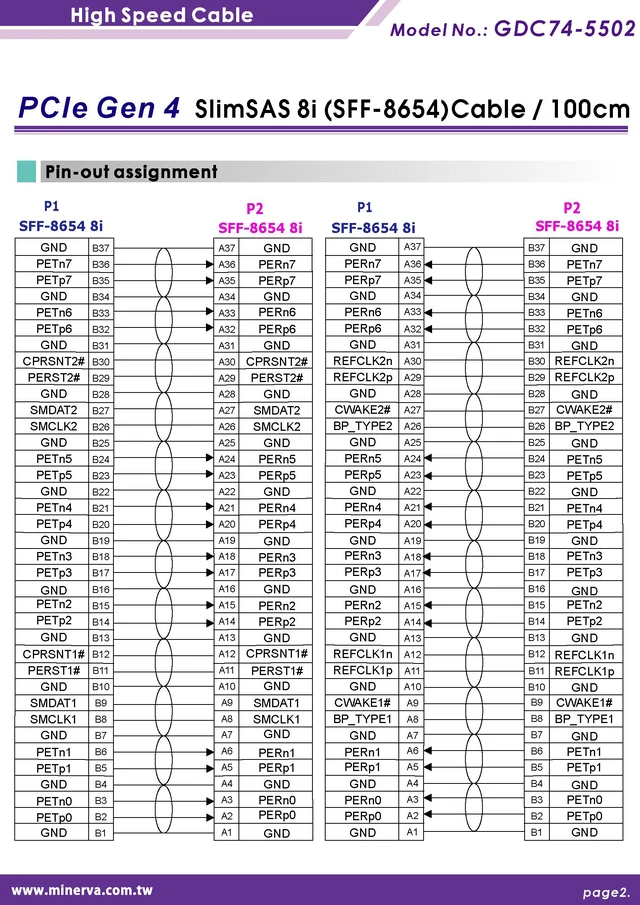

* Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev 1.1

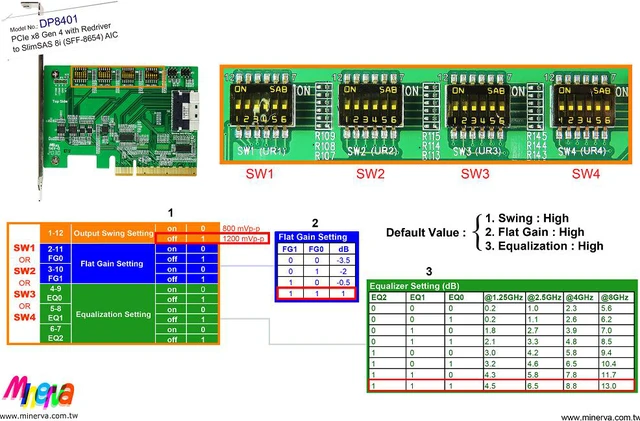

* Built-in PCIe ReDriver to extend PCIe Gen4, 16GT/s 8 Lanes differential pair signals
* Built-in PCIe 100MHz Clock buffer to drive longer trace length and longer length cable
* Built-in PCIe SMCLK, SMDAT bidirectional buffer repeater
* Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Built-in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* D1 Green LED on indicates AIC ready

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-8654 Specification Version 1.2

Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard


#Part Number: GDC74-5502

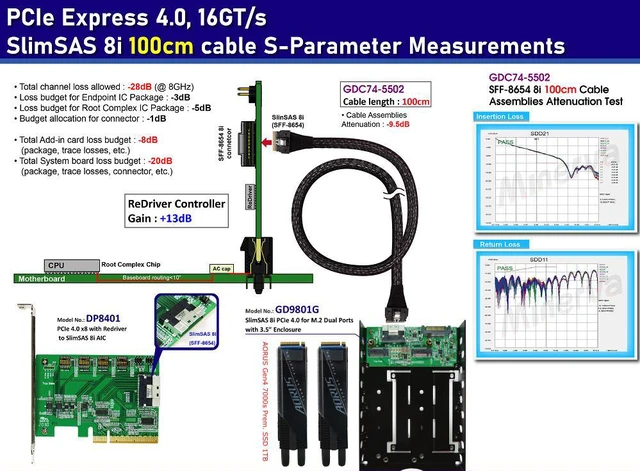

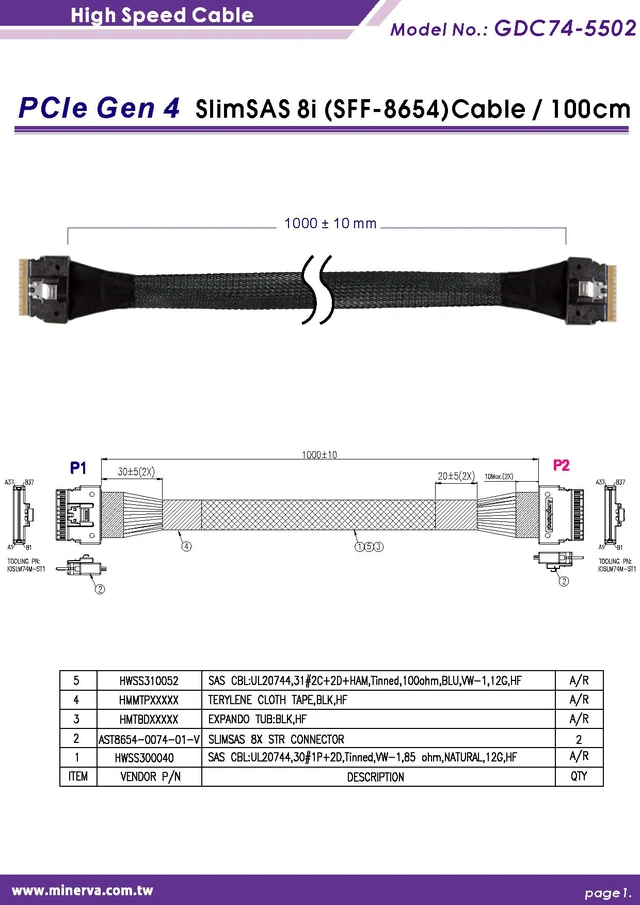

Product Description: PCIe Gen 4 SlimSAS 8i (SFF-8654) to SlimSAS 8i cable
Cable Length: 100CM


#GD9801G Adapter:

Features:
* M. 2 dual ports to SlimSAS 8i(SFF-8654) convert
* Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev 1.1
* Built-in two M. 2 M-key connector
* PWM synchronous buck converter Power for M. 2 dual ports SSD
* 8A maximum output current
* Over Current Protection
* Under Voltage Protection
* Under voltage lock out protection (UVLO) monitors
* Thermal shutdown protection
* ESD Human Body Mode (HBM) /2KV
* Built-in two 3.3V Hot Plug Power with eFuse protection for M. 2 dual ports
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* Supports M. 2 to PCIe CLKREQ#, WAKE#
* Supports M. 2 / 1.8V to PCIe/ 3.3V SMB_CLK, SMBDATA Level Shift
* Supports M. 2 / 1.8V to PCIe / 3.3V SMB_CLK, SMB_DATA isolated, repeater
* Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA
Tri-Mode Storage Adapters
* Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and
HBA Tri-Mode Storage Adapters
* LED5, LED6 Green LED on indicates M. 2 NVMe SSD power ready
* LED1, LED2 RED LED Blinking indicates M. 2 active status
