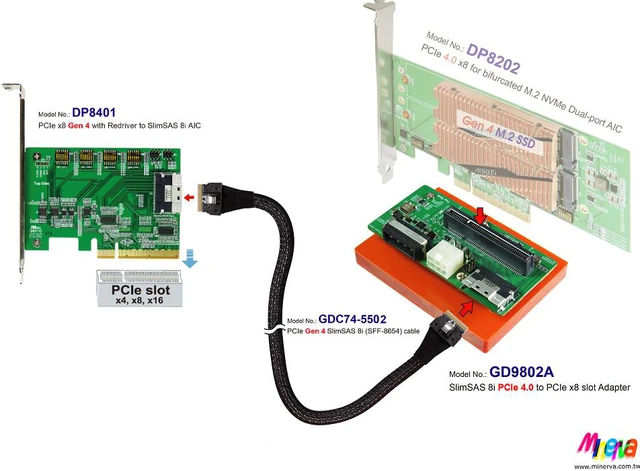

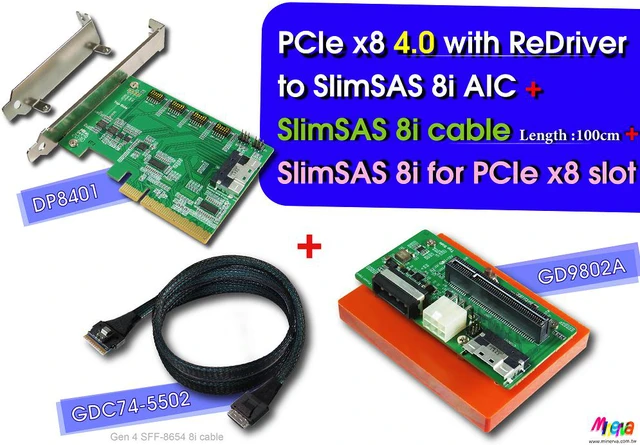

PCIe x8 Gen 4 with ReDriver to SlimSAS 8i +SlimSAS 8i cable,100cm+SlimSAS 8i to PCIe x8 Slot Gen 4 with Hot plug Power Protection

#"DP8401"adapter :
Features :
* SlimSAS 8i (SFF-8654) to PCI Express 4.0 convert
* Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev1.1

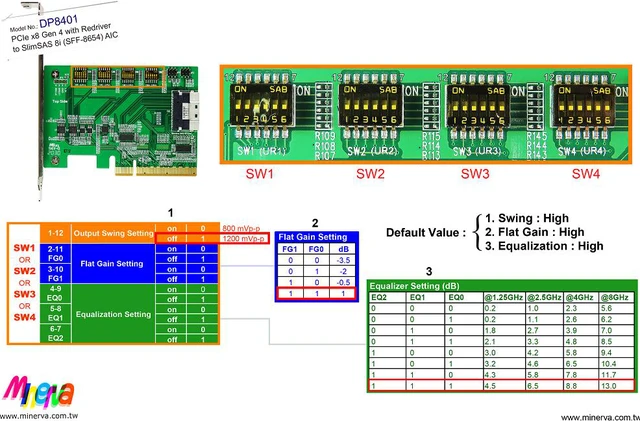

* Built-in PCIe ReDriver to extend PCIe Gen4, 16GT/s 8 Lanes differential pair signals
* Built-in PCIe 100MHz Clock buffer to drive longer trace length and longer length cable
* Built-in PCIe SMCLK, SMDAT bidirectional buffer repeater
* Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Built-in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* D1 Green LED on indicates AIC ready

Specifications:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-8654 Specification Version 1.2

Operating system support:
* Windows 7
* Windows 8 &8.1
* Windows 10
* UEFI 2.3.1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA(Host Bus Adapter)
* Desktop PC/motherboard

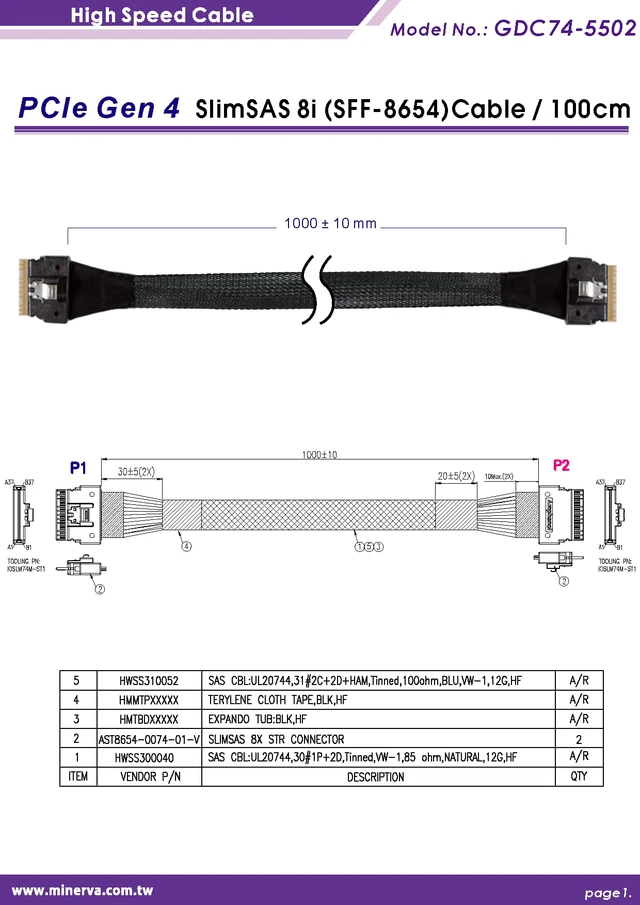

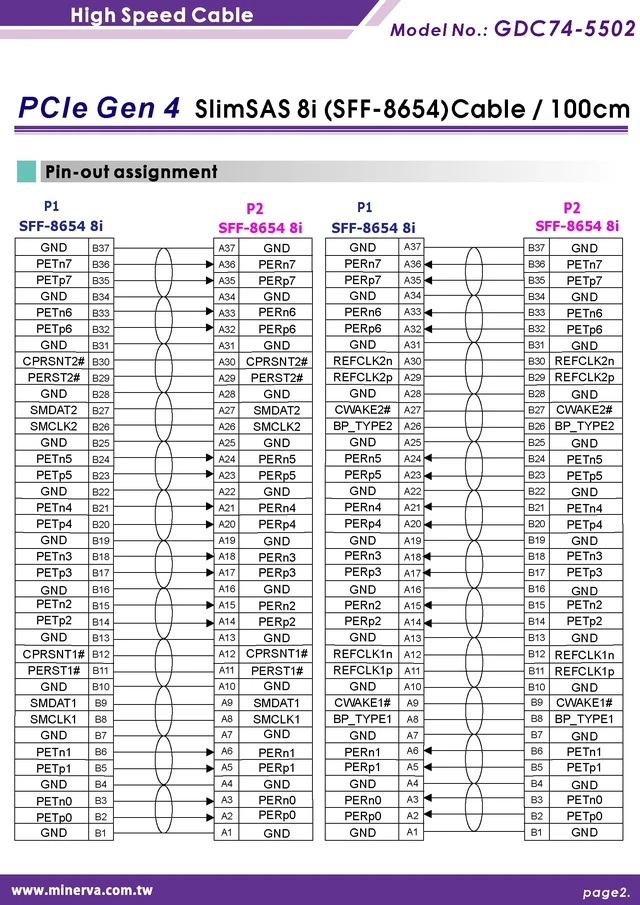

#Part Number : GDC74-5502

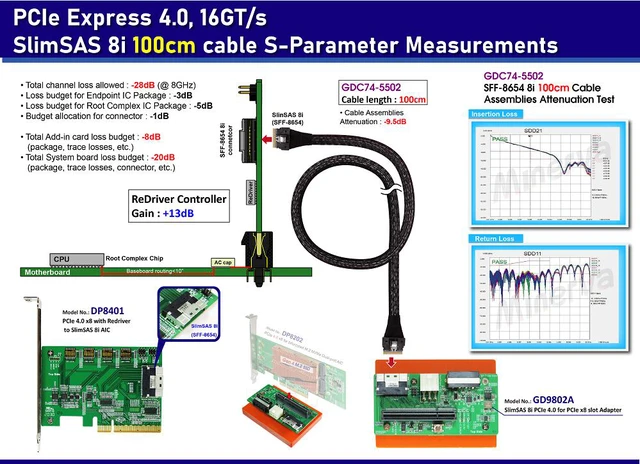

Product Description : PCIe Gen 4 SlimSAS 8i (SFF-8654) to SlimSAS 8i cable
Cable Length : 100CM


#"GD9802A"adapter :
Features :
* SlimSAS 8i(SFF-8654) to PCIe x8 convert
* Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev1.1
* Built-in PCIe x8 Slot
* Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* PWM synchronous 12V to 3.3V buck converter Power
* 4A maximum output current
* Over Current Protection
* Under Voltage Protection
* Under voltage lock out protection (UVLO) monitors
* Thermal shutdown protection
* ESD Human Body Mode(HBM)/2KV
* Built-in 3.3V Power Load Switch for PCIe +3.3V
* 12V to 3.3V LDO buck converter Power
* Built-in 3.3V Power Load Switch for PCIe 3.3Vaux
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer

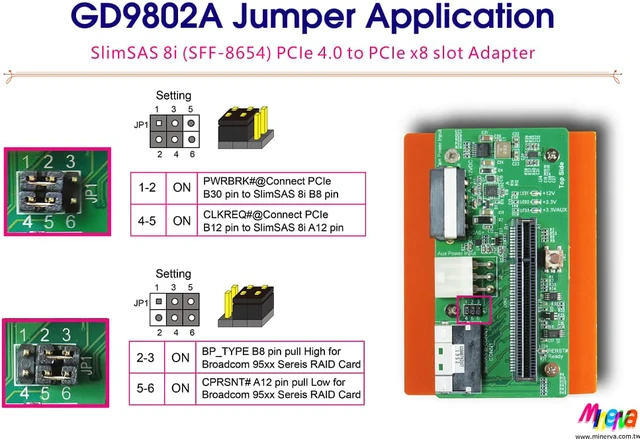

* Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* LED1 PCIe +12V power ready
* LED2 PCIe +3.3V power ready
* LED3 PCIe 3.3Vaux power ready

Specifications :
* Support PCI Express Base Specification Rev 4.0
* Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-8654 Rev1.2
* Compliant with SFF-9402 Rev1.1
* Support Broadcom Compliant with SFF-9402 Rev1.1
