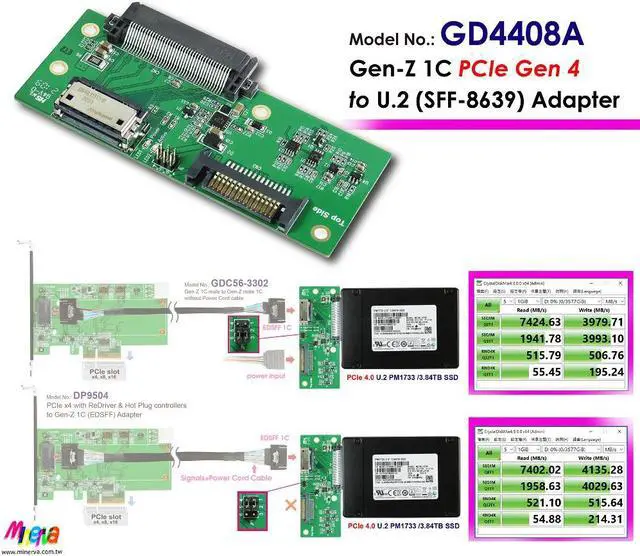

SFF-TA-1009, SFF-TA-1020 to U.2(SFF-8639) Adapter with Hot Swap Power Protection

#GD4408A
Adapter:

Features:
* U. 2(SFF-8639) to Gen-Z 1C convert
* Build-in SATA 15-pin power connector
* Build-in SFF-8639 connector,
contact finish: 30GOLD
* Build-in Gen-Z 1C connector,
contact finish: 30GOLD
* Built-in SMBus Bidirectional Hot Swappable Bus Buffers controller
* Built-in SMBus I/O Expander for PWRDIS control
* Built-in 12V Hot Plug Power controller with eFuse protection circuit
* Built-in 3.3V Power load switch protection circuit
* Supports CLKREQ# for Gen-Z 1C to U. 2 connection
* Supports WAKE# for Gen-Z 1C to U. 2 connection
* LED 1 Green LED Blinking indicates SSD power ready
* LED 2 Red LED on indicates SSD active status

Specifications

:
* Compliant with NVM Express 1.4 a
* Support PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R 3.0 _V 1.0
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1009 Specification Version 2.0

Applications:
* Servers
* HBA (Host Bus Adapter)
* Data Center
* Storage Racks
* Storage Controller
* Servers RAI
Ds (Redundant Array of Independent Disks)
* Routers
* Switchs
