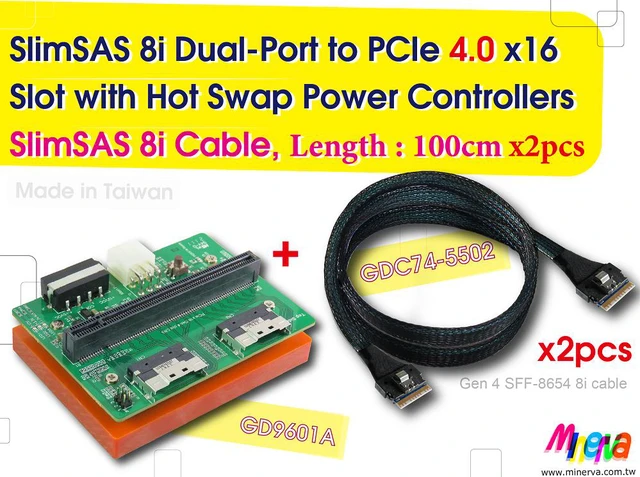

SFF-8654 8i Dual-Port PCIe 4.0 to PCIe x16 Slot with Hot plug Power Protection & SFF-8654 8i cable, 100cm x2pcs

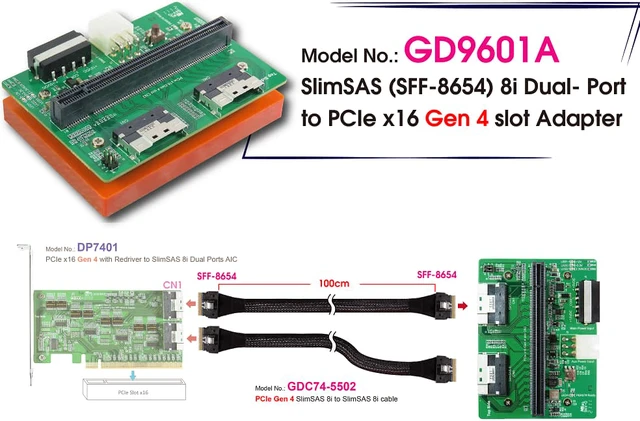

#GD9601A Adapter
Features :
* SlimSAS 8i(SFF-8654) to PCIe x16 convert
* Built-in SFF-8654 8i connector x2 with 15 microinches of gold on mating end.
* Built-in PCIe x16 with 15 microinches of gold on mating end Slot
* Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* PWM synchronous 12V to 3.3V buck converter Power
* 4A maximum output current
* Over Current Protection
* Under Voltage Protection
* Under voltage lock out protection (UVLO) monitors
* Thermal shutdown protection
* ESD Human Body Mode(HBM)/2KV
* Built-in 3.3V Power Load Switch for PCIe +3.3V
* 12V to 3.3V LDO buck converter Power for PCIe 3.3Vaux
* 500mA maximum output current
* Over Current Protection
* Thermal shutdown protection
* Built-in 3.3V Power Load Switch for PCIe 3.3Vaux
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer
* Built-in PCIe WAKE# Bus Buffer
* Built-in PCIe CLKREQ Bus Buffer

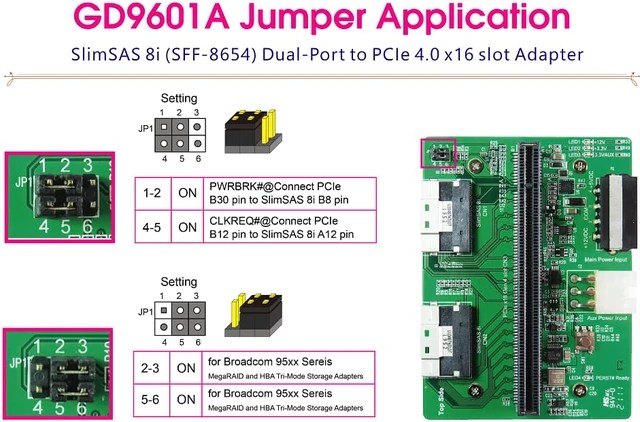

* Through SlimSAS B8 pin connect to PCIe x16 Slot B30 pin
* Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* LED1 PCIe +12V power ready
* LED2 PCIe +3.3V power ready
* LED3 PCIe 3.3Vaux power ready


Specifications :
* Support PCI Express Base Specification Rev 4.0
* Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-8654 Rev1.2
* Compliant with SFF-9402 Rev1.1
* Support Broadcom Compliant with SFF-9402 Rev1.1

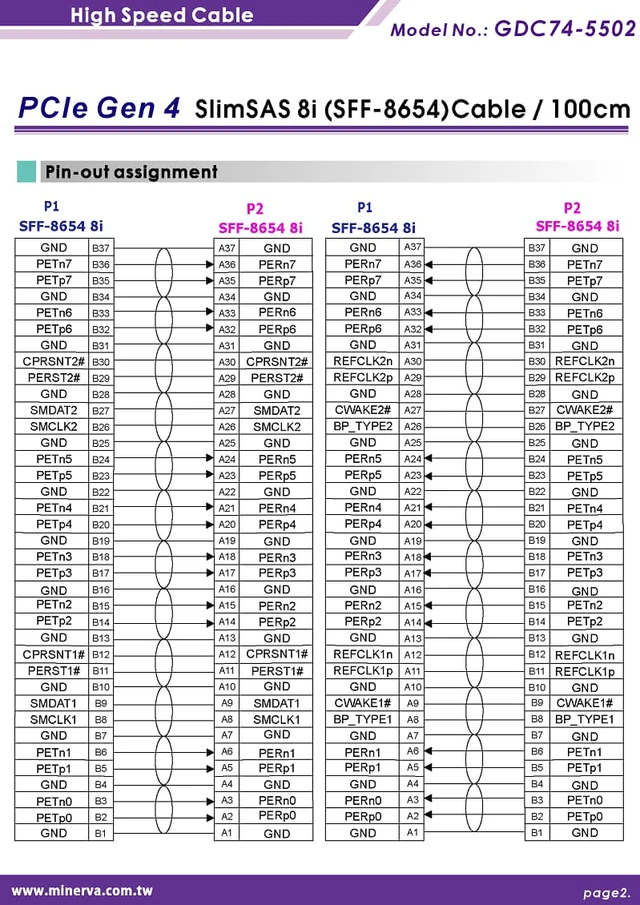

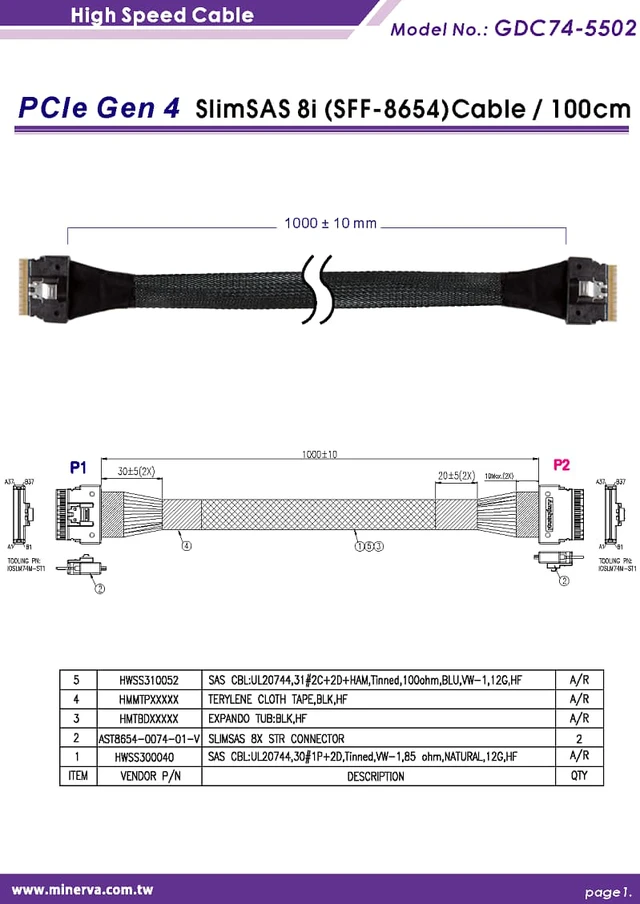

#Part Number : GDC74-5502
Product Description : PCIe Gen 4 SlimSAS 8i (SFF-8654) to SlimSAS 8i cable
Cable Length : 100CM
