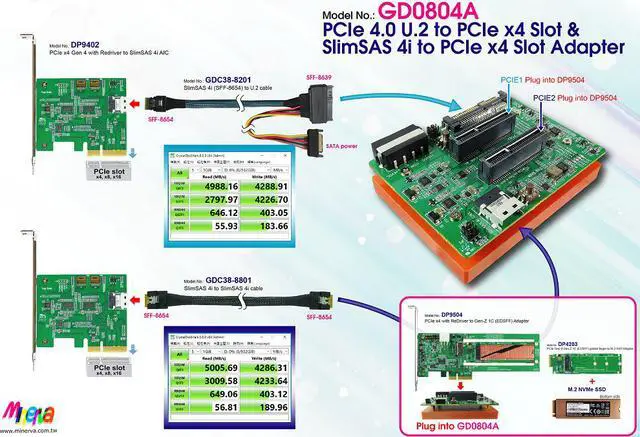

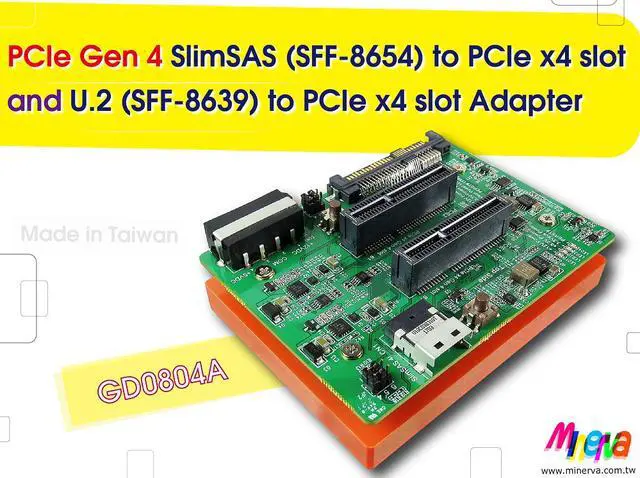

PCIe Gen4 SlimSAS 4i to PCIe x4 Slot and U.2 to PCIe x4 Slot Adapter with Hot Plug Power protection

#GD0804A Adapter:

Features:
* U.2(SFF-8639) to PCIe x4 convert
* SlimSAS 4i(SFF-8654) to PCIe x4 convert
* Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev1.1
* Built-in SFF-8654 4i connector, pin-out defined by SFF-9402 Rev1.1
* Built-in PCIe x4 Slot x2
* Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* PWM synchronous 12V to 3.3V buck converter Power
* 4A maximum output current
* Over Current Protection
* Under Voltage Protection
* Under voltage lock out protection (UVLO) monitors
* Thermal shutdown protection
* ESD Human Body Mode(HBM)/2KV
* Built-in 3.3V Power Load Switch for PCIe +3.3V
* 12V to 3.3V LDO buck converter Power
* Built-in 3.3V Power Load Switch for PCIe 3.3Vaux
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer
* Supports SlimSAS 4i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* Supports SlimSAS 4i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* LED1, LED5 PCIe +12V power ready
* LED2, LED6 PCIe +3.3V power ready
* LED3, LED7 PCIe 3.3Vaux power ready
* LED4, LED8 PCIe PERST#


Specifications :
* Support PCI Express Base Specification Rev 4.0
* Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-8654 Rev1.2
* Compliant with SFF-9402 Rev1.1
* Support Broadcom Compliant with SFF-9402 Rev1.1
