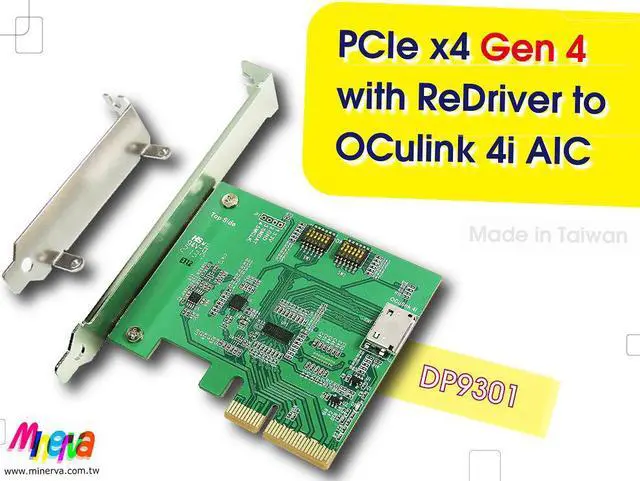

PCIe x4 Gen4 with Diodes to OCulink 4i

Features :
* Oculink4i (SFF-8612) to PCIe convert
* Built- in SFF-8612 connector, pin-out defined by SFF-9402 Rev1.1

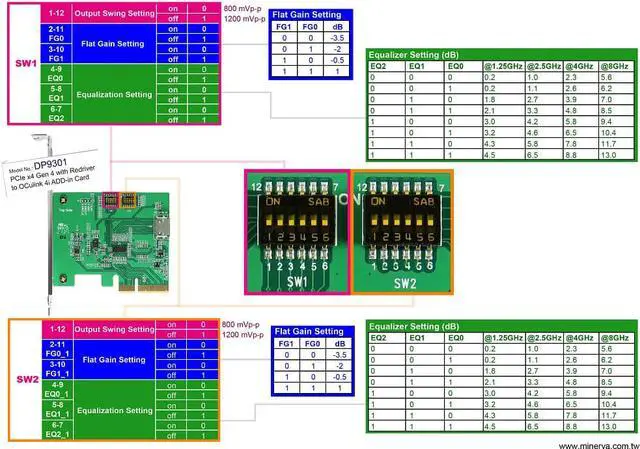

* Built- in PCIe ReDriver to extend PCIe Gen 4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in PCIe 3.3V SMCLK, SMDAT bidirectional buffer repeater
* Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* D3 Green LED on indicates Host Bus Adapter ready


Specifications:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-8612 Specification Version 3.5
* PCI_Express_OCuLink_1.0a

Operating system support:
* Windows 7
* Windows 8 &8.1
* Windows 10
* UEFI 2.3.1 or later

Applications :
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA(Host Bus Adapter)
* Desktop PC/motherboard
