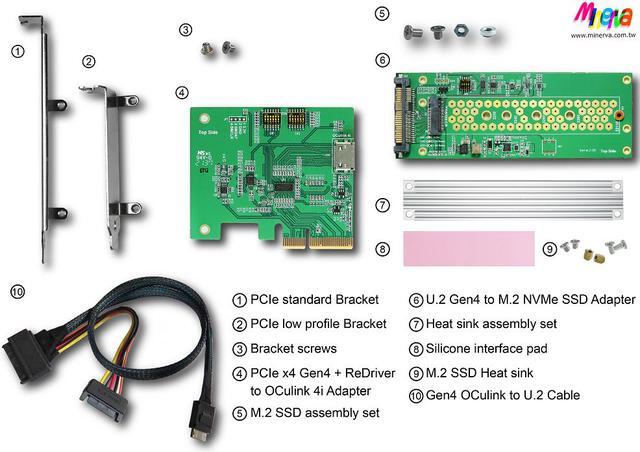

PCIe x4 Gen4 with ReDriver to OCulink 4i AIC & OCulink to U.2 Cable, 50cm & U.2 (SFF-8639) to M.2 SSD Adapter KIT

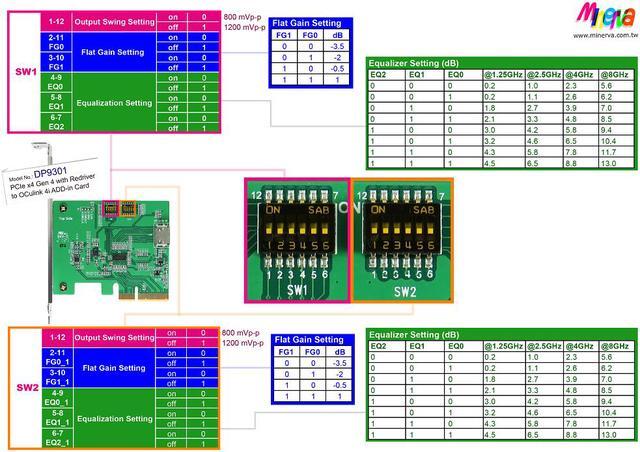

#DP9301 adapter :
Features :
* Oculink4i (SFF-8612) to PCIe convert
* Built- in SFF-8612 connector, pin-out defined by SFF-9402 Rev1.1
* Built- in PCIe ReDriver to extend PCIe Gen 4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in PCIe 3.3V SMCLK, SMDAT bidirectional buffer repeater
* Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* D3 Green LED on indicates Host Bus Adapter ready


Specifications:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-8612 Specification Version 3.5
* PCI_Express_OCuLink_1.0a

Operating system support:
* Windows 7
* Windows 8 &8.1
* Windows 10
* UEFI 2.3.1 or later

Applications :
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA(Host Bus Adapter)
* Desktop PC/motherboard

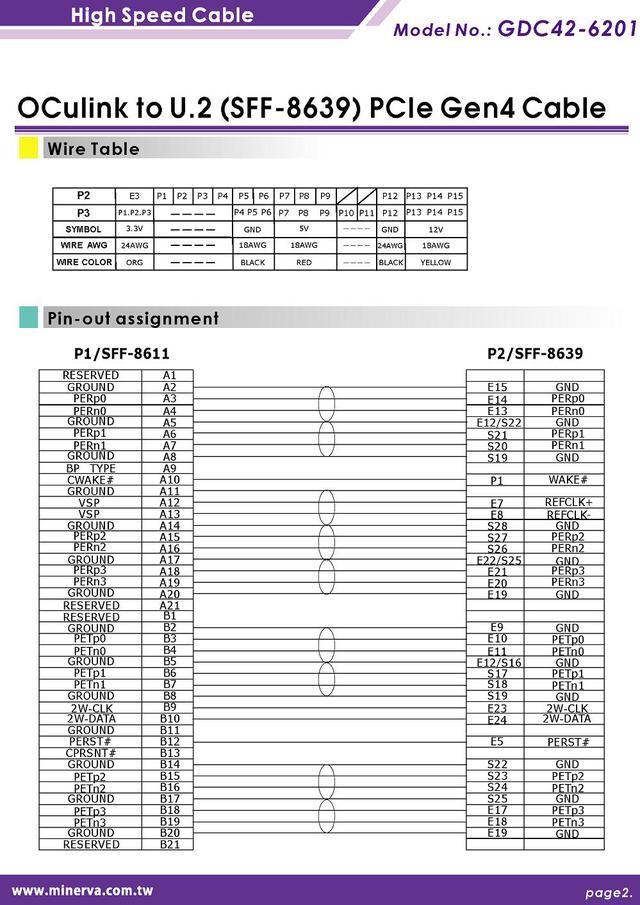

Part Number : GDC42-6201

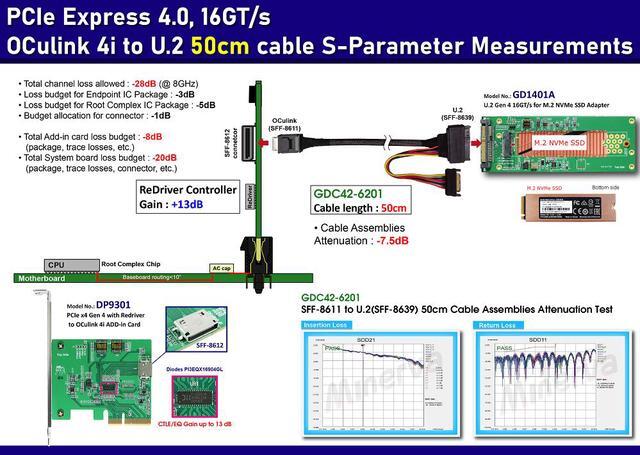

Product Description : PCIe Gen 4 16 GT/s OCulink 4i to U.2 Cable
Cable Length : 50CM

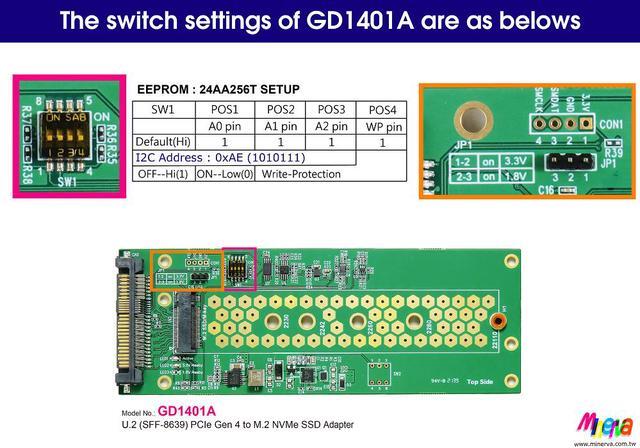

#GD1401A adapter :

Features :
* M.2 NVMe to U.2(SFF-8639) convert
* Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev1.1
* PWM 12V to 3.3V synchronous buck converter Power for M.2 NVMe SSD
? 5.5A maximum output current
? Output Discharge Control
? The output overcurrent protection(OCP)
? Uundervoltage lock out protection(UVLO) monitor
? Over/Under Vlotage Protection
? Thermal shutdown protection
? ESD HBM (Human Body Mode)/500V
* Built-in 3.3V Hotswap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for M.2 SSD protection
* Supports M.2 3.3V&1.8V supply
* Supports M.2 VIO_CFG Signal
* Supports M.2 PERST# Signal 3.3V AND 1.8V Switching
* Supports M.2 CLKREQ# Signal 3.3V AND 1.8V Switching
* Supports M.2 WAKE# Signal 3.3V AND 1.8V Switching
* Supports PWRDIS Signal from U.2 pin to M.2 pin
* Supports M.2 /1.8V to U.2/3.3V SMBCLK, SMBDATA Level Shift
* Supports M.2 /1.8V to U.2 /3.3V SMBCLK, SMBDATA isolated, repeater
* Built-in SMBUS EEPROM 64KB
* D1 Green LED on indicates M.2 NVMe SSD power ready
* D2 RED LED Blinking indicates M.2 active status

Specifications :
* Compliant with NVM Express 1.3a
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCI Express M.2 Specification Version 1.2
* Compliant with PCIe SFF-8639 Module Specification Rev 3.0
* Compliant with SFF-TA-1001 Rev1.1

Supports the following form factor M.2 SSD:
* Type 2242-D2-B-M: 42mm(L) x 22mm(W)
* Type 2260-D2-B-M: 60mm(L) x 22mm(W)
* Type 2280-D2-B-M: 80mm(L) x 22mm(W)
* Type 22110-D2-B-M: 110mm(L) x 22mm(W)
