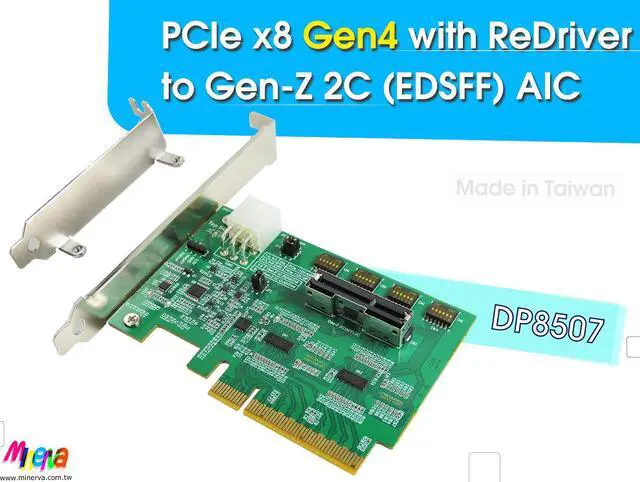

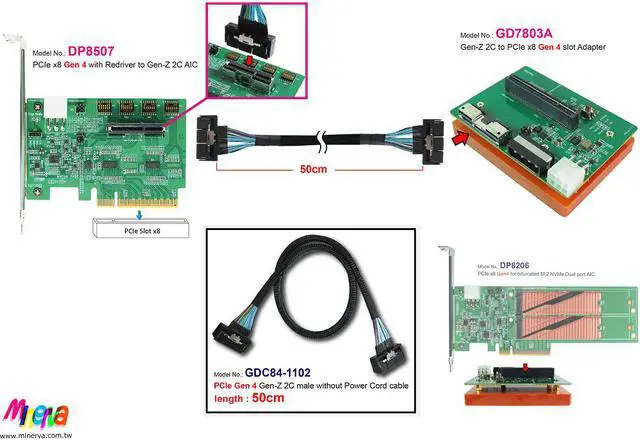

PCIe x8 Gen4 with ReDriver to SFF-TA-1002

#DP8507

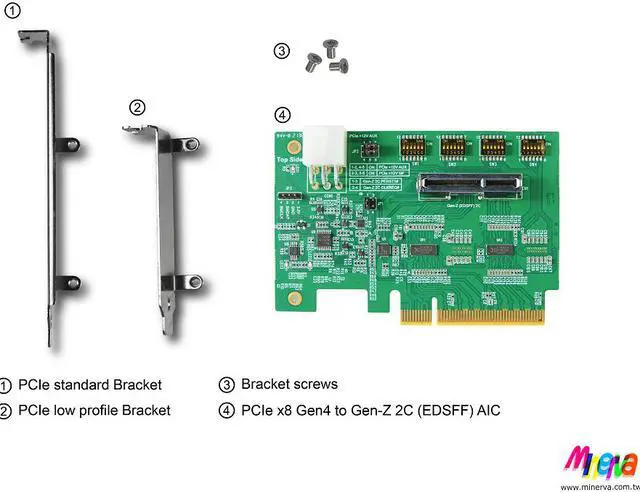

Features :
* Supports Server BMC management
* Supports Industrial Grade temerature range
* The card should be compliant with PCIe 4.0 CEM spec
* Built- in EDSFF 2C with latch connector

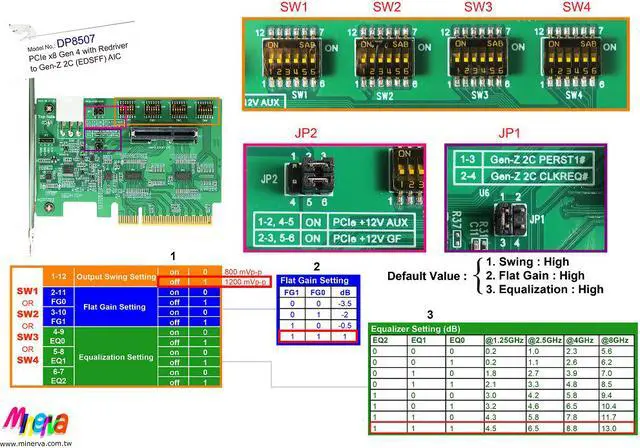

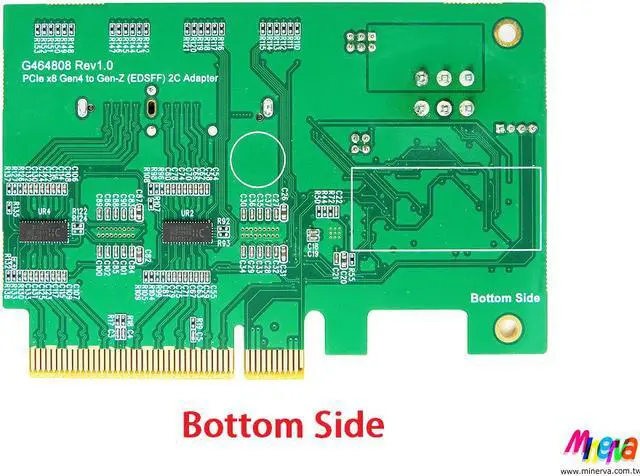

* Built- in PCIe ReDriver to extend PCIe Gen4, 8-Lane data width link signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable, Address: 0x6C(7 bits) for BMC management
* Built- in SMBus I/O Expander, Address: 0x21(7 bits) for Gen-Z 2C PWRDIS control
* Supports PCIe PERST0# for OOB(out of band) management to remote Gen-Z 2C Reset
* Supports PCIe PERST1# for OOB(out of band) management to remote Gen-Z 2C Reset
* Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and over longer cable - Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
* Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and longer over cable - Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
* Built- in PWRBRK# Bus Buffer with Open-Drain output to be used over longer trace lengths and longer over cable
* Built-in 12V Hot Plug Power with eFuse protection for Gen-Z 2C
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* Built-in 12V input with 400W TVS(TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
* Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32 m ohm
* Built-in 12V output with SCHOTTKY BARRIER Power Rectifier

Specifications :
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1006 Specification Version 1.4
* Compliant with SFF-TA-1009 Specification Version 3.0
* Compliant with SFF-TA-1020 Specification Version 1.0

Applications :
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA(Host Bus Adapter)
* Desktop PC/motherboard
