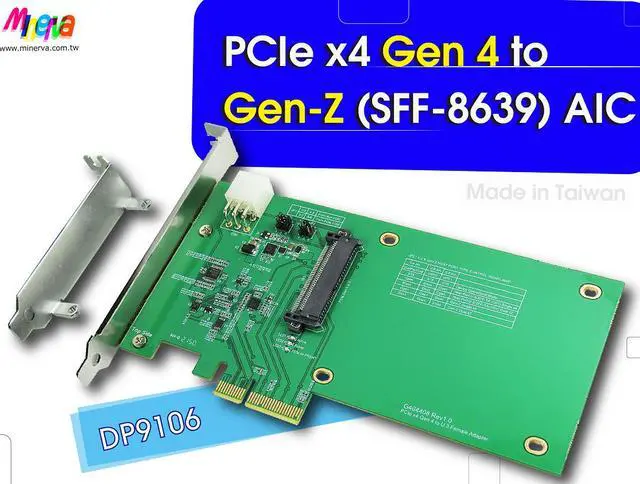

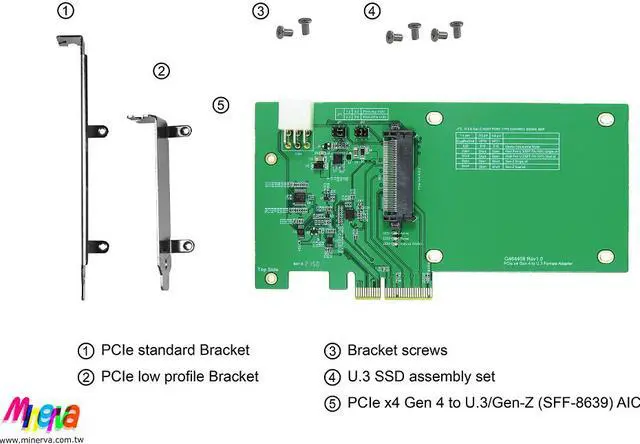

PCIe x4 Gen4 with Hot Plug controllers for SFF-TA-1001(EDSFF) SSD

Features :
* Supports Server BMC management
* Supports Industrial Grade temerature range
* SFF-8639 to PCI Express 4.0 x4 convert
* Built- in SFF-8639, 30u”connector
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable, Address: 0x6C(7 bits)
* Built- in SMBus Switch, Address: 0x71(7 bits)
* Built- in SMBus I/O Expander, Address: 0x41(7 bits) for Gen-Z 1C PWRDIS control
* Supports PCIe PERST# for OOB(out of band) management to remote Gen-Z 1C Reset
* Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and over longer cable - Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
* Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and longer over cable - Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

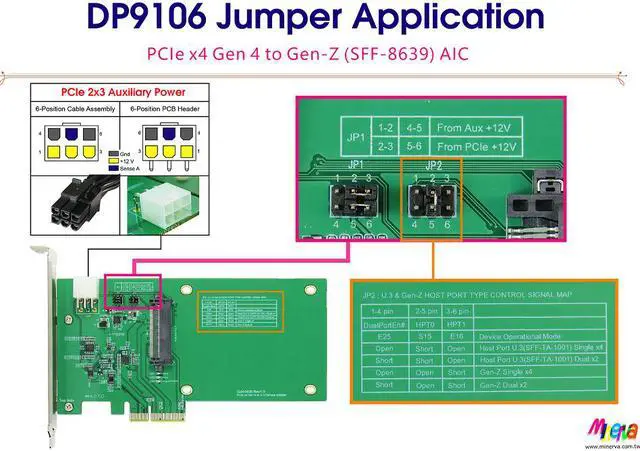

* Built-in 12V Hot Plug Power with eFuse protection for Gen-Z 1C
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* Built-in 12V input with 400W TVS(TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
* Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32 m ohm
* Built-in 12V output with SCHOTTKY BARRIER Power Rectifier


Specificationa:

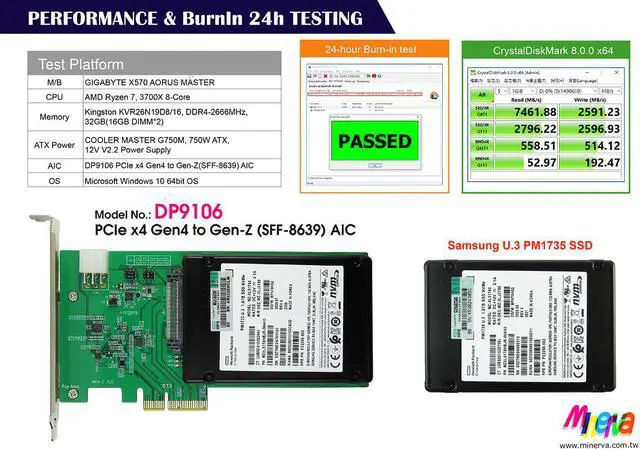

* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-TA-1001 Specification Version 1.1

Operating system support :
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3.1 or later

Applications
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA(Host Bus Adapter)
* Desktop PC/motherboard
