PCIex4 Gen 4 with ReDriver for EDSFF 1C AIC & Gen-Z 1C to U.2 Cable, 50cm & U.2 to M.2 NVMe SSD Adapter KIT

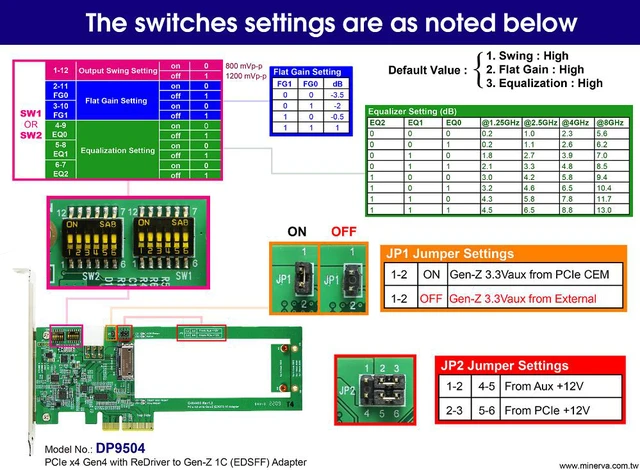

#DP9504 adapter :

Features :
* Gen-Z 1C (EDSFF) to PCI Express 4.0 x4 convert
* Built- in EDSFF 1C with latch connector
* Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBCLK, SMBDAT bidirectional buffer repeater
* Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF PWRDIS control
* Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF SMBRST# control
* Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable

Specifications :
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1009 Specification Version 2.0

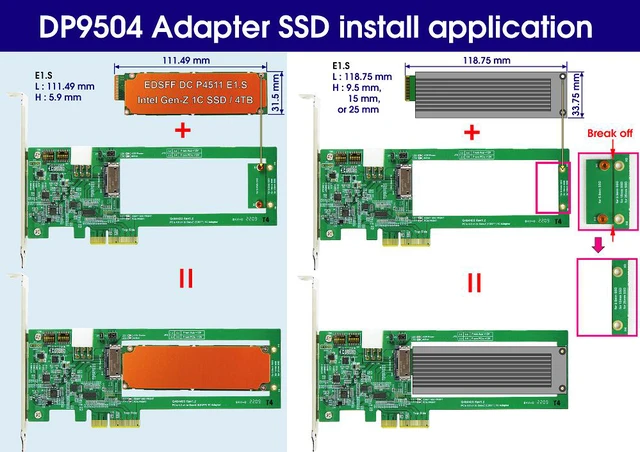

Supports the following form factor EDSFF 1C(Gen-Z) SSD :
* EDSFF 1C(Gen-Z) E1.S 5.9mm Height
* EDSFF 1C(Gen-Z) E1.S 9.5mm Height
* EDSFF 1C(Gen-Z) E1.S 15mm Height
* EDSFF 1C(Gen-Z) E1.S 25mm Height

Applications :
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA(Host Bus Adapter)
* Desktop PC/motherboard

Part Number : GDC56-3201
Product Description : Gen-Z (EDSFF) 1C Male to U.2 (SFF-8639) Cable
Cable Length : 50CM

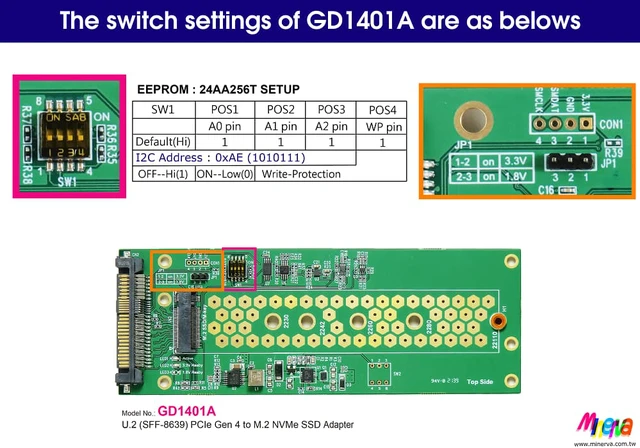

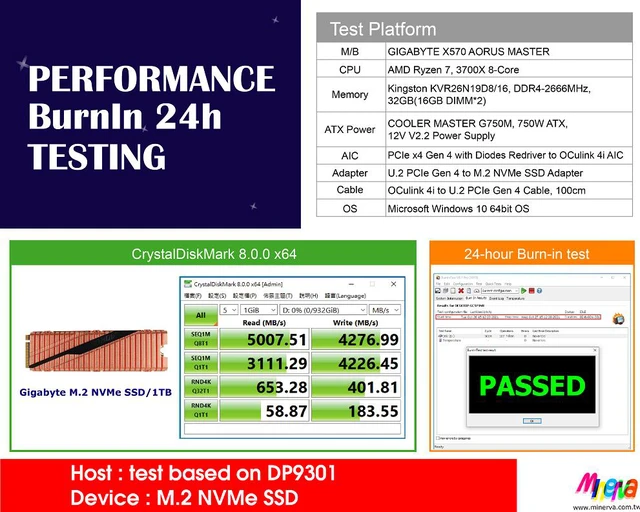

#GD1401A adapter :

Features :
* M.2 NVMe to U.2(SFF-8639) convert
* Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev1.1
* PWM 12V to 3.3V synchronous buck converter Power for M.2 NVMe SSD
? 5.5A maximum output current
? Output Discharge Control
? The output overcurrent protection(OCP)
? Uundervoltage lock out protection(UVLO) monitor
? Over/Under Vlotage Protection
? Thermal shutdown protection
? ESD HBM (Human Body Mode)/500V
* Built-in 3.3V Hotswap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for M.2 SSD protection
* Supports M.2 3.3V&1.8V supply
* Supports M.2 VIO_CFG Signal
* Supports M.2 PERST# Signal 3.3V AND 1.8V Switching
* Supports M.2 CLKREQ# Signal 3.3V AND 1.8V Switching
* Supports M.2 WAKE# Signal 3.3V AND 1.8V Switching
* Supports PWRDIS Signal from U.2 pin to M.2 pin
* Supports M.2 /1.8V to U.2/3.3V SMBCLK, SMBDATA Level Shift
* Supports M.2 /1.8V to U.2 /3.3V SMBCLK, SMBDATA isolated, repeater
* Built-in SMBUS EEPROM 64KB
* D1 Green LED on indicates M.2 NVMe SSD power ready
* D2 RED LED Blinking indicates M.2 active status

Specifications :
* Compliant with NVM Express 1.3a
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCI Express M.2 Specification Version 1.2
* Compliant with PCIe SFF-8639 Module Specification Rev 3.0
* Compliant with SFF-TA-1001 Rev1.1

Supports the following form factor M.2 SSD:
* Type 2230-D2-B-M: 30mm(L) x 22mm(W)
* Type 2242-D2-B-M: 42mm(L) x 22mm(W)
* Type 2260-D2-B-M: 60mm(L) x 22mm(W)
* Type 2280-D2-B-M: 80mm(L) x 22mm(W)
* Type 22110-D2-B-M: 110mm(L) x 22mm(W)
