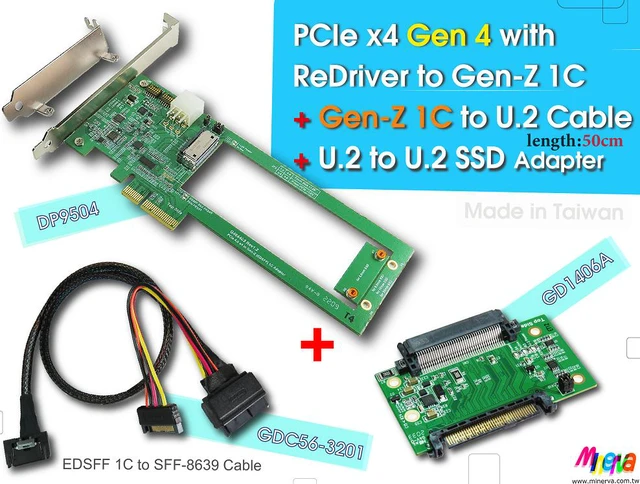

PCIex4 Gen 4 with ReDriver for Gen-Z 1C AIC & Gen-Z 1C to U.2 Cable, 50cm & U.2 (SFF-8639) Male PCIe Gen 4 to U.2 Female Adapter KIT

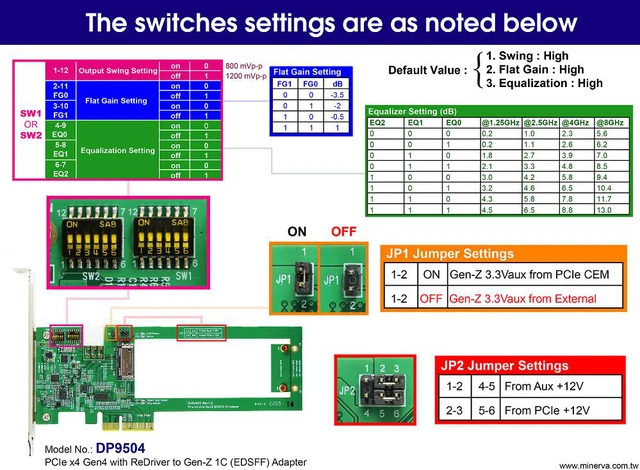

#DP9504 adapter :

Features :
* Gen-Z 1C (EDSFF) to PCI Express 4.0 x4 convert
* Built- in EDSFF 1C with latch connector
* Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBCLK, SMBDAT bidirectional buffer repeater
* Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF PWRDIS control
* Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF SMBRST# control
* Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable

Specifications :
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1009 Specification Version 2.0

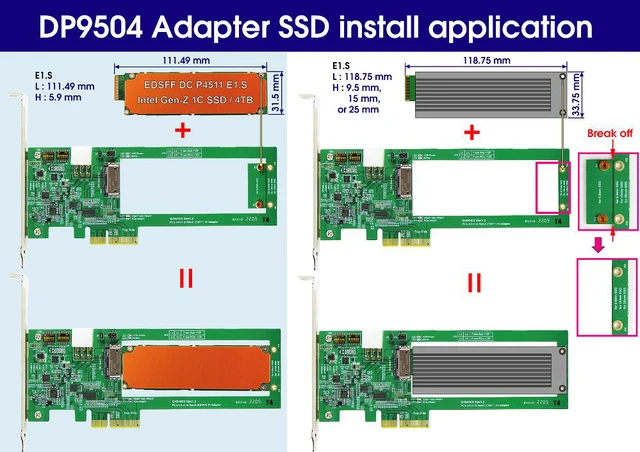

Supports the following form factor EDSFF 1C(Gen-Z) SSD :
* EDSFF 1C(Gen-Z) E1.S 5.9mm Height
* EDSFF 1C(Gen-Z) E1.S 9.5mm Height
* EDSFF 1C(Gen-Z) E1.S 15mm Height
* EDSFF 1C(Gen-Z) E1.S 25mm Height

Applications :
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA(Host Bus Adapter)
* Desktop PC/motherboard

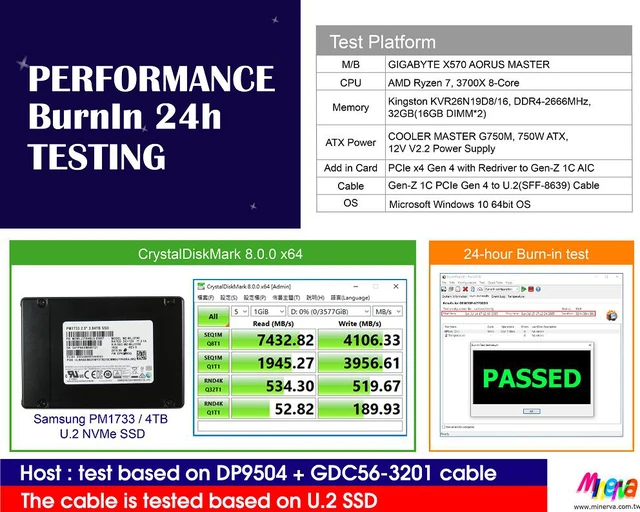

Part Number : GDC56-3201

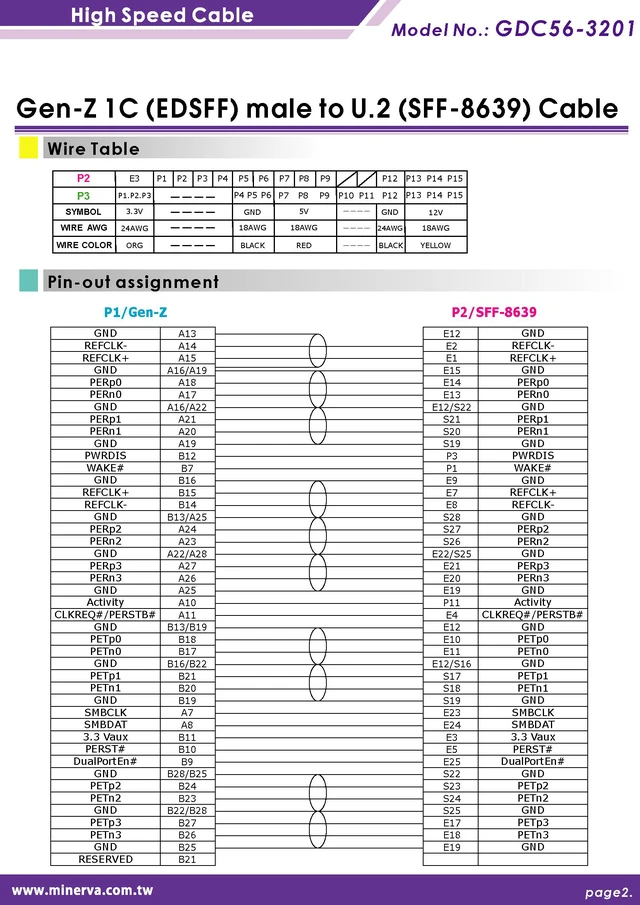

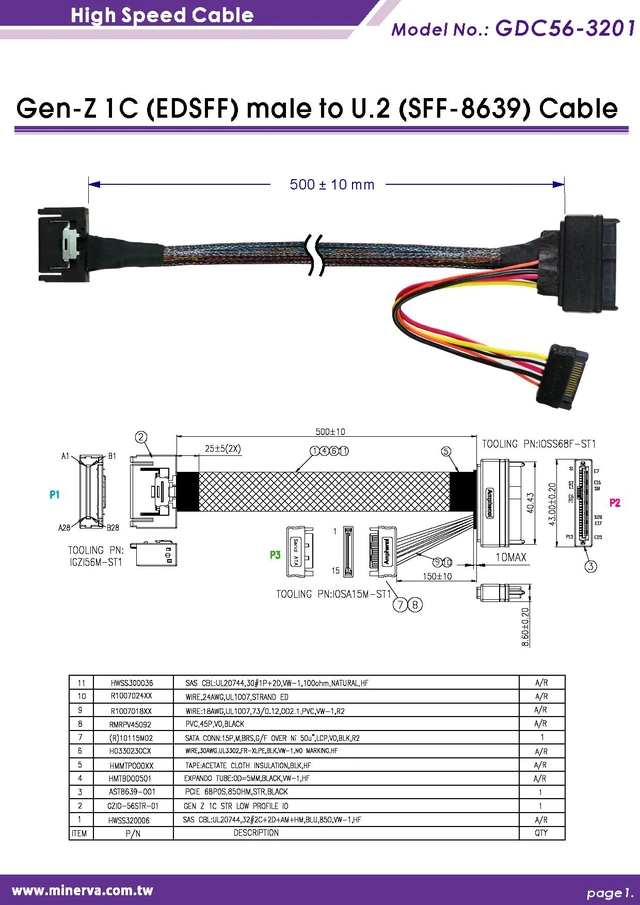

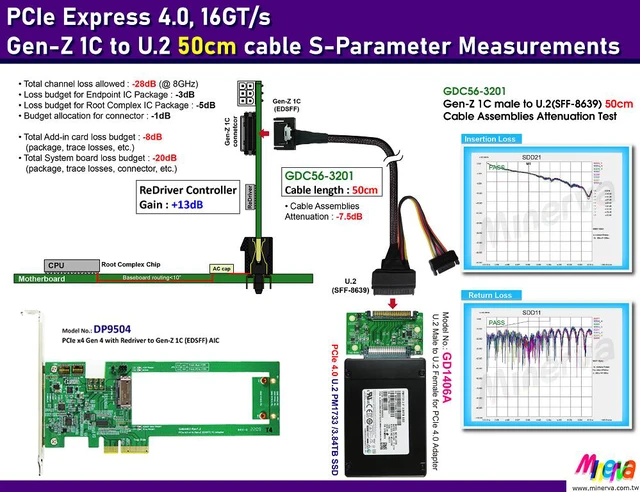

Product Description : Gen-Z (EDSFF) 1C Male to U.2 (SFF-8639) Cable
Cable Length : 50CM


#GD1406A Adapter

Features :
* Built-in SFF-8639 Male connector
* Built-in SFF-8639 Female connector
* Built-in power 12V Hot Plug Power protection IC, can support a maximun continuous current of 6.5A
* Built-in power 5V Load Switch with controlled turn on, can support a maximun continuous current of 5A
* Built-in power 3.3VAUX Load Switch with controlled turn on, can support a maximun continuous current of 500mA
* Supports CLKREQ#, WAKE#, PWRDIS
* Supports SMB_CLK, SMB_DATA
* LED1 Green LED on indicates U.2 SSD power ready
* LED2 Green LED on indicates SATA SSD power ready
* LED3 RED LED Blinking indicates SSD active status
