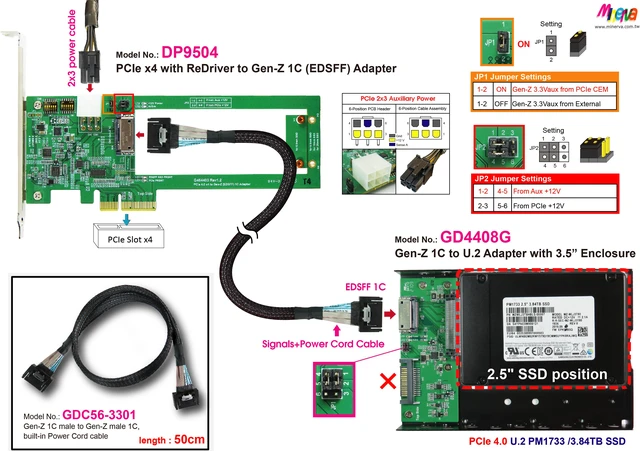

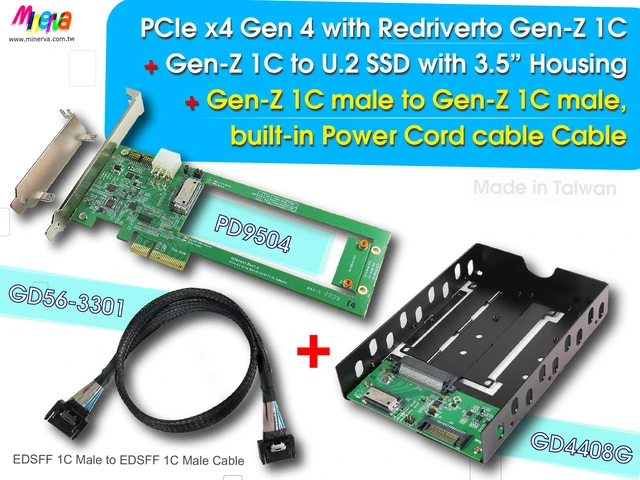

PCIe x4 Gen 4 with ReDriver for Gen-Z 1C AIC & Gen-Z 1C Male to Male built-in Power Cord Cable, 50cm & Gen-Z 1C to U.2 NVMe SSD with 3.5" Enclosure KIT

#DP9504 adapter :

Features :
* Gen-Z 1C (EDSFF) to PCI Express 4.0 x4 convert
* Built- in EDSFF 1C with latch connector
* Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBCLK, SMBDAT bidirectional buffer repeater
* Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF PWRDIS control
* Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF SMBRST# control
* Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable

Specifications :
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1009 Specification Version 2.0

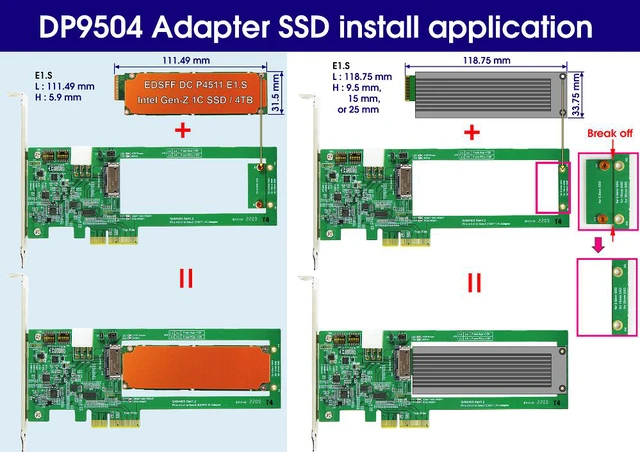

Supports the following form factor EDSFF 1C(Gen-Z) SSD :
* EDSFF 1C(Gen-Z) E1.S 5.9mm Height
* EDSFF 1C(Gen-Z) E1.S 9.5mm Height
* EDSFF 1C(Gen-Z) E1.S 15mm Height
* EDSFF 1C(Gen-Z) E1.S 25mm Height

Applications :
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA(Host Bus Adapter)
* Desktop PC/motherboard

Part Number : GDC56-3301

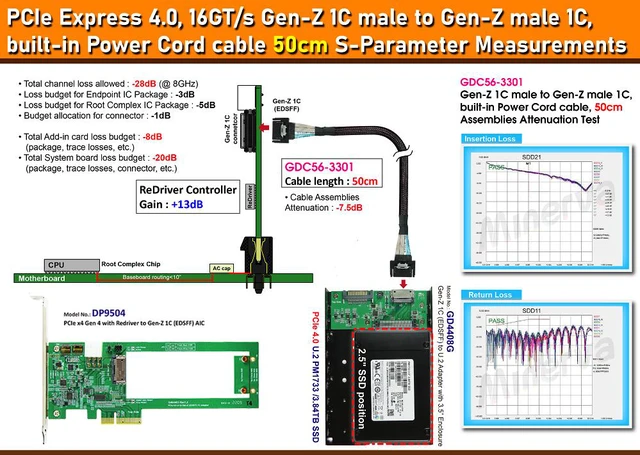

Product Description : Gen-Z 1C Male to Gen-Z 1C Male with Power Cord Cable
Cable Length : 50CM


#GD4408G Adapter:
Features:
* U.2(SFF-8639) to Gen-Z 1C convert
* Build-in SATA 15-pin power connector
* Build-in SFF-8639 connector, contact finish : 30”GOLD
* Build-in Gen-Z 1C connector, contact finish : 30”GOLD
* Built-in SMBus Bidirectional Hot Swappable Bus Buffers controller
* Built-in SMBus I/O Expander for PWRDIS control
* Built-in 12V Hot Plug Power controller with eFuse protection circuit
* Built-in 3.3V Power load switch protection circuit
* Supports CLKREQ# for Gen-Z 1C to U.2 connection
* Supports WAKE# for Gen-Z 1C to U.2 connection
* LED 1 Green LED Blinking indicates SSD power ready
* LED 2 Red LED on indicates SSD active status

Specifications :
* Compliant with NVM Express 1.4a
* Support PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R3.0_V1.0
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1009 Specification Version 2.0

Applications :
* Servers
* HBA(Host Bus Adapter)
* Data Center
* Storage Racks
* Storage Controller
* Servers RAIDs(Redundant Array of Independent Disks)
* Routers
* Switchs
