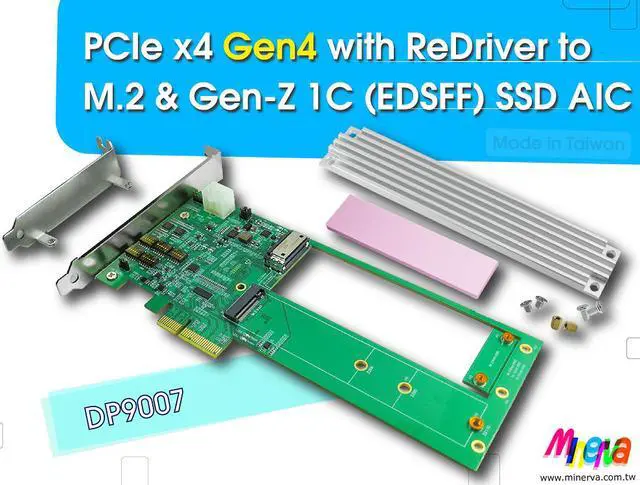

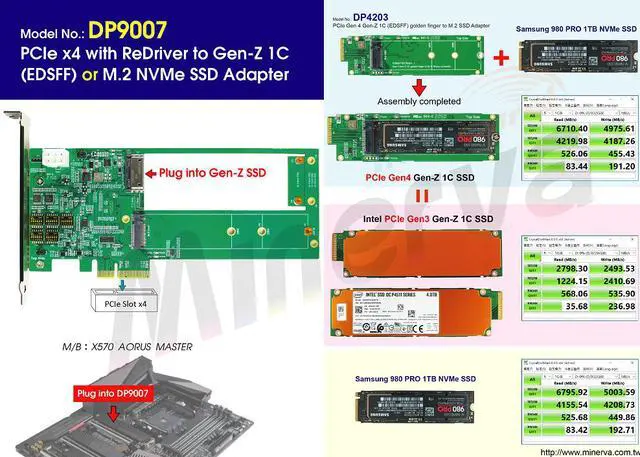

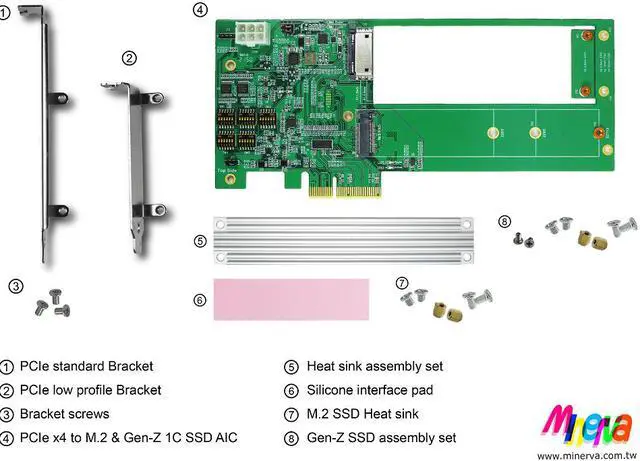

PCIe x4 Gen 4 with ReDriver to M.2 NVMe SSD & Gen-Z 1C SSD AIC

Features :
* Gen-Z 1C (EDSFF) or M.2 M-key to PCIe 4.0 x4 convert, two choose one
* Built- in EDSFF 1C with latch connector
* Built- in M.2 M-key connector
* Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals.

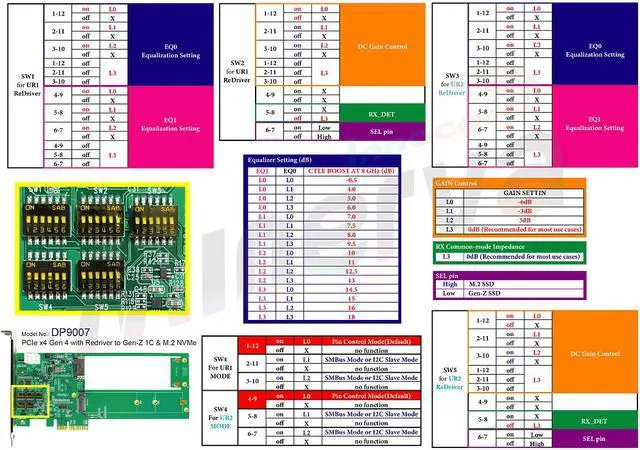

* The controller with its CTLE set to the maximum gain to 17 dB boost.
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable with SMBus(Address: 0x6C/7 bits) for BMC & IPMI control
* Built- in SMBus Switch with Reset Function(Address: 0x71/7 bits) for Gen-Z 1C & M.2 SMBus
* Built- in SMBus I/O Expander(Address: 0x21/7 bits)
* For EDSFF PWRDIS, SMBRST# control
* For M.2 PWRDIS control
* PCIe PERST# for OOB(Out Of Band) management to remote Gen-Z & M.2 Reset
* Control Gen-Z 12V enable or disable
* Control M.2 3.3V enable or disable
* Built- in PCIe PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in PCIe WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in PCIe CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable

Specifications:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1009 Specification Version 2.0
* Compliant with SFF-TA-1020 Specification Version 2.0
* Compliant with Gen-Z Scalable Connector Rev1.1
* Compliant with PCIe M.2 Specification Revision 3.0, Version 1.2

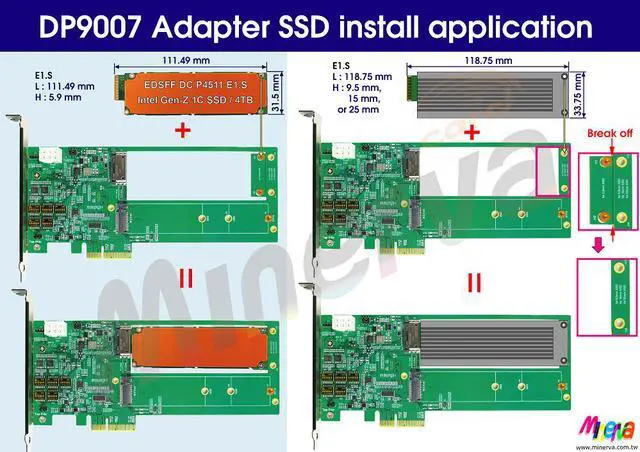

Supports the following form factor EDSFF 1C(Gen-Z) SSD:
* EDSFF 1C(Gen-Z) E1.S 5.9mm Height
* EDSFF 1C(Gen-Z) E1.S 9.5mm Height
* EDSFF 1C(Gen-Z) E1.S 15mm Height
* EDSFF 1C(Gen-Z) E1.S 25mm Height

Supports the following form factor M.2(NGFF) SSD:
* Type 2242-D2-B-M: 42mm(L) x 22mm(W)
* Type 2260-D2-B-M: 60mm(L) x 22mm(W)
* Type 2280-D2-B-M: 80mm(L) x 22mm(W)

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA(Host Bus Adapter)
* Desktop PC/motherboard
