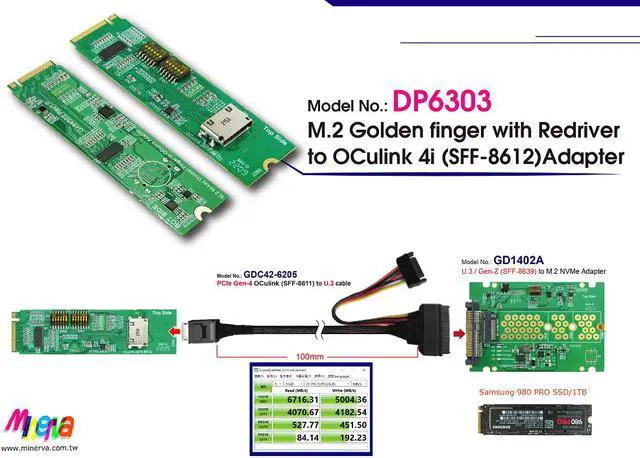

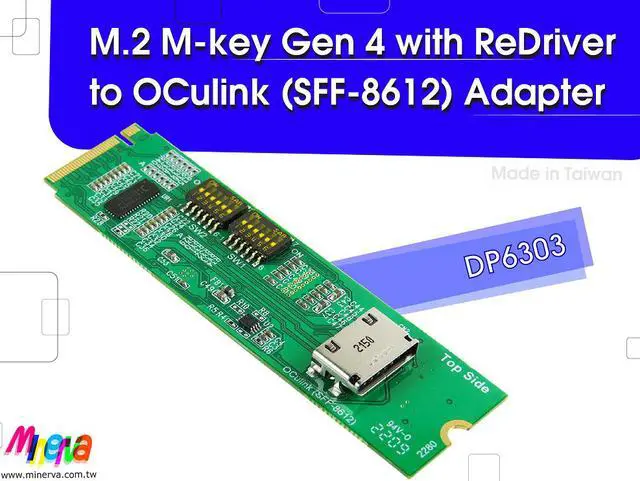

M.2 Golden Edge PCIe Gen 4 with ReDriver for OCulink 4i Adapter

Features :
* OCulink 4i (SFF-8612) to M.2 PCIe 4.0 convert
* Built- in SFF-8612 connector, pin-out defined by SFF-9402 Rev1.1
* Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBus bidirectional buffer repeater and Voltage level shift
* Built- in PERST# Bidirectional Voltage-Level Translator
* Built- in WAKE# Bidirectional Voltage-Level Translator
* Built- in CLKREQ# Bidirectional Voltage-Level Translator
* M.2 CLKREQ# signal is tied to SFFF-8612 B13 pin
* Built- in PWRDIS Bidirectional Voltage-Level Translator
* M.2 PWRDIS signal is tied to SFFF-8612 A9 pin


Specifications:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with PCI_Express_OCuLink_1.0a
* Compliant with SFF-9402 Specification Version 1.1
* PCI Express M.2 Spec Rev4.0 Ver1.0 11052020 NCB


Operating system support:
* Windows 7
* Windows 8 &8.1
* Windows 10
* UEFI 2.3.1 or later


Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA(Host Bus Adapter)
* Desktop PC/motherboard
