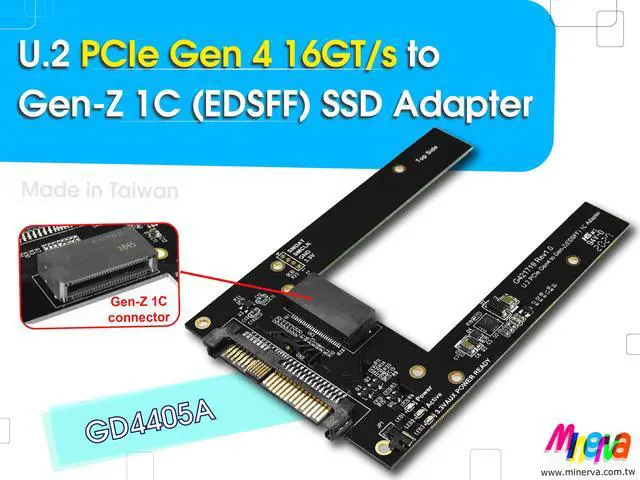

SFF-8639 PCIe 4.0 to EDSFF 1C+12V Hot plug Power Protection Adapter
- For Gen-Z 1C (EDSFF) SSD
- www.minerva.com.tw
- Designed / Made in Taiwan
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
* Built-in 12V Hot Plug Power IC with eFuse protection circuit
* Built-in U.3(SFF-8639) Male connector

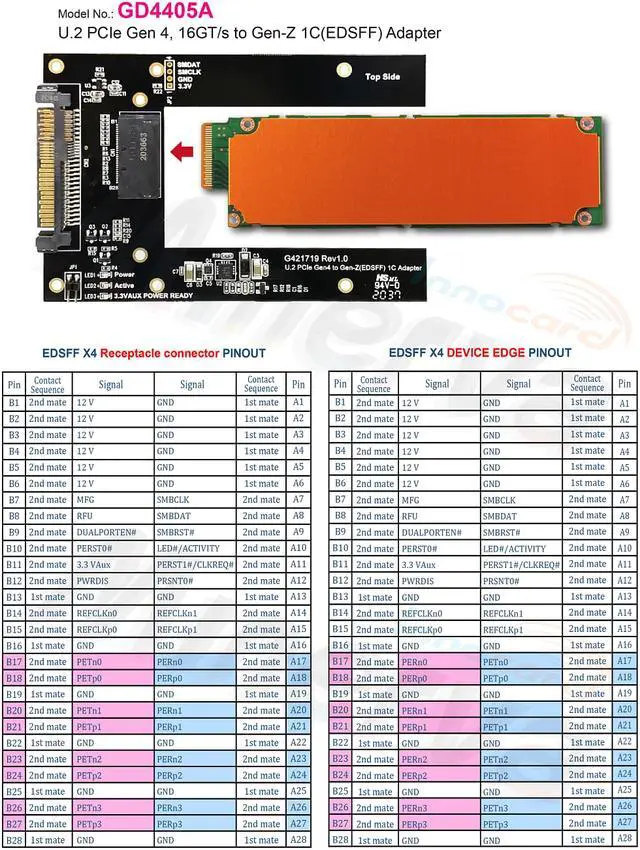

* Built-in EDSFF (Gen-Z) 1C Connector
* Supports SMB_CLK/ SMB_DATA
* Supports PWRDIS
* Supports DualPortEn
* LED1 GREEN indicates 12V Power Ready
* LED2 RED LED Blinking indicates Gen-Z SSD active status
* LED3 GREEN indicates PRSNT0# OK
* LED4 GREEN indicates 3.3Vaux Power Ready

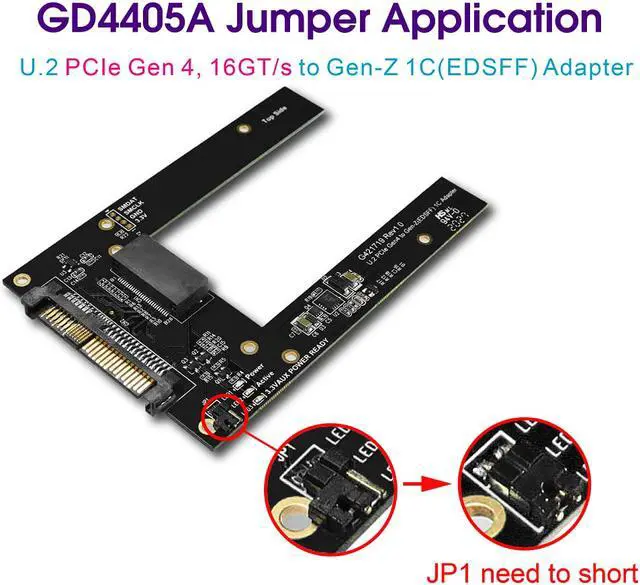

* JP1 pin header must be to setup on, when Host does not supply 3.3Vaux
Specifications:
* Compliant with NVM Express 1.2

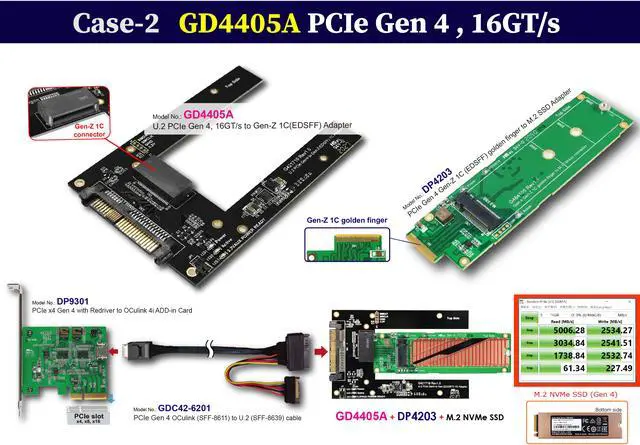

* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R3.0_V1.0
* Compliant with SFF-TA-1001 Rev1.1
* Compliant with SFF-TA-1002 Specification Multi Lane High Speed Connector Rev1.3
* Compliant with SFF-TA-1006 Enterprise and Datacenter 1U Short SSD Form Factor Rev 1.4
* Compliant with Gen-Z Scalable Connector Rev1.1
* Built-in 12V Hot Plug Power IC with eFuse protection circuit
* Built-in U.3(SFF-8639) Male connector
* Built-in EDSFF (Gen-Z) 1C Connector
* Supports SMB_CLK/ SMB_DATA
* Supports PWRDIS
* Supports DualPortEn
* LED1 GREEN indicates 12V Power Ready
* LED2 RED LED Blinking indicates Gen-Z SSD active status
* LED3 GREEN indicates PRSNT0# OK
* LED4 GREEN indicates 3.3Vaux Power Ready
* JP1 pin header must be to setup on, when Host does not supply 3.3Vaux
Specifications:
* Compliant with NVM Express 1.2
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R3.0_V1.0
* Compliant with SFF-TA-1001 Rev1.1
* Compliant with SFF-TA-1002 Specification Multi Lane High Speed Connector Rev1.3
* Compliant with SFF-TA-1006 Enterprise and Datacenter 1U Short SSD Form Factor Rev 1.4
* Compliant with Gen-Z Scalable Connector Rev1.1
