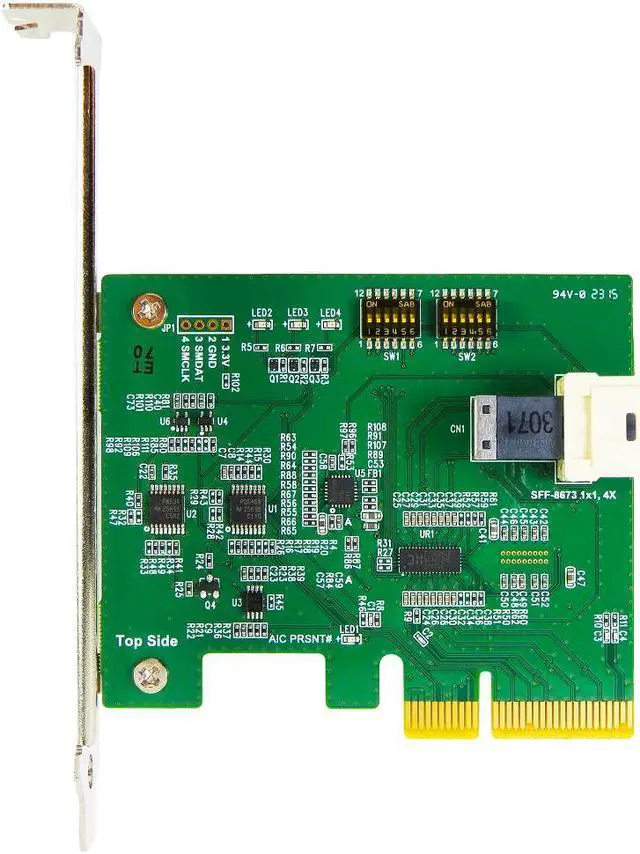

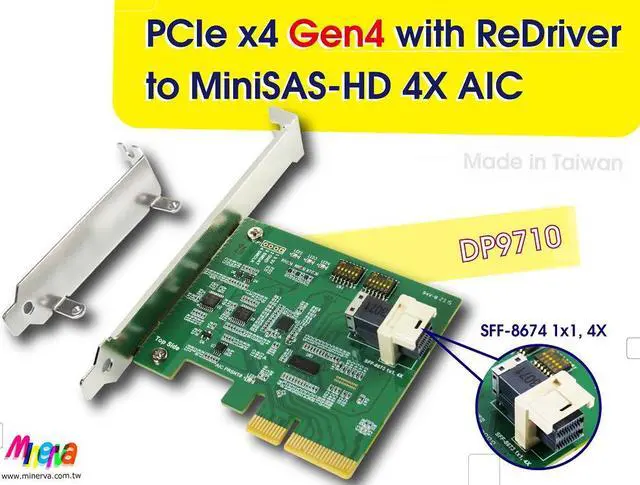

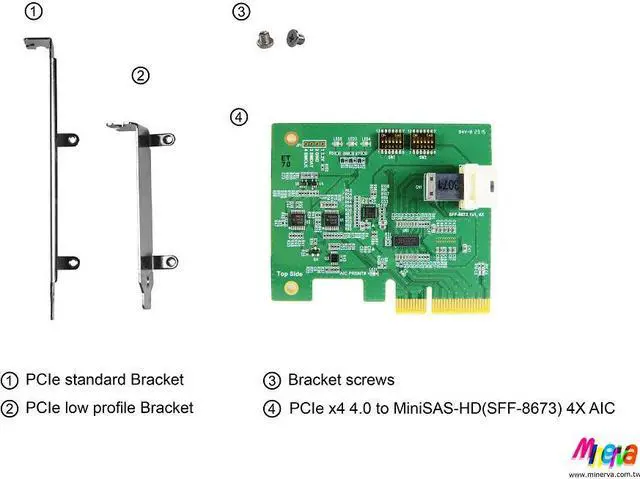

PCIe x4 Gen4 with ReDriver to MiniSAS-HD(SFF-8673) 4X AIC

Features:
* Supports Server BMC management
* Supports Industrial Grade temerature range

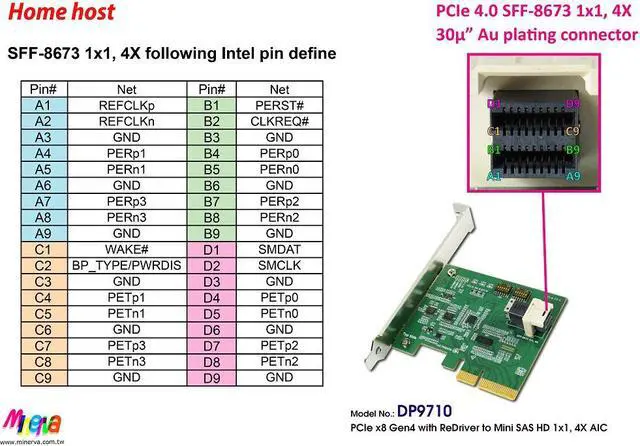

* Mini SAS HD 1x1, 4X to PCI Express x4 Gen4 convert
* Built- in SFF-8673, 30u connector

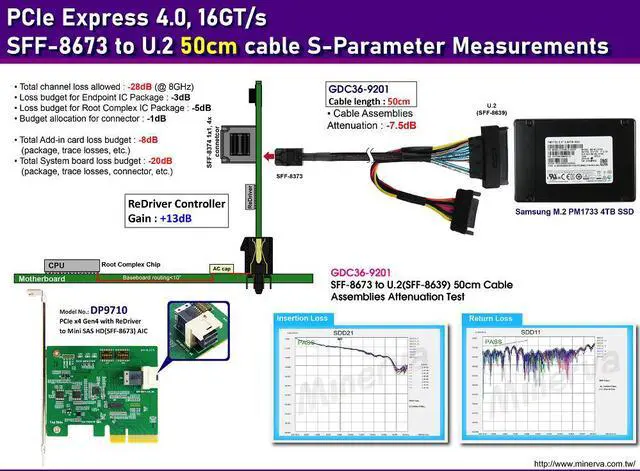

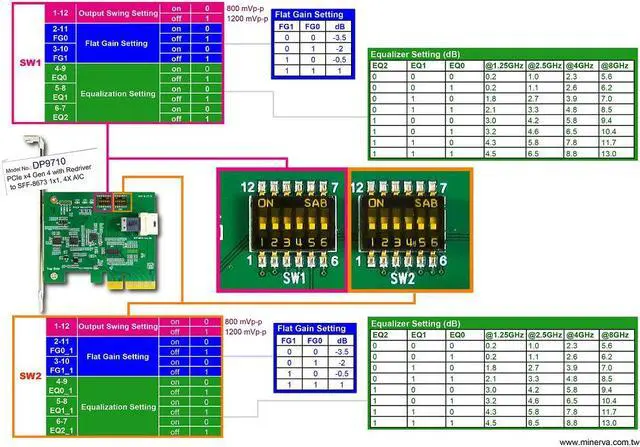

* Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width, and may provides programmable linear equalization, output swing and flat gain
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and more longer cable, Address: 0x6C (7 bits)
* Built- in SMBus Switch,
Address: 0x71 (7 bits)
* Built- in SMBus I/O Expander,
Address: 0x20 (7 bits) for Mini SAS HD PWRDIS control
* Supports PCIe PERST# for OOB (out of band) management to remote Mini SAS HD Reset
* Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used longer PCB trace lengths and longer cable
* Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used longer PCB trace lengths and longer cable
* LED1 Green LED on indicates AIC ready
* LED2 Red on to off indicates PCIe WAKE# signals(LED OFF-NORMAL)
* LED3 Red on to off indicates PCIe CLKREQ# signals(LED OFF-NORMAL)
* LED4 Red on to off indicates PCIe PERST# signals(LED OFF-NORMAL)

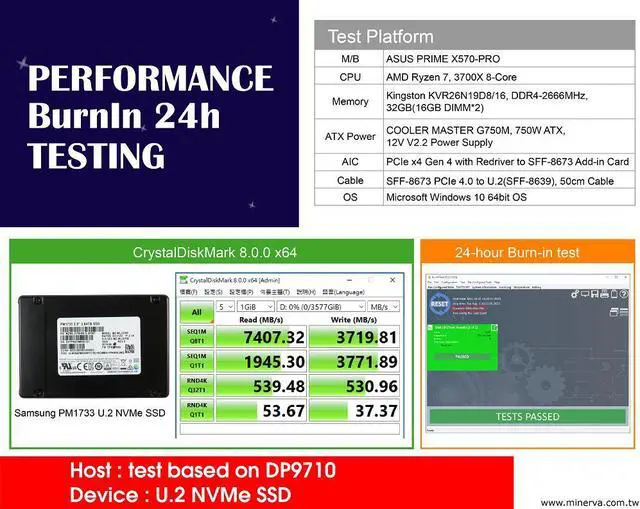

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-8613_R 3.5. 4_CB

Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard
