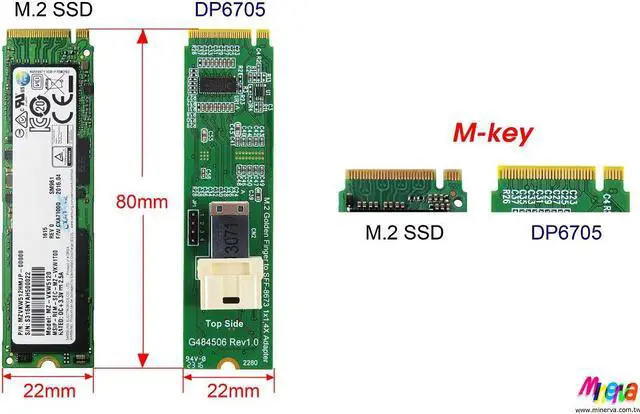

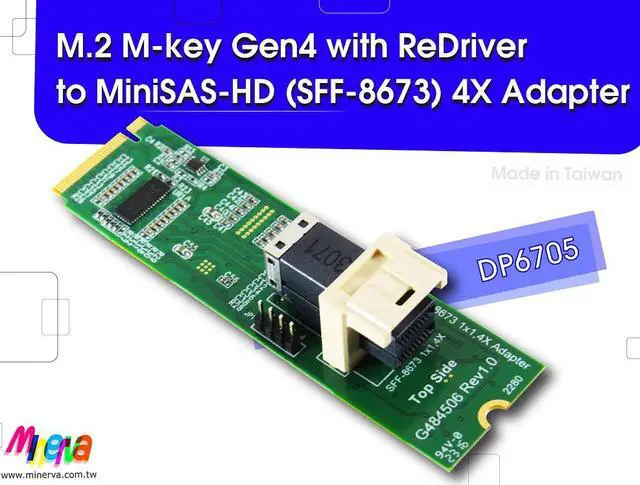

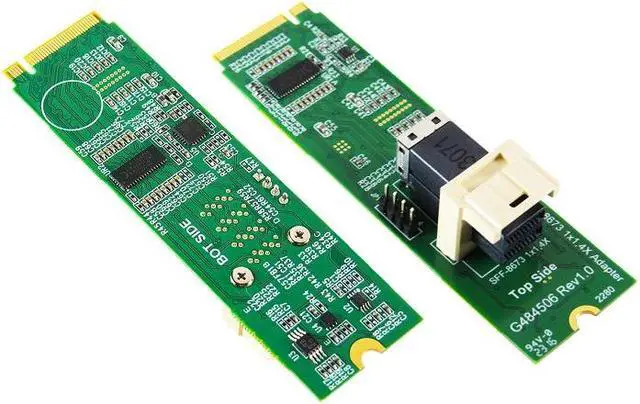

M.2 M-key PCIe Gen4 with ReDriver for MiniSAS-HD(SFF-8673) 4X

Features:
* SFF-8673 1x1, 4X to M. 2 PCIe 4.0 convert
* Built- in SFF-8673 connector with 30u( 0.76 um) min Au mating area plating

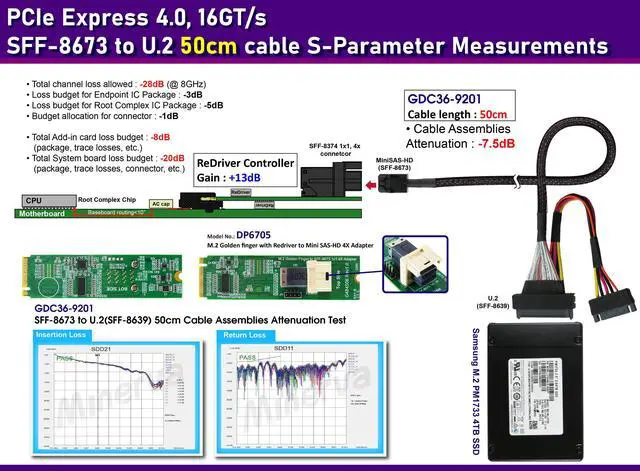

* Built- in PCIe ReDriver to extend PCIe 4.0, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBus repeater and Voltage level shift with Hot swappable level translating

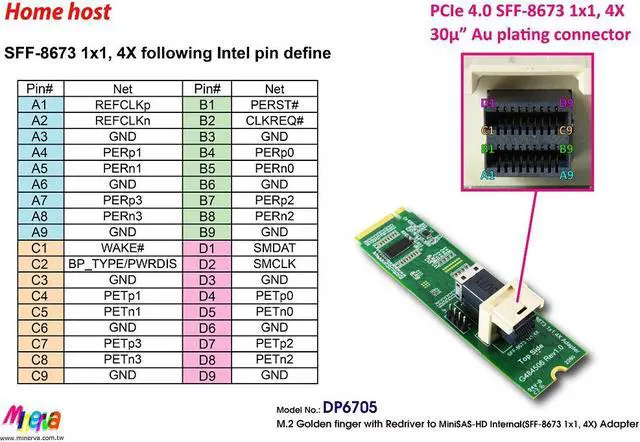

* Built- in PERST# Bidirectional Voltage-Level Translator, it is tied to SFF-8673 1x1, 4X B1 pin
* Built- in WAKE# Bidirectional Voltage-Level Translator, it is tied to SFF-8673 1x1, 4X C1 pin
* Built- in CLKREQ# Bidirectional Voltage-Level Translator, it is tied to SFF-8673 1x1, 4X B2 pin
* Built- in PWRDIS Bidirectional Voltage-Level Translator, it is tied to SFF-8673 1x1, 4X C2 pin

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-8613_R 3.5. 4_C
* Compliant with SFF-9402 Specification Version 1.1
* PCI Express M. 2 Spec Rev 4.0 Ver 1.0 11052020 NCB

Operating system support:
* Windows 8 & 8.1
* Windows 10
* Windows 11
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard
