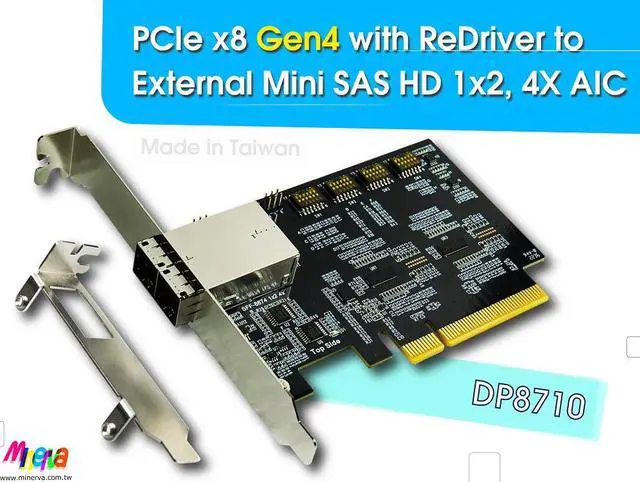

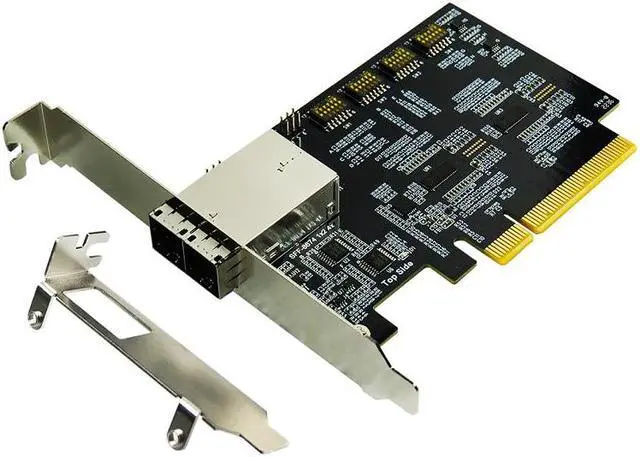

PCIe x8 Gen4 with ReDriver to SFF-8674 8x(Mini SAS HD), signals ESD protection

#"DP8710"adapter:
Features:
* External Mini SAS HD 1x2, 4X(SFF-8674) to PCIe x8 Gen4 convert
* Built-in SFF-8674 1x2, 4X connector

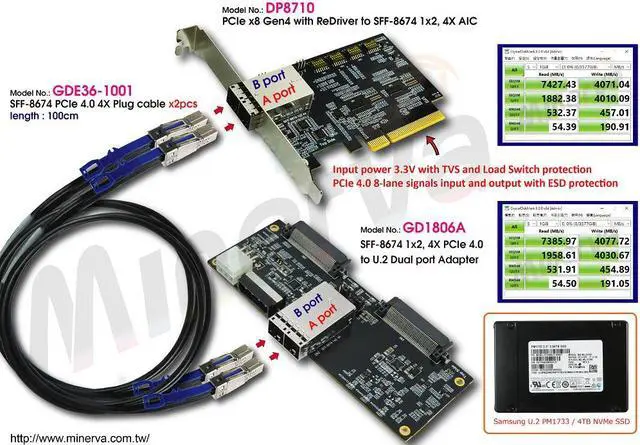

* Input power 3.3V with TVS and Load Switch protection
* PCIe 4.0 8-lane signals input and output with ESD protection

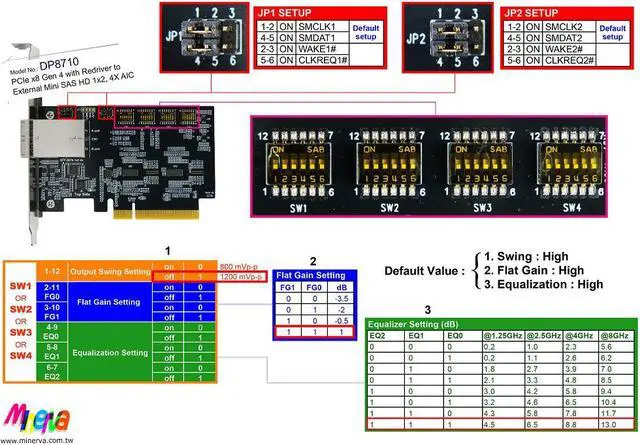

* Built-in ReDriver to extend PCIe 4.0, 16GT/s 8 lanes differential pair signals data link width, and may provides programmable linear equalization, output swing and flat gain
* The PCIe 8 lanes can be bifurcated into two x4 link width to support different system topologies

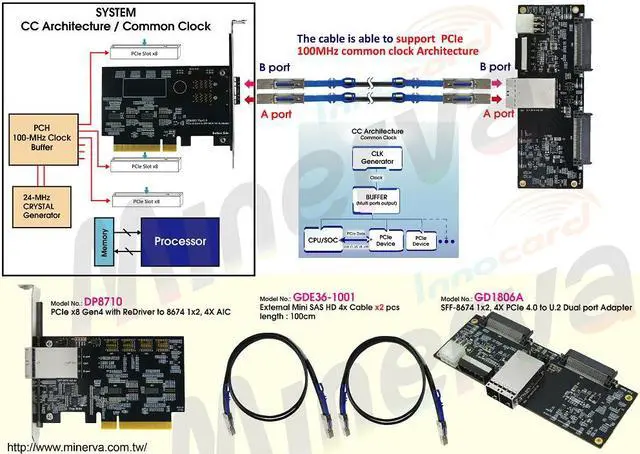

* Built-in PCIe 100MHz Clock buffer(Address: 0x6C) for SFF-8674 1x2, 4X to drive longer cable length.
It may be buffered and fanned out to the SFF-8674 1x2, 4X clock pin.
* Built-in SMBus Switch(Address: 0x70) with Reset Funtion for SFF-8674 1x2, 4X SMBus communication
* Built- in SMBus bidirectional buffer repeater
* Built-in SMBus I/O Expander(Address: 0x20) for OOB (out of band) management to remote SFF-8674 1x2, 4X Reset signals
* Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable lengths.
* Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable lengths.
* Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.
* D1 Green LED on indicates AIC ready

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* PCI_Express_External_Cabling_R 3.0 a_06042020_NCB
* SFF-TA-8614 R 3.4. 4_CB

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard
