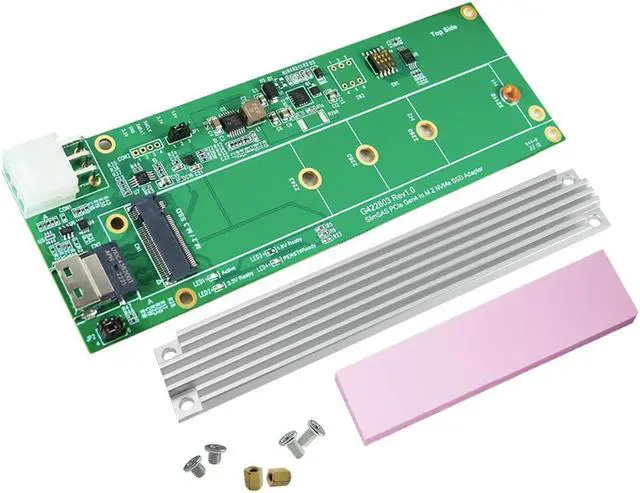

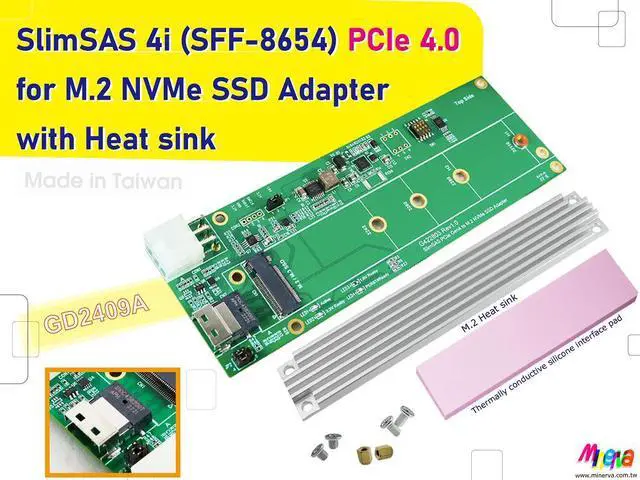

SlimSAS 4i(SFF-8654) to M.2 NVMe(22x110mm) SSD, Support Hot plug Power Protection

Features:
* M. 2 NVMe to SlimSAS 4i(SFF-8654) convert
* Built-in SFF-8654 connector, pin-out defined by SFF-9402 Rev 1.1
* Built-in PCIe 2x3 Auxiliary Power Connector for 12V, 6.5A MAX. curerent input
* 12V to 3.3V PWM synchronous buck converter Power for M. 2 NVMe SSD
5.5A maximum output current
Output Discharge Control
The output overcurrent protection (OCP)
Uundervoltage lock out protection (UVLO) monitor
Over/Under Voltage Protection
Thermal shutdown protection
ESD HBM (Human Body Mode) /500V
* Built-in 3.3V Hotswap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for M. 2 SSD protection
* Built-in 3.3V input with 400W TVS (TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
* Built-in 3.3V output with 30-V, N channel NexFET power MOSFET protection
* Built-in 3.3V output with SCHOTTKY BARRIER Power Rectifier
* Supports 3.3V & 1.8V power rail for sideband signals
* Supports M. 2 VIO_CFG Signal
* Supports M. 2 PERST# Signal 3.3V and 1.8V voltage level shift
* Supports M. 2 CLKREQ# Signal 3.3V and 1.8V voltage level shift
* Supports M. 2 WAKE# Signal 3.3V and 1.8V voltage level shift
* Supports PWRDIS Signal from SlimSAS 4i(SFF-8654) to M. 2 pin out
* Supports M. 2 / 1.8V to SlimSAS 4i / 3.3V SMBus Hot Swap, Level Shift
* Supports M. 2 / 1.8V to SlimSAS 4i / 3.3V SMBus isolated, repeater
* Built-in SMBus EEPROM 64KB
* LED1 RED Blinking indicates M. 2 active
* LED2 Green ON indicates 3.3V Power Ready
* LED4 Green OFF indicates PERST# Normal (Function intentionally inverted)

Specifications

:
* Compliant with NVM Express 1.3 a
* Support PCI Express Base Specification Rev 4.0
* Compliant with PCI Express M. 2 Specification Version 1.2
* Compliant with SFF-8654 Rev 1.2

Supports the following form factor M. 2 (NGFF)
SSD:
* Type 2242-D2-B-M: 42mm (L) x 22mm (W)
* Type 2260-D2-B-M: 60mm (L) x 22mm (W)
* Type 2280-D2-B-M: 80mm (L) x 22mm (W)
* Type 22110-D2-B-M: 110mm (L) x 22mm (W)
