PCIe x16 Gen4 Slot to PCIe x16 Slot with +12V, 3.3V, 3.3Vaux Hot Swap Power Controllers

Features:
* PCIe x16 to PCIe x16 signals extension
* Built-in ATX 24-pin Power supply input
* Built-in PCIe x16 with 15 microinches of gold on mating end Slot
* Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V for each slot
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* PWM synchronous 12V to 3.3V buck converter Power for each slot
* 4A maximum output current
* Over Current Protection
* Under Voltage Protection
* Under voltage lock out protection (UVLO) monitors
* Thermal shutdown protection
* ESD Human Body Mode (HBM) /2KV
* Built-in 3.3V Power Load Switch for PCIe + 3.3V
* 12V to 3.3V LDO buck converter Power for PCIe 3.3V aux for each slot
* 500mA maximum output current
* Over Current Protection
* Thermal shutdown protection
* Built-in 3.3V Power Load Switch for PCIe 3.3V aux
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer
* Built-in PCIe WAKE# Bidirectional Translator Bus Buffer
* Built-in PCIe CLKREQ# Bidirectional Translator Bus Buffer
* Built-in PCIe PWRBRK# Bus Buffer
* LED1 Green On indicates PCIe +12V power ready for PCIE1 Slot
* LED2 Green On indicates PCIe + 3.3V power ready for PCIE1 Slot
* LED3 Green On indicates PCIe 3.3V aux power ready for PCIE1 Slot
* LED4 Green On indicates PCIe +12V power ready for PCIE2 Slot
* LED5 Green On indicates PCIe + 3.3V power ready for PCIE2 Slot
* LED6 Green On indicates PCIe 3.3V aux power ready for PCIE2 Slot
* LED7 Red On to OFF indicates PERST# Normal (Function intentionally inverted)

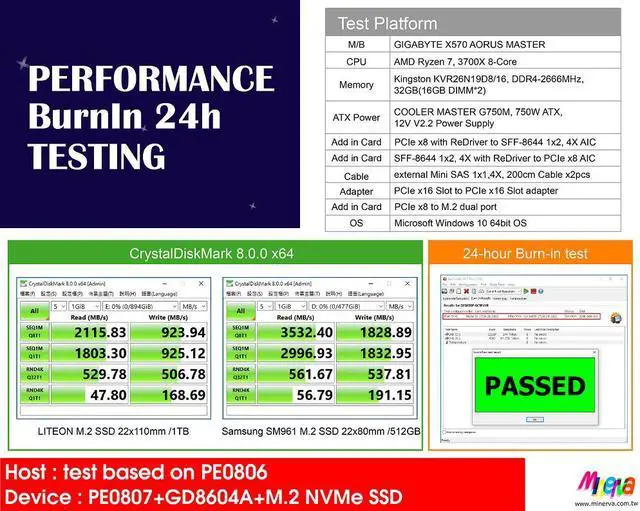

Specifications

:
* Support PCI Express Base Specification Rev 4.0
* Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-8654 Rev 1.2
* Compliant with SFF-9402 Rev 1.1
* Support Broadcom Compliant with SFF-9402 Rev 1.1
