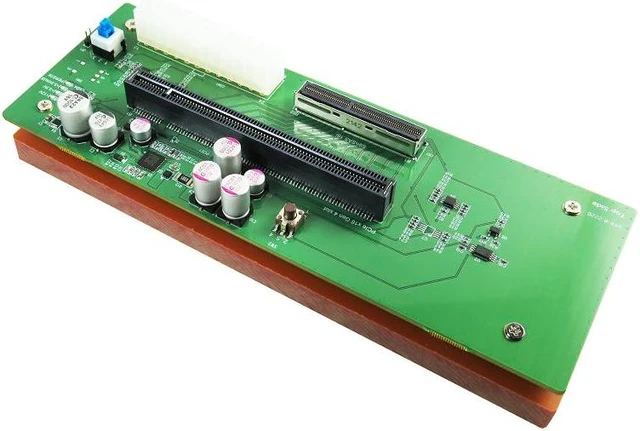

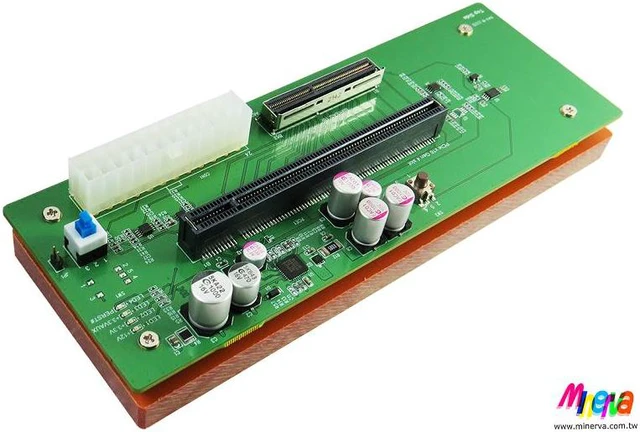

SlimSAS 16i to PCIe x16 Gen4 with Hot Swap Power for NVIDIA GeForce RTX 3080 GPU

GD9605A Specification:
Features:
* SlimSAS 16i to PCIe x16 signals extension
* Built-in ATX 24-pin Power supply connector
* +5VSB Input with Bidirectional TVS (TRANSIENT VOLTAGE SUPPRESSOR)
* Manul Switch ON or Jumper Short for ATX 24-pin Power supply ON
* Built-in SlimSAS 16i(SFF-8654) with 30 microinches connector
* Built-in PCIe x16 with 15 microinches of gold on mating end Slot

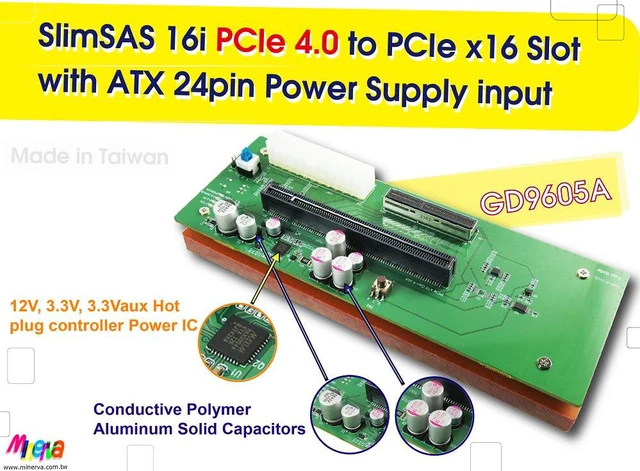

* Built-in MAX5954 PCI Express Power Hot-Plug Controller
* Hot Swaps +12V, + 3.3V, and 3.3V Auxiliary Power Rail
* Active Current Limiting Protects Against Overcurrent/ Short-Circuit Conditions
* Drives two external n-channel MOSFE
Ts to control the +12V and + 3.3V main outputs
* Built-in Conductive Polymer Aluminum Solid Capacitors For 75W Slot Power Supply Rail Requirements as follows:
* +12V Voltage Supply Current Capacitive Load: 5.5 A Current, 1470 F
* + 3.3 Voltage Supply Current Capacitive Load: 3 A Current, 3300 F
* 3.3 aux Voltage Supply Current Capacitive Load: 375 mA Current, 330 F
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer
* Built-in PCIe PERST# Bus Buffer and manul switch
* Built-in PCIe WAKE# Bidirectional Translator Bus Buffer
* Built-in PCIe CLKREQ# Bidirectional Translator Bus Buffer
* Built-in PCIe PWRBRK# Bus Buffer
* LED1 Green On indicates +12V power ready for PCIe x16 Slot
* LED2 Green On indicates + 3.3V power ready for PCIe x16 Slot
* LED3 Green On indicates 3.3V aux power ready for PCIe x16 Slot
* LED4 Red On to OFF indicates PERST# Normal (Function intentionally inverted)

Specifications

:
* Support PCI Express Base Specification Rev 4.0
* Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-8654 Rev 1.2
* Compliant with SFF-9402 Rev 1.1
