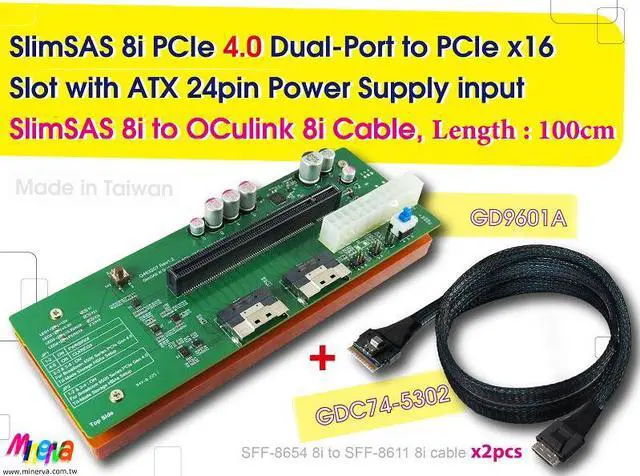

SlimSAS 8ix2(SFF-8654) to PCIe 4.0 x16 Slot with Hot plug Power Protection+SFF-8654 8i to SFF-8612 8i cablee,100cm x2pcs

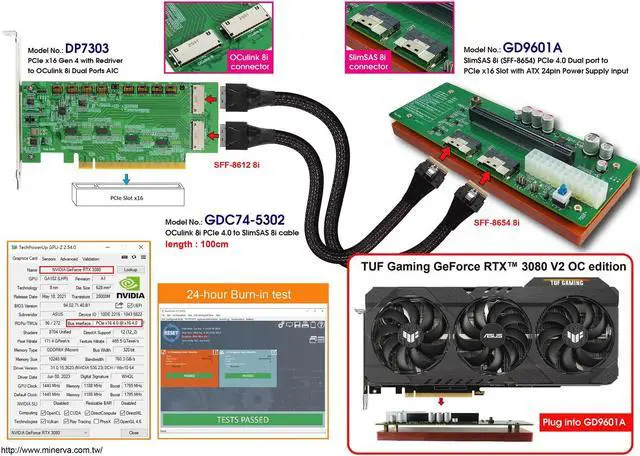

#GD9601A Adapter
Features:
* SlimSAS 8i dual port to PCIe x16 signals extension
* Built-in ATX 24-pin Power supply connector
* +5VSB Input with Bidirectional TVS (TRANSIENT VOLTAGE SUPPRESSOR)
* Manul Switch ON or Jumper Short for ATX 24-pin Power supply ON
* Built-in SlimSAS 8i(SFF-8654) with 30 microinches connector 2 pcs
* Built-in PCIe x16 with 15 microinches of gold on mating end Slot
* Built-in MAX5954A PCI Express Power Hot-Plug Controller
* Hot Swaps +12V, + 3.3V, and 3.3V Auxiliary Power Rail
* Active Current Limiting Protects Against Overcurrent/ Short-Circuit Conditions
* Drives two external n-channel MOSFE
Ts to control the +12V and + 3.3V main outputs
* Built-in Conductive Polymer Aluminum Solid Capacitors For 75W PCIe x16 Slot Power Supply Rail Requirements as follows:
* +12V Voltage Supply Current Capacitive Load: 5.5 A Current, 1470 µF
* + 3.3 Voltage Supply Current Capacitive Load: 3 A Current, 3300 µF
* 3.3 aux Voltage Supply Current Capacitive Load: 375 mA Current, 330 µF
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer
* Built-in PCIe PERST# Bus Buffer and manul switch
* Built-in PCIe WAKE# Bidirectional Translator Bus Buffer
* Built-in PCIe CLKREQ# Bidirectional Translator Bus Buffer
* Built-in PCIe PWRBRK# Bus Buffer
* LED1 Green On indicates +12V power ready for PCIe x16 Slot
* LED2 Green On indicates + 3.3V power ready for PCIe x16 Slot
* LED3 Green On indicates 3.3V aux power ready for PCIe x16 Slot
* LED4 Green On to OFF indicates PERST# Normal (Function intentionally inverted)

Specifications

:
* Support PCI Express Base Specification Rev 4.0
* Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-8654 Rev 1.2
* Compliant with SFF-9402 Rev 1.1

Supports the following Broadcom series products
Broadcom 96xx PCIe 4.0, 24G SAS MegaRAID and eHBA
Tri-Mode Storage Adapters:
* MegaRAID 9670W-16i
* MegaRAID 9670-24i
* MegaRAID 9660-16i
* eHBA 9620-16i
* eHBA 9600-24i
* eHBA 9600-16i
* eHBA 9600-8e8i

Broadcom 95xx PCIe 4.0 MegaRAID and
HBA Tri-Mode Storage Adapters:
* MegaRAID 9560-16i
* MegaRAID 9560-8i
* MegaRAID 9580-8i8e
* HBA 9500-16i
* HBA 9500-8i
* P411W-32P

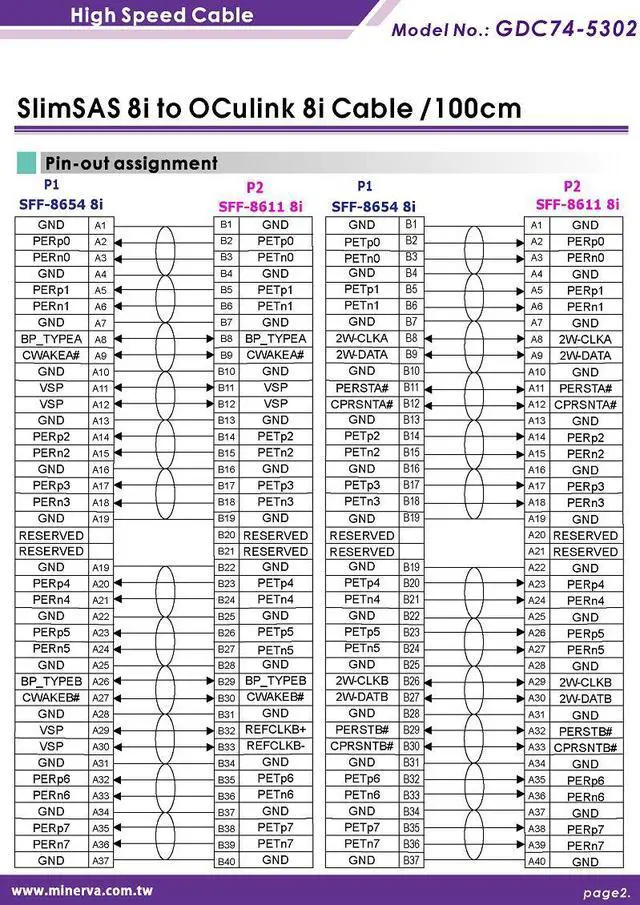

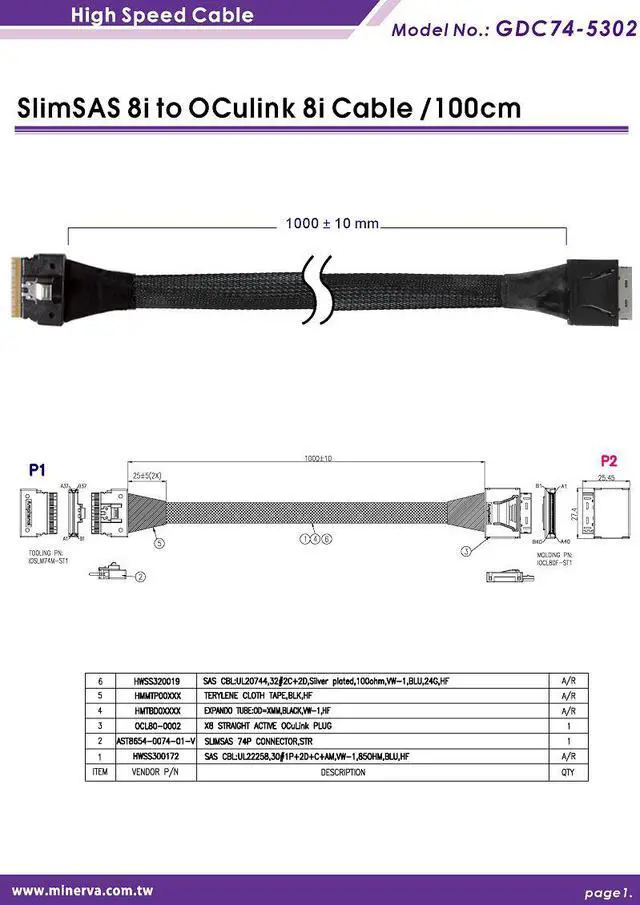

#Part Number: GDC74-5302

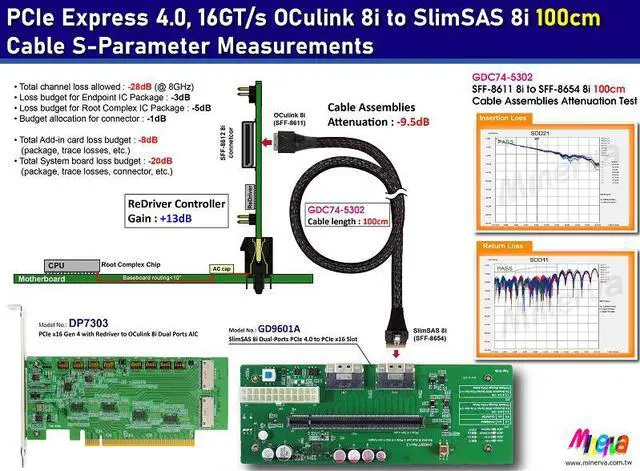

Product Description: PCIe Gen 4 SlimSAS 8i (SFF-8654) to OCulink 8i (SFF-8611) cable
Cable Length: 100CM
