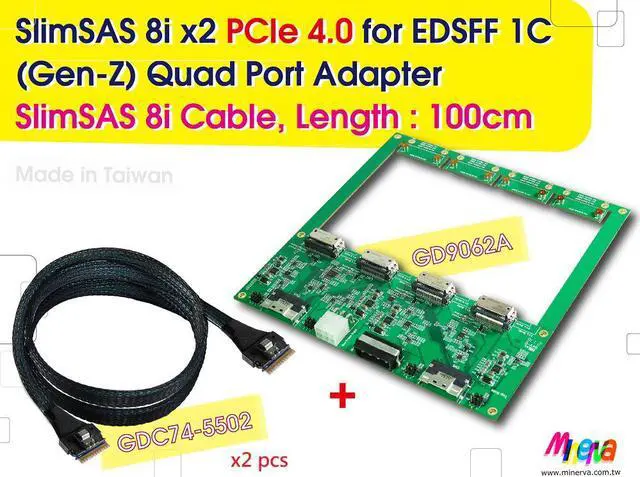

SlimSAS 8i (SFF-8654) dual port PCIe 4.0 for EDSSF 1C Quad Port Adapter & SlimSAS 8i Cable, 100cm x2pcs

GD9602A
Features:
* Gen-Z 1C Quad port to SlimSAS 8i(SFF-8654) convert
* Built-in SFF-8654 8i two connectors, pin-out defined by SFF-9402 Rev 1.1
* Built-in Gen-Z 1C four connectors
* Built-in 12V Hot Plug Power with eFuse protection for each Gen-Z 1C
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* Supports Gen-Z 1C to PCIe CLKREQ#, WAKE#, PWRBRK#
* Supports Gen-Z 1C PWRDIS, SMBRST# control
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer for each Gen-Z 1C

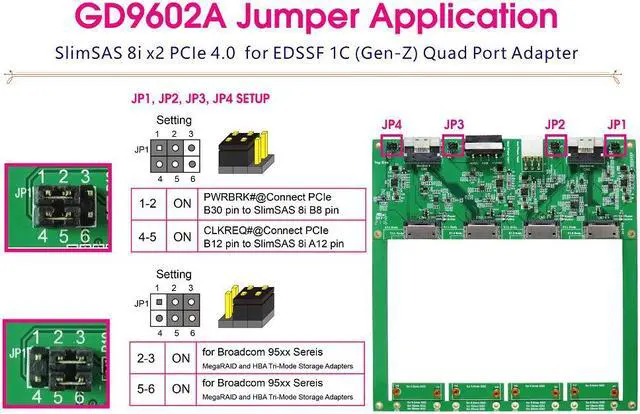

* Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* LED1, LED3, LED5, LED7 Green LED on indicates Gen-Z 1C power ready
* LED2, LED4, LED6, LED8 Red LED Blinking indicates Gen-Z 1C active status

Specifications

:
* Compliant with NVM Express 1.3 a
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-8654 Rev 1.2
* Compliant with SFF-9402 Rev 1.1
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1006 Specification Version 1.4
* Compliant with SFF-TA-1009 Specification Version 3.0
* Compliant with SFF-TA-1020 Specification Version 1.0

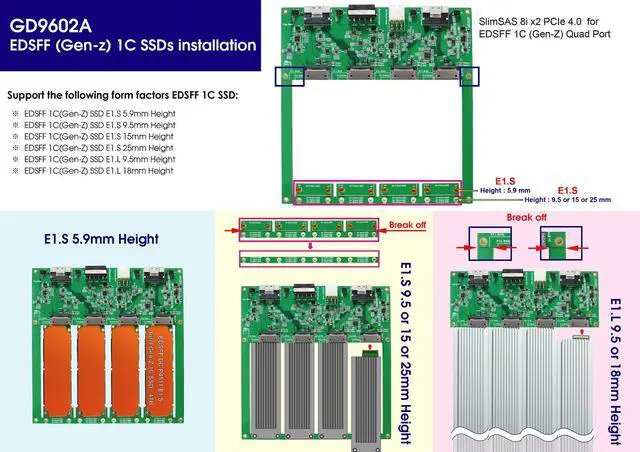

Supports the following form factor EDSFF 1C(Gen-Z) SSD:
* EDSFF 1C(Gen-Z) SSD E1. S 5.9 mm Height
* EDSFF 1C(Gen-Z) SSD E1. S 9.5 mm Height
* EDSFF 1C(Gen-Z) SSD E1. S 15mm Height
* EDSFF 1C(Gen-Z) SSD E1. S 25mm Height
* EDSFF 1C(Gen-Z) SSD E1. L 9.5 mm Height
* EDSFF 1C(Gen-Z) SSD E1. L 18mm Height

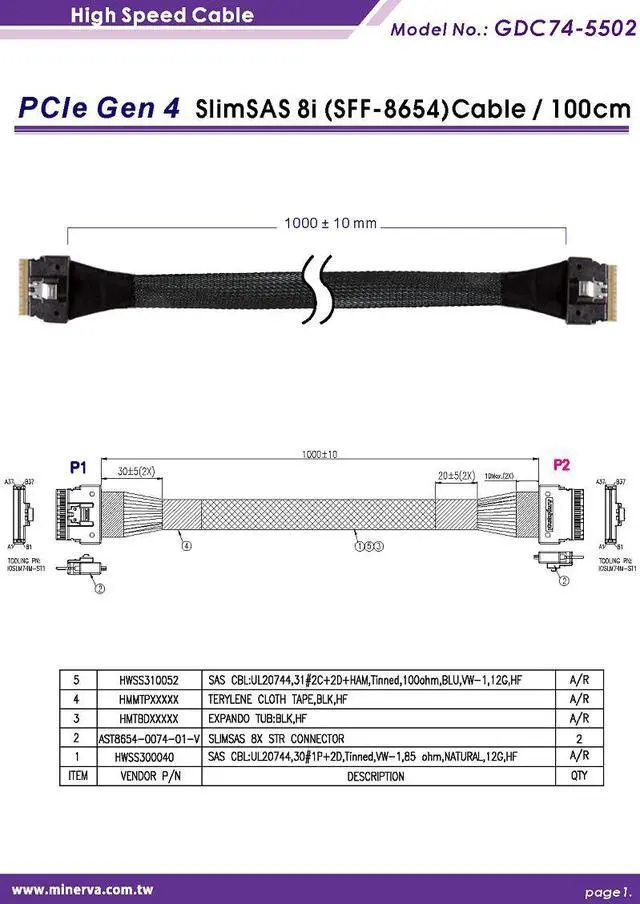

Part Number: GDC74-5502
Product Description: PCIe 4.0 SlimSAS 8i to SlimSAS 8i cable
Cable Cable Length: 100CM
