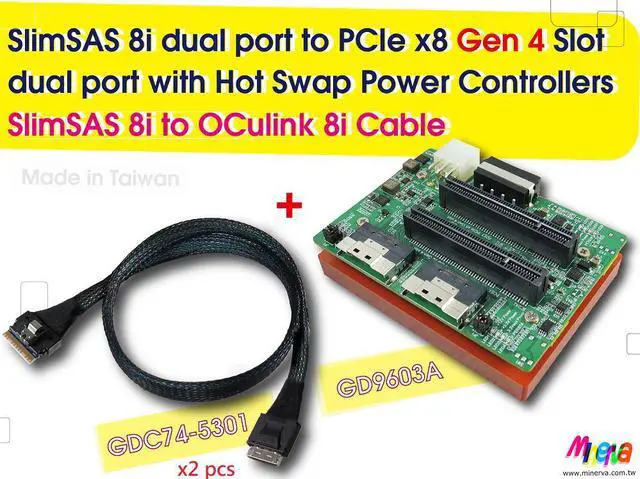

SlimSAS 8i (SFF-8654) dual port to PCIe x8 Gen4 Slot dual port with Hot plug Power Protection & SlimSAS 8i to OCulink 8i Cable, 50cm x2pcs

GD9603A
Features:
* SlimSAS 8i(SFF-8654) x2 to PCIe x16 convert
* Built-in SlimSAS 8i(SFF-8654), 30udual port connector
* Built-in PCIe x8, 15udual port Slot
* Built-in PCIe PERST# Bus Buffer
* Support PCIe PERST# manual reset & generator
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer
* Supports I/O card insertion into a live PCIe Solt without corruption of the data and clock busses
* Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V
Programmable Current Limit: 6.5A
Programmable Inrush Current Slew Rate
Thermal shutdown protection and fault alert
Back-to-Back (B2B) FET Operation
* Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32m ohm
* Built-in 12V output with Schottky Barrier Power Rectifier
* PWM synchronous 12V to 3.3V buck converter Power
4A maximum output current
Over Current Protection
Under Voltage Protection
Under voltage lock out protection (UVLO) monitors
Thermal shutdown protection
ESD Human Body Mode (HBM) /2KV
* Built-in 3.3V Power Load Switch for PCIe + 3.3V
* 12V to 3.3V, 500mA LDO buck converter Power
* Built-in 3.3V Power Load Switch for PCIe 3.3V aux

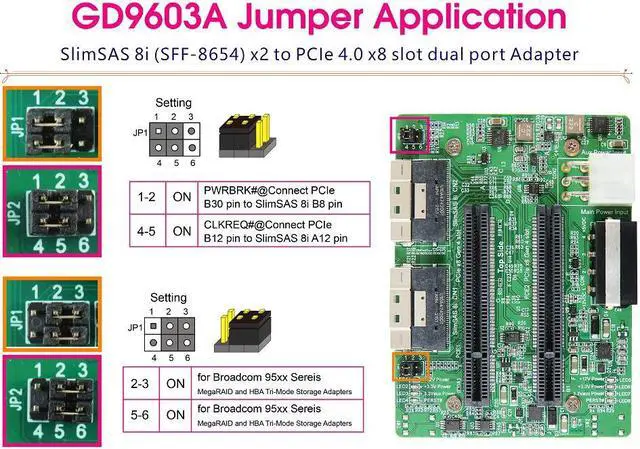

* Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* LED1, LED5 PCIe +12V power ready
* LED2, LED6 PCIe + 3.3V power ready
* LED3, LED7 PCIe 3.3V aux power ready
* LED4, LED8 indicate PERST# signal for LED function intentionally inverted (LED OFF - normal)

Specifications

:
* Support PCI Express Base Specification Rev 4.0
* Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-8654 Rev 1.2
* Compliant with SFF-9402 Rev 1.1
* Support Broadcom Compliant with SFF-9402 Rev 1.1

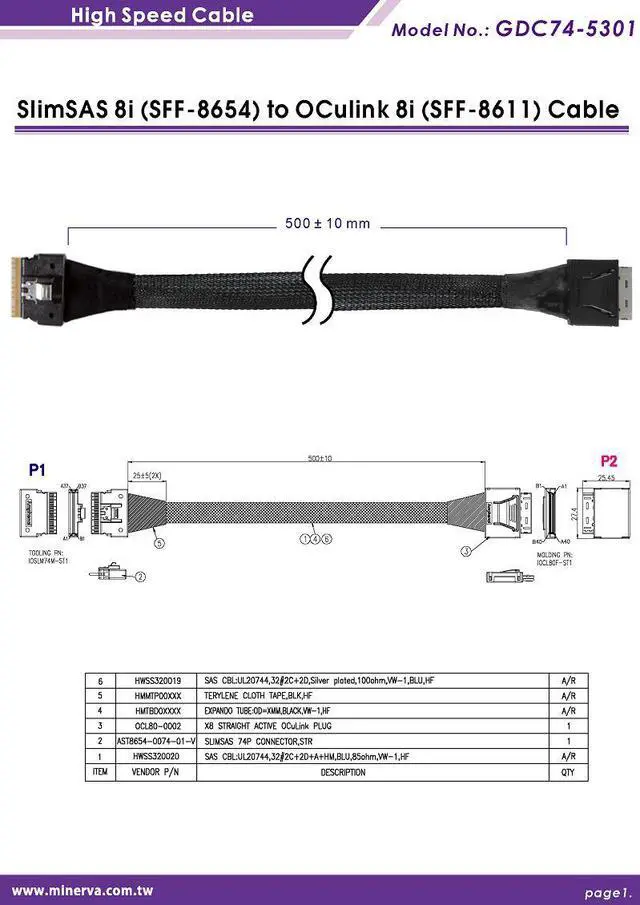

Part Number: GDC74-5301

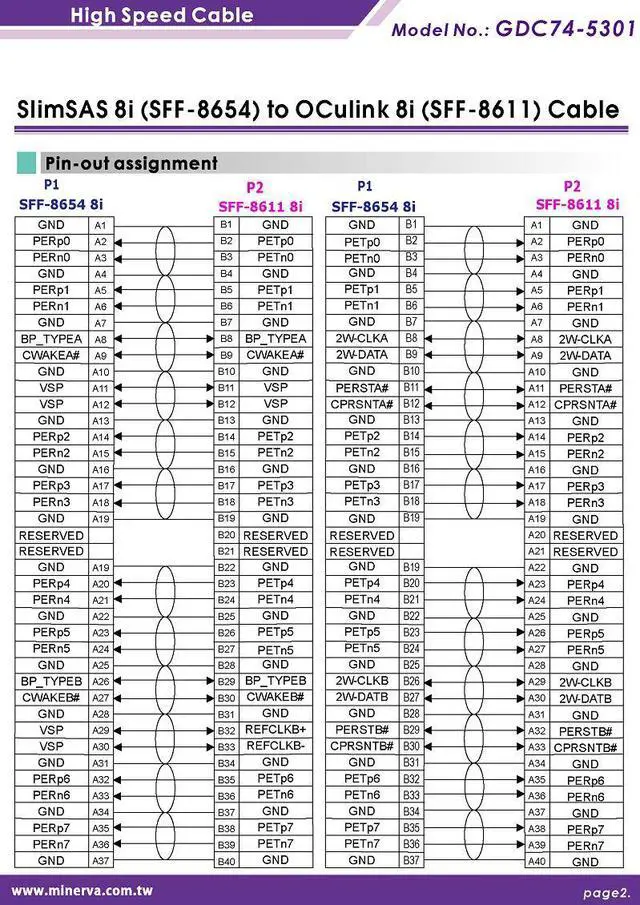

Product Description: PCIe 4.0 SlimSAS 8i to OCulink 8i cable
Cable Cable Length: 50CM
