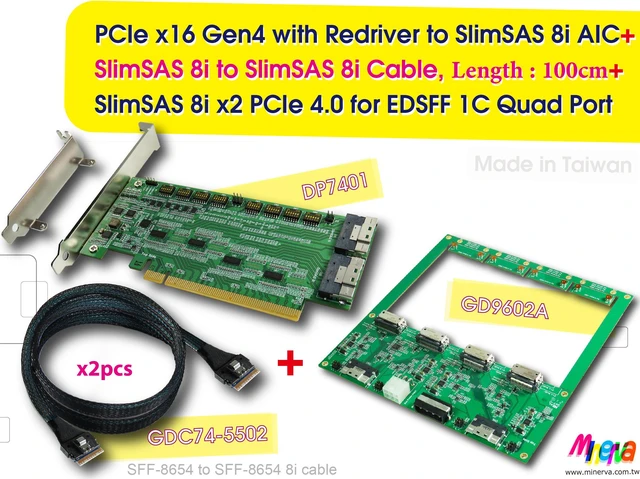

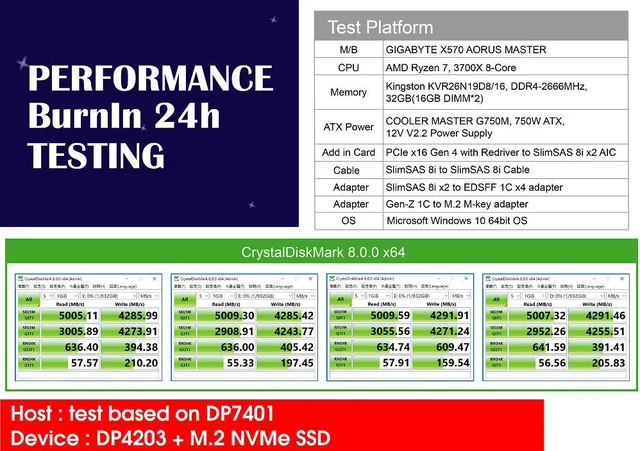

PCIe x16 Gen 4 with ReDriver to SlimSAS 8i dual port & SlimSAS 8i cable,100cm x2pcs & SlimSAS 8i dual port PCIe 4.0 for EDSSF 1C Quad Port Adapter

#"DP7401"adapter:
Features:
* SlimSAS 8i (SFF-8654) to PCI Express 4.0 convert
* Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev 1.1

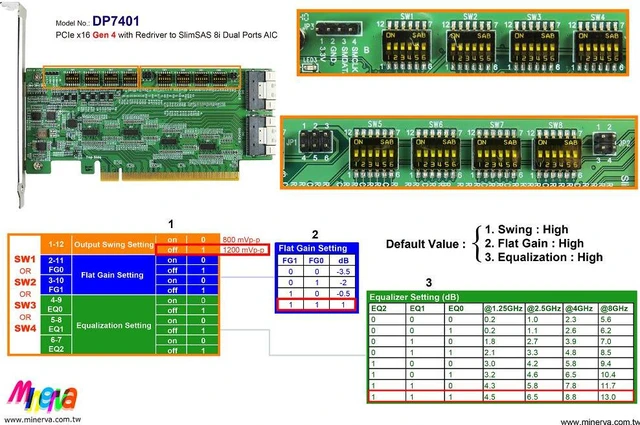

* Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width.
* The 16 lanes in the DP7401 can be bifurcated into four x4 links to support different system topologies
* Built-in PCIe 100MHz Clock buffer to drive longer trace length and longer cable length.
* Built-in 4-Channel SMBus Switch with Reset Funtion
* Built-in PERST# Bus Buffer to be used over longer trace lengths and over longer cable length.
* Built-in WAKE# Bus Buffer to be used over longer trace lengths and over longer cable length.
* Built-in CLKREQ# Bus Buffer to be used over longer trace lengths and longer over cable length.
* Built-in PWRBRK# Bus Buffer to be used over longer trace lengths and longer over cable
* D1 Green LED on indicates AIC ready

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-8654 Specification Version 1.2

Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

#Part Number: GDC74-5502
Product Description: PCIe Gen 4 SlimSAS 8i (SFF-8654) cable
Cable Length: 100CM

GD9602A
Features:
* Gen-Z 1C Quad port to SlimSAS 8i(SFF-8654) convert
* Built-in SFF-8654 8i two connectors, pin-out defined by SFF-9402 Rev 1.1
* Built-in Gen-Z 1C four connectors
* Built-in 12V Hot Plug Power with eFuse protection for each Gen-Z 1C
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation

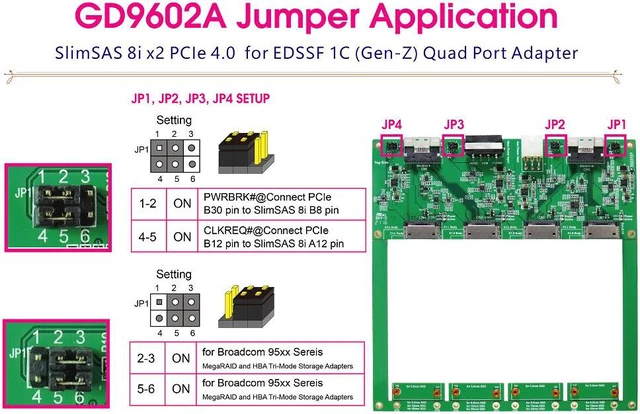

* Supports Gen-Z 1C to PCIe CLKREQ#, WAKE#, PWRBRK#
* Supports Gen-Z 1C PWRDIS, SMBRST# control
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer for each Gen-Z 1C
* Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* LED1, LED3, LED5, LED7 Green LED on indicates Gen-Z 1C power ready
* LED2, LED4, LED6, LED8 Red LED Blinking indicates Gen-Z 1C active status

Specifications

:
* Compliant with NVM Express 1.3 a
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-8654 Rev 1.2
* Compliant with SFF-9402 Rev 1.1
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1006 Specification Version 1.4
* Compliant with SFF-TA-1009 Specification Version 3.0
* Compliant with SFF-TA-1020 Specification Version 1.0

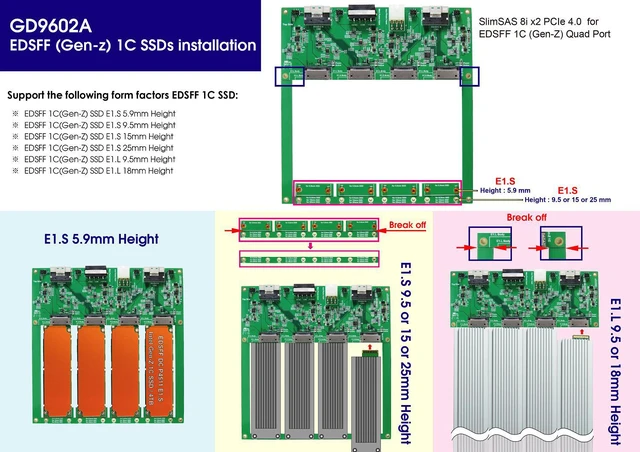

Supports the following form factor EDSFF 1C(Gen-Z) SSD:
* EDSFF 1C(Gen-Z) SSD E1. S 5.9 mm Height
* EDSFF 1C(Gen-Z) SSD E1. S 9.5 mm Height
* EDSFF 1C(Gen-Z) SSD E1. S 15mm Height
* EDSFF 1C(Gen-Z) SSD E1. S 25mm Height
* EDSFF 1C(Gen-Z) SSD E1. L 9.5 mm Height
* EDSFF 1C(Gen-Z) SSD E1. L 18mm Height
