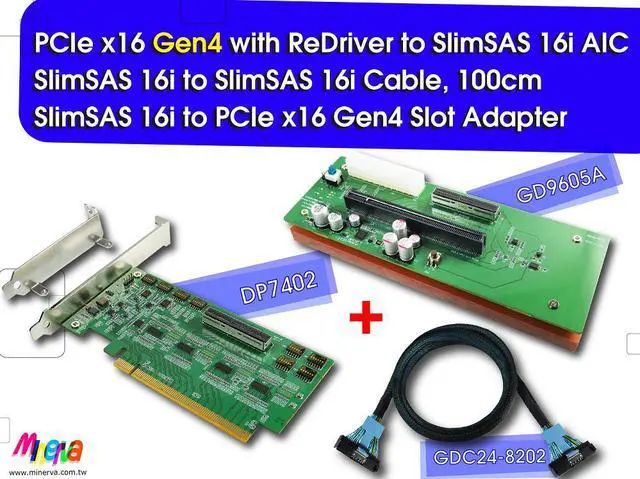

PCIe x16 Gen4 with ReDriver to SlimSAS 16i (SFF-8654) AIC & SlimSAS 16i, 100cm cable & SlimSAS 16i to PCIe x16 with +12V, 3.3V, 3.3Vaux Hot Swap Power Controllers

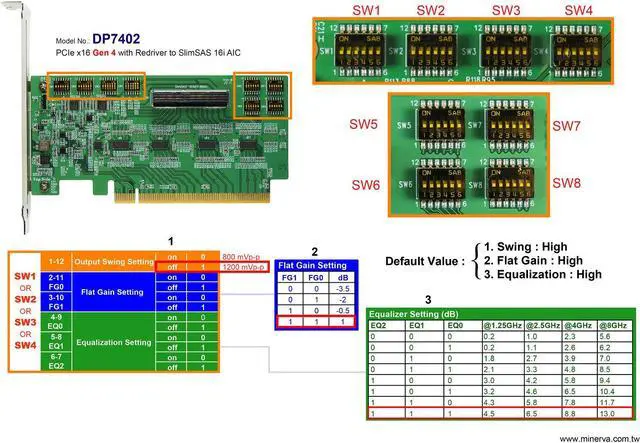

DP7402 Specification
Features:
* SlimSAS 16i(SFF-8654) to PCIe x16 Gen4 convert
* Built-in SlimSAS 16i(SFF-8654) connector

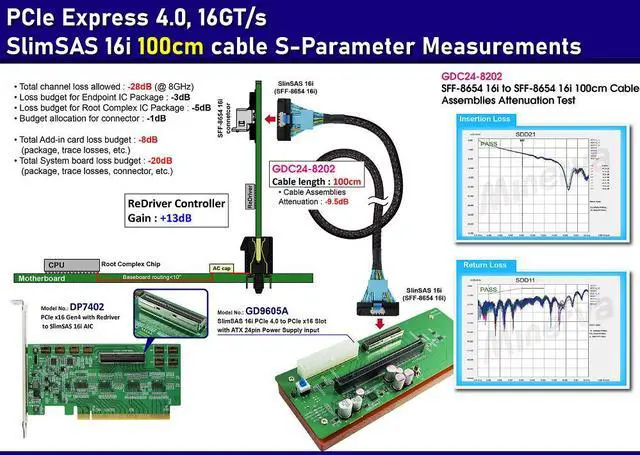

* Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width.
* The PCIe 16 lanes can be bifurcated into four x4 or two x8 link width to support different system topologies
* Built-in PCIe 4.0 100MHz Clock 2-output Fanout buffers(Address: 0x6C) for two x4 to drive longer cable length. It may be buffered and fanned out to the SlimSAS 16i(SFF-8654) clock pin.
* Built-in SMBus Switch(Address: 0x70) with Reset Funtion for SlimSAS 16i(SFF-8654) SMBus communication
* Built-in SMBus I/O Expander(Address: 0x20) for OOB (out of band) management to remote SlimSAS 16i (SFF-8654) Reset signals.
* Supports PCIe PERST# management to control SlimSAS 16i(SFF-8654) Reset signals.
* Built-in PERST# Bus Buffer to be used over longer cable length.
* Built-in WAKE# Auto-Bidirectional Bus Buffer to be used over longer cable length.
* Built-in CLKREQ# Auto-Bidirectional Bus Buffer to be used over longer cable length.
* Built-in PWRBRK# Bus Buffer to be used over longer cable length.
* Built-in 12V to 3.3V, 5.5A PWM Power controller
* Built-in 3.3V Power Load Switch for ReDriver controller Power Protection.
* D1 Green LED on indicates AIC ready
* LED1 Green LED on indicates AIC 3.3V ready

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with Support SFF-9402 Rev 1.1


Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

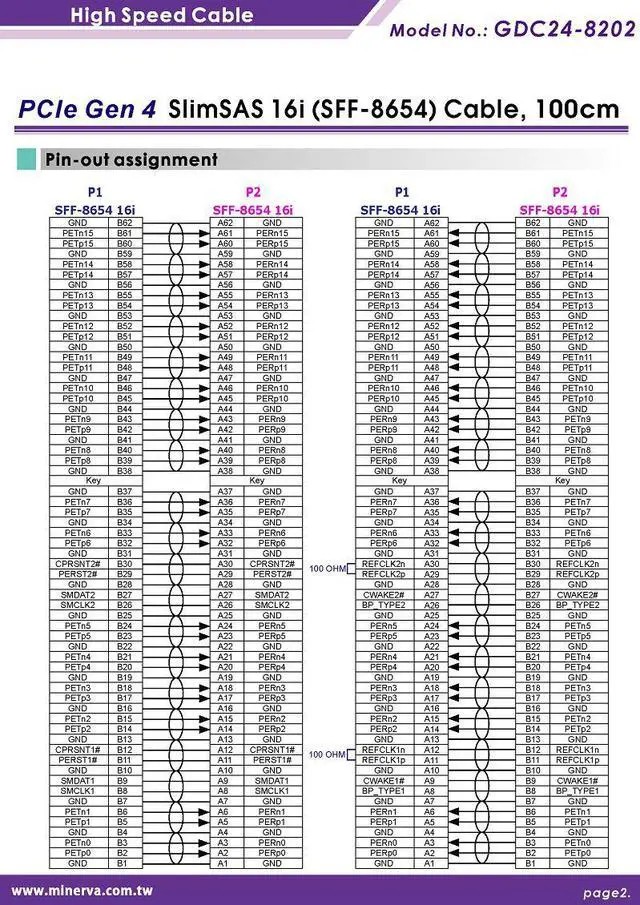

Number: GDC24-8202
Product Description: PCIe Gen 4 SlimSAS 16i (SFF-8654) to SlimSAS 16i cable
Cable Length: 100CM

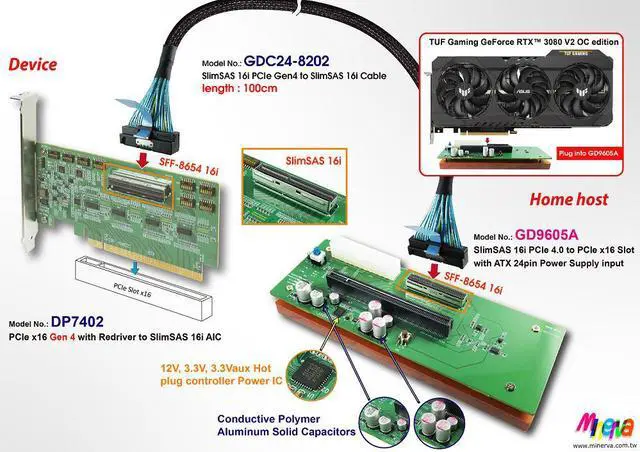

GD9605A Specification
Features:
* SlimSAS 16i to PCIe x16 signals extension
* Built-in ATX 24-pin Power supply connector
* +5VSB Input with Bidirectional TVS (TRANSIENT VOLTAGE SUPPRESSOR)
* Manul Switch ON or Jumper Short for ATX 24-pin Power supply ON
* Built-in SlimSAS 16i(SFF-8654) with 30 microinches connector
* Built-in PCIe x16 with 15 microinches of gold on mating end Slot
* Built-in MAX5954 PCI Express Power Hot-Plug Controller
* Hot Swaps +12V, + 3.3V, and 3.3V Auxiliary Power Rail
* Active Current Limiting Protects Against Overcurrent/ Short-Circuit Conditions
* Drives two external n-channel MOSFE
Ts to control the +12V and + 3.3V main outputs
* Built-in Conductive Polymer Aluminum Solid Capacitors For 75W Slot Power Supply Rail Requirements as follows:
* +12V Voltage Supply Current Capacitive Load: 5.5 A Current, 1470 F
* + 3.3 Voltage Supply Current Capacitive Load: 3 A Current, 3300 F
* 3.3 aux Voltage Supply Current Capacitive Load: 375 mA Current, 330 F
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer
* Built-in PCIe PERST# Bus Buffer and manul switch
* Built-in PCIe WAKE# Bidirectional Translator Bus Buffer
* Built-in PCIe CLKREQ# Bidirectional Translator Bus Buffer
* Built-in PCIe PWRBRK# Bus Buffer
* LED1 Green On indicates +12V power ready for PCIe x16 Slot
* LED2 Green On indicates + 3.3V power ready for PCIe x16 Slot
* LED3 Green On indicates 3.3V aux power ready for PCIe x16 Slot
* LED4 Red On to OFF indicates PERST# Normal (Function intentionally inverted)

Specifications

:
* Support PCI Express Base Specification Rev 4.0
* Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-8654 Rev 1.2
* Compliant with SFF-9402 Rev 1.1
