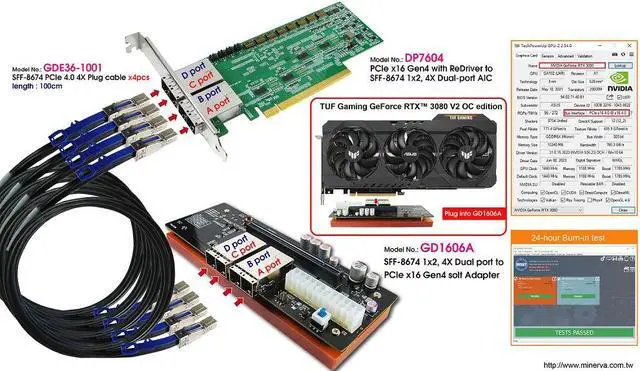

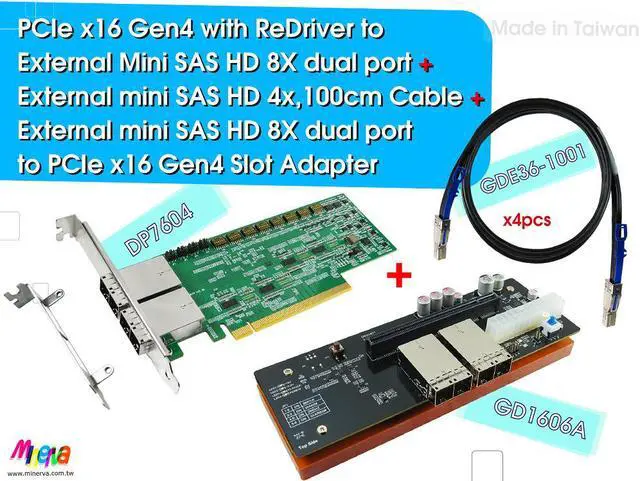

PCIe x16 Gen4 with ReDriver to External Mini SAS HD 8X dual port AIC & PCIe 4.0 External Mini SAS HD 4X cable x4pcs & External mini SAS HD 8X dual port PCIe4.0 to PCIe x16 Slot

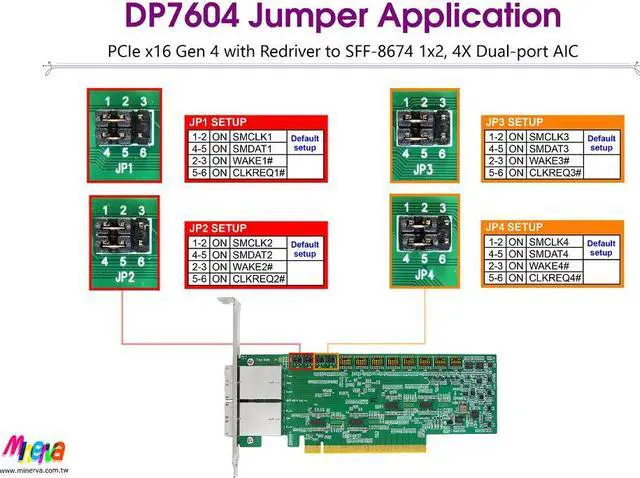

#"DP7604"adapter:
Features:
* External Mini SAS HD 1x2, 4X(SFF-8674) dual port to PCIe x16 Gen4 convert
* Built-in SFF-8674 1x2, 4X dual port connector with 30u( 0.38 um) min Au mating area plating
* Input +12V, + 3.3V, 3.3VAUX with TVS protection
* Built-in 12V to 3.3V _IN, 5.5A PWM Power controller
* Built-in 3.3V _IN Power Load Switch for ReDriver controller Power Protection.
* PCIe 4.0 16-lane signals input and output with ESD protection

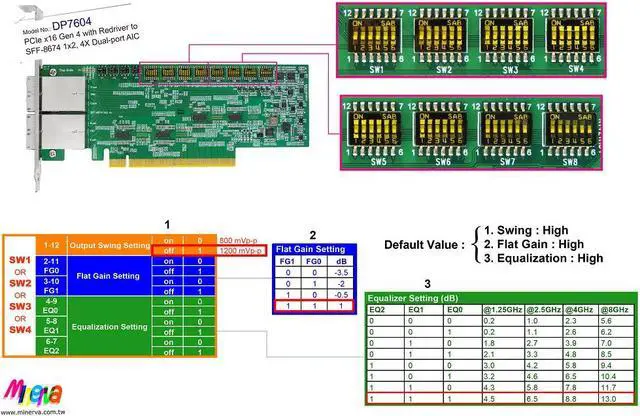

* Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals and may provides programmable linear equalization, output swing and flat gain
* The PCIe 16 lanes can be bifurcated into four x4 link width to support different system topologies

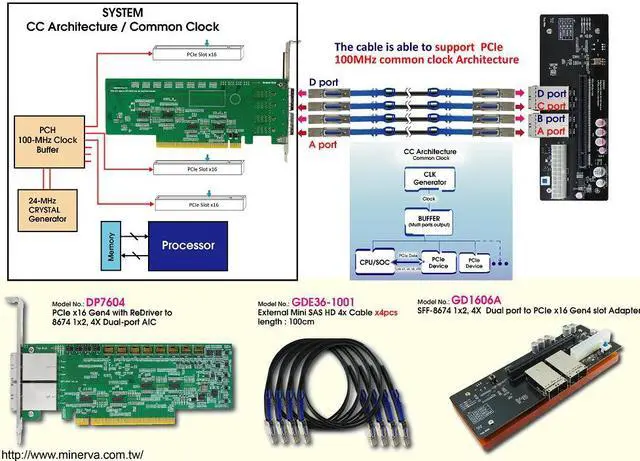

* Built-in PCIe 100MHz Clock buffer(Address: 0x6C) for SFF-8674 dual port to drive longer cable length. It may be buffered and fanned out to the SFF-8674 dual port clock pin.
* Built-in SMBus Switch(Address: 0x70) with Reset Funtion for SFF-8674 dual port SMBus communication
* Built-in SMBus I/O Expander(Address: 0x20) for OOB (out of band) management to remote SFF-8674 dual port Reset signals.
* Supports PCIe PERST# management to control SFF-8674 dual port Reset signals.
* Built-in PERST# Bus Buffer to be used longer cable length.
* Built-in WAKE# Auto-Bidirectional Bus Buffer to be used longer cable length.
* Built-in CLKREQ# Auto-Bidirectional Bus Buffer to be used longer cable length.
* LED1 Green LED on indicates AIC ready
* LED2 Red OFF indicates WAKE# Normal (Function intentionally inverted)
* LED3 Red OFF indicates PERST# Normal (Function intentionally inverted)
* LED4 Red OFF indicates PERST# Normal (Function intentionally inverted)

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with Support SFF-9402 Rev 1.1
* Compliant PCI_Express_External_Cabling_R 3.0 a_06042020_NCB

Applications:
* Rack server
* Microserver and Tower server
* High performance computing


Part Number: GDE36-1001

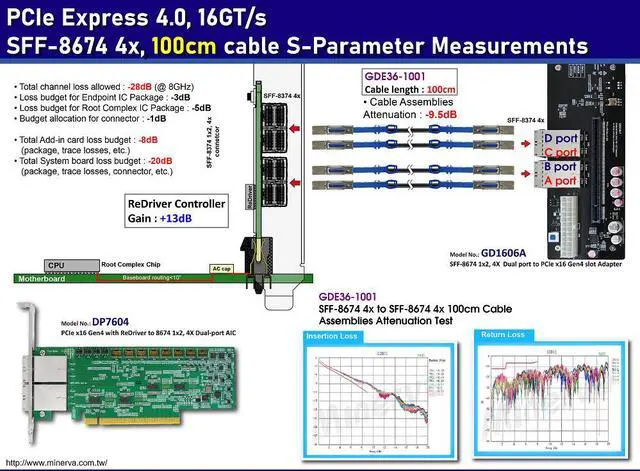

Product Description: PCIe 4.0 External MINI SAS HD 4x Male to External MINI SAS HD 4x Male cable
Cable Cable Length: 100CM

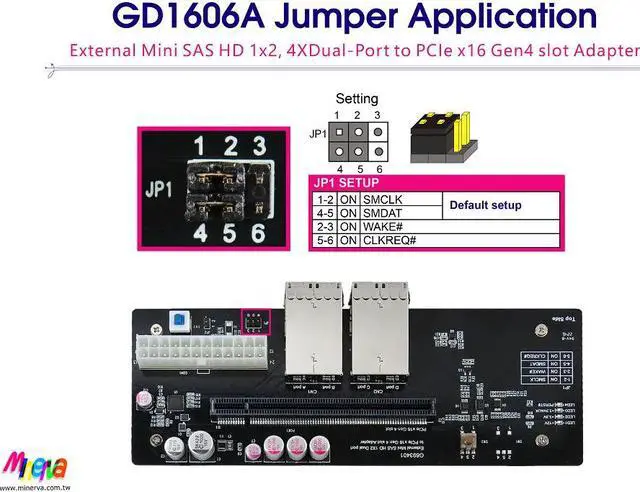

GD1601A
Features:
* SFF-8674 1x2, 4X dual port to PCIe x16 signals extension
* Built-in ATX 24-pin Power supply connector
+5VSB Input with Bidirectional TVS (TRANSIENT VOLTAGE SUPPRESSOR)
Manul Switch ON or Jumper Short for ATX 24-pin Power supply ON
* Built-in SFF-8674 1x2, 4X with 30u( 0.76 um) min Au mating area plating x2 pcs
* Built-in PCIe 4.0 x16 Slot with 15 u( 0.38 um) min Au mating area plating
* Built-in MAX5954A PCI Express Power Hot-Plug Controller
Hot Swaps +12V, + 3.3V, and 3.3V Auxiliary Power Rail
Active Current Limiting Protects Against Overcurrent/ Short-Circuit Conditions
Drives two external n-channel MOSFE
Ts to control the +12V and + 3.3V main outputs
* Built-in Conductive Polymer Aluminum Solid Capacitors For 75W PCIe x16 Slot Power Supply Rail Requirements as follows:
+12V Voltage Supply Current Capacitive Load: 5.5 A Current, 1470 F
+ 3.3 Voltage Supply Current Capacitive Load: 3 A Current, 3300 F
3.3 aux Voltage Supply Current Capacitive Load: 375 mA Current, 330 F
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer
* Built-in PCIe PERST# Bus Buffer and manul switch
* Built-in PCIe WAKE# Bidirectional Translator Bus Buffer
* Built-in PCIe CLKREQ# Bidirectional Translator Bus Buffer
* Built-in PCIe PWRBRK# Bus Buffer
* LED1 Green On indicates +12V power ready for PCIe x16 Slot
* LED2 Green On indicates + 3.3V power ready for PCIe x16 Slot
* LED3 Green On indicates 3.3V aux power ready for PCIe x16 Slot
* LED4 Green On to OFF indicates PERST# Normal (Function intentionally inverted)

Specifications

:
* Support PCI Express Base Specification Rev 4.0
* Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-TA-8614 R 3.4. 4_CB
* Compliant with SFF-9402 Rev 1.1
