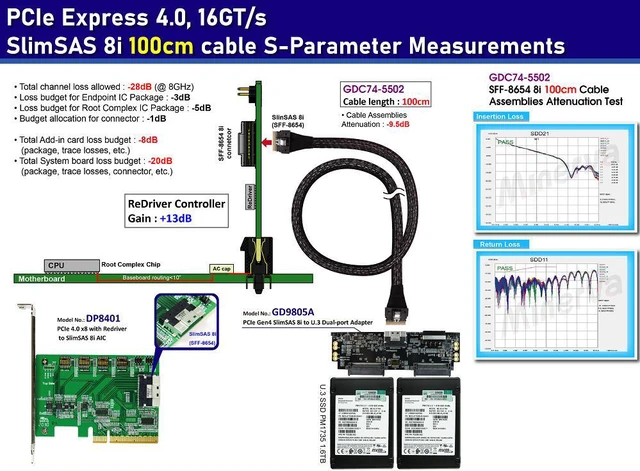

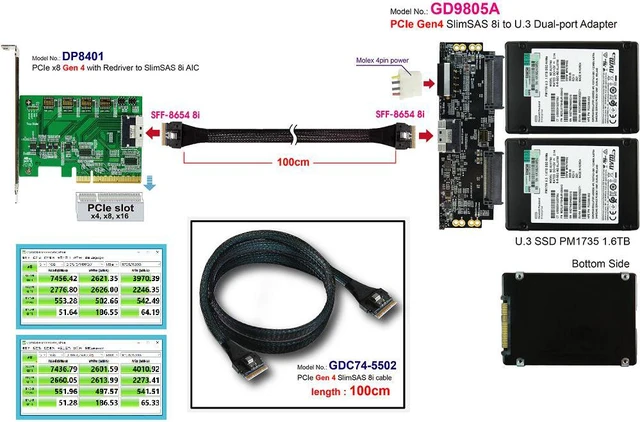

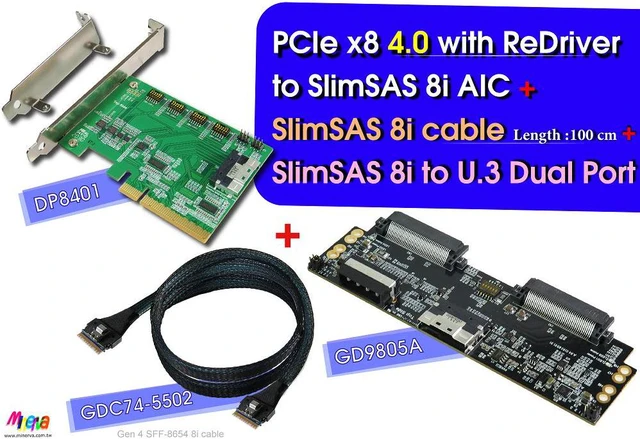

PCIe x8 Gen4 with ReDriver to SlimSAS 8i AIC & SlimSAS 8i cable, 100cm & SlimSAS 8i to U.3 Daul port Adapter

#"DP8401"adapter:
Features:
* SlimSAS 8i (SFF-8654) to PCI Express 4.0 convert
* Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev 1.1
* Built-in PCIe ReDriver to extend PCIe Gen4, 16GT/s 8 Lanes differential pair signals
* Built-in PCIe 100MHz Clock buffer to drive longer trace length and longer length cable
* Built-in PCIe SMCLK, SMDAT bidirectional buffer repeater
* Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Built-in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* D1 Green LED on indicates AIC ready

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-8654 Specification Version 1.2

Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

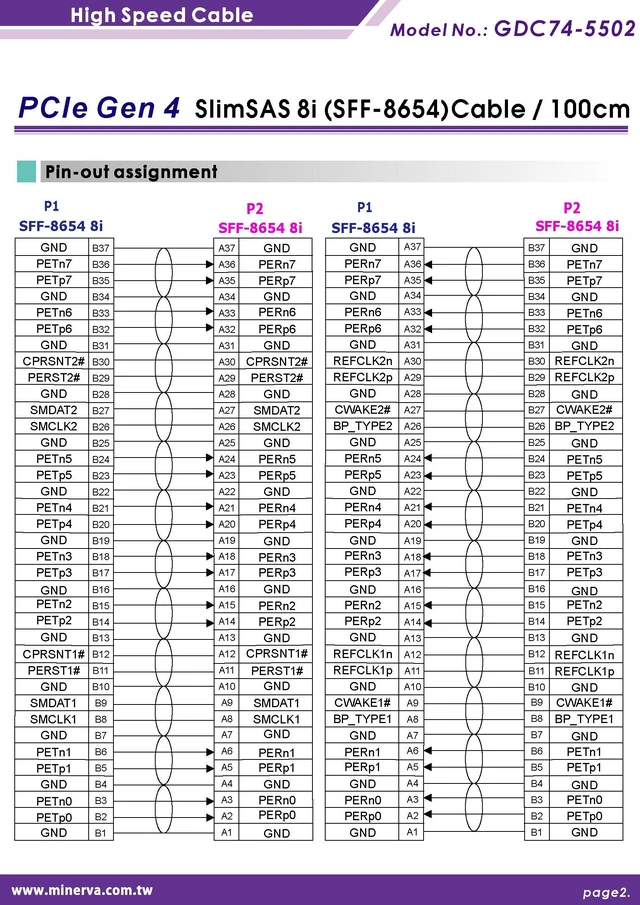

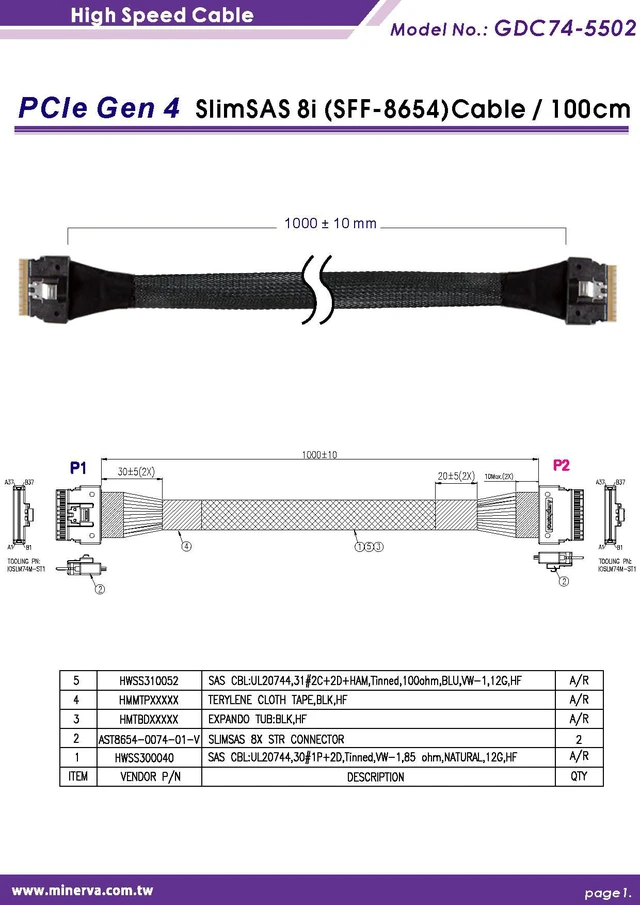

#Part Number: GDC74-5502
Product Description: PCIe Gen 4 SlimSAS 8i (SFF-8654) to SlimSAS 8i cable
Cable Length: 100CM


#GD9805A Adapter
Features:
* U. 3 dual ports to SlimSAS 8i (SFF-8654) convert
* Built-in SlimSAS 8i, 15u connector, pin-out defined by SFF-9402 Rev 1.1
* Built-in two U. 3 SFF-8639, 30u connector
* Built-in two 12V Hot Plug Power with eFuse protection for U. 3 dual ports
?
Programmable Current Limit: 6.5A
? Programmable Inrush Current Slew Rate
? Thermal shutdown protection and fault alert
? Back-to-Back (B2B) FET Operation
* Supports U. 3 to PCIe CLKREQ#, WAKE#
* Supports U. 3 PWRDIS Implementation
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer
* Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* LED2, LED4 Green LED on indicates U. 3 NVMe SSD power ready
* LED1, LED3 RED LED Blinking indicates U. 3 active status

Specifications

:
* Compliant with NVM Express 1.4
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R 3.0 _V 1.0
* Compliant with SFF-TA-1001 Rev 1.1
* Compliant with SFF-8654 Rev 1.2
* Compliant with SFF-9402 Rev 1.1

Applications:
* Servers
* HBA (Host Bus Adapter)
* Data Center
* Storage Racks
* Storage Controller
* Servers RAI
Ds (Redundant Array of Independent Disks)
* Routers
* Switchs
