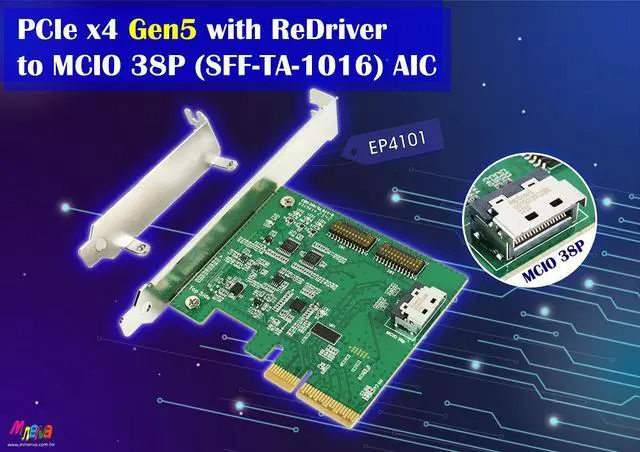

PCIe x4 Gen 5 with ReDriver to SFF-TA-1016 AIC

#EP4101 adapter:

Features:
* Supports Server BMC management
* MCIO 38P to PCI Express x4 Gen 5 convert
* Built- in SFF-TA-1016/MCIO 38P, 30uconnector

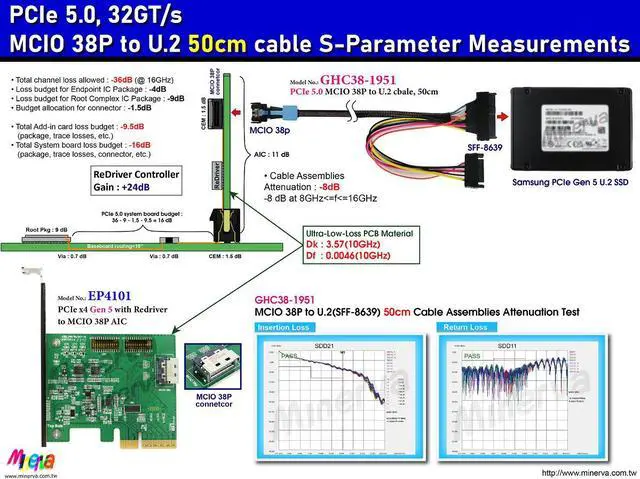

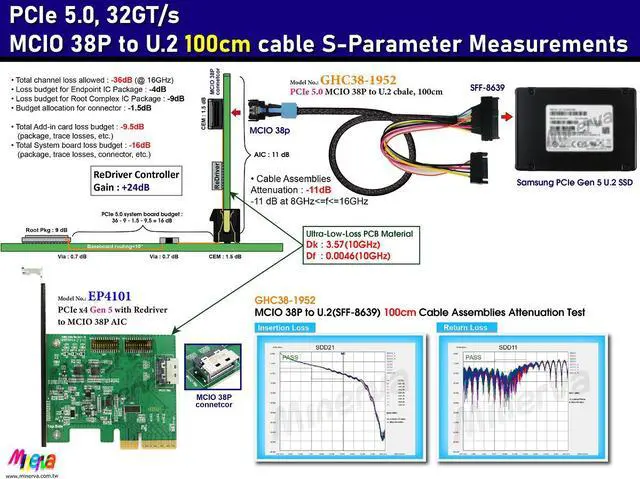

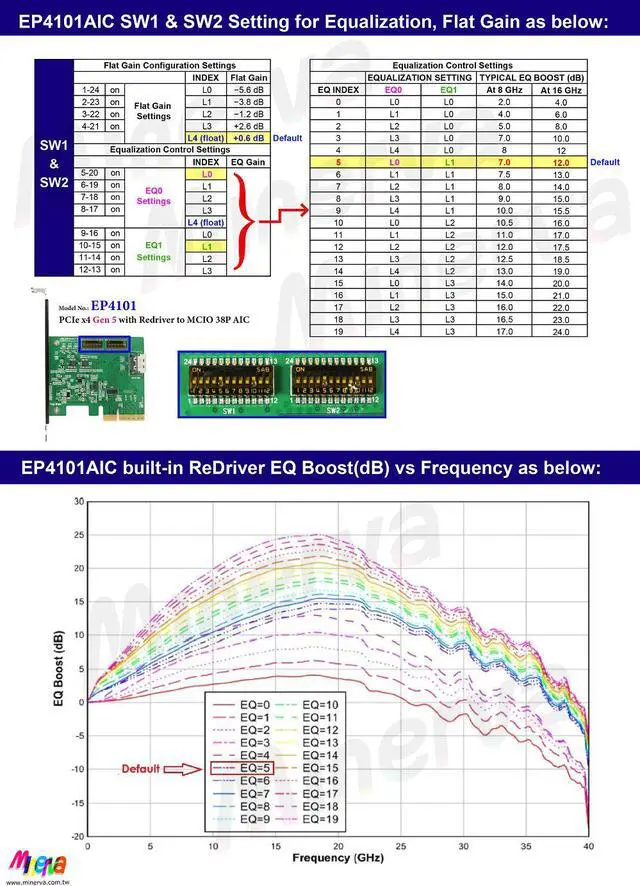

* Built-in ReDriver to extend PCIe 5.0, 32GT/s 4 lanes differential pair signals data link width, and may provides equalization up to 24 dB at 16 GHz
* Built- in PCIe 100MHz Clock buffer to drive longer PCB trace lengths and longer cable, Address: 0x6C (7 bits)
* Built- in SMBus Switch,
Address: 0x71 (7 bits)
* Built- in SMBus I/O Expander,
Address: 0x20 (7 bits) for MCIO 38P PWRDIS control
* Supports PCIe PERST# for OOB (out of band) management to remote MCIO 38P Reset
* Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used over longer PCB trace lengths and longer cable
* Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used over longer PCB trace lengths and longer cable
* Input 3.3V with bidirectional TVS protection
* Input 3.3V provides 3A current Load switch and reverse current protection
* LED1 Green LED on indicates AIC ready
* LED2 Green LED on to off indicates PCIe WAKE# signals
* LED3 Green LED on to off indicates PCIe CLKREQ# signals
* LED4 Green LED on to off indicates PCIe PERST# signals

Specifications

:
* PCIe Base Specification Revision 5.0 Version 1.0
* PCIe_CEM_R5_V 1.0 _06092021_NCB
* Compliant with SFF-TA-1016 Specification Version 1.1


Operating system support:
* Windows 8 & 8.1
* Windows 10
* Windows 11
* UEFI 2.3. 1 or later


Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard
