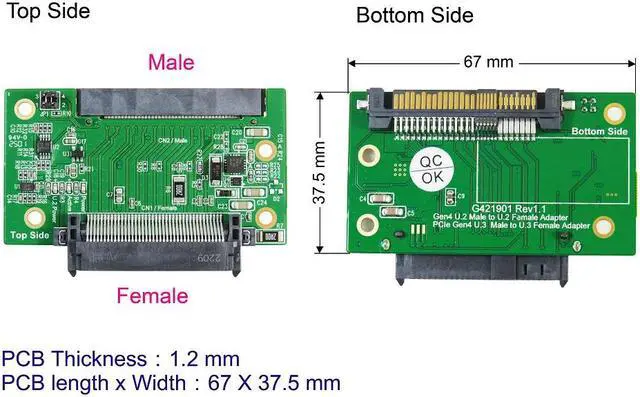

U.3 Male SFF-TA-1001 PCIe Gen 4 to U.2 Female with Hot Plug Power Protection IC

#"DP6303"adapter:
Features:
* OCulink 4i (SFF-8612) to M. 2 PCIe 4.0 convert
* Built- in SFF-8612 connector, pin-out defined by SFF-9402 Rev 1.1
* Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBus bidirectional buffer repeater and Voltage level shift
* Built- in PERST# Bidirectional Voltage-Level Translator
* Built- in WAKE# Bidirectional Voltage-Level Translator
* Built- in CLKREQ# Bidirectional Voltage-Level Translator
* M. 2 CLKREQ# signal is tied to SFFF-8612 B13 pin
* Built- in PWRDIS Bidirectional Voltage-Level Translator
* M. 2 PWRDIS signal is tied to SFFF-8612 A9 pin

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with PCI_Express_OCuLink_ 1.0 a
* Compliant with SFF-9402 Specification Version 1.1
* PCI Express M. 2 Spec Rev 4.0 Ver 1.0 11052020 NCB


Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later


Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard
