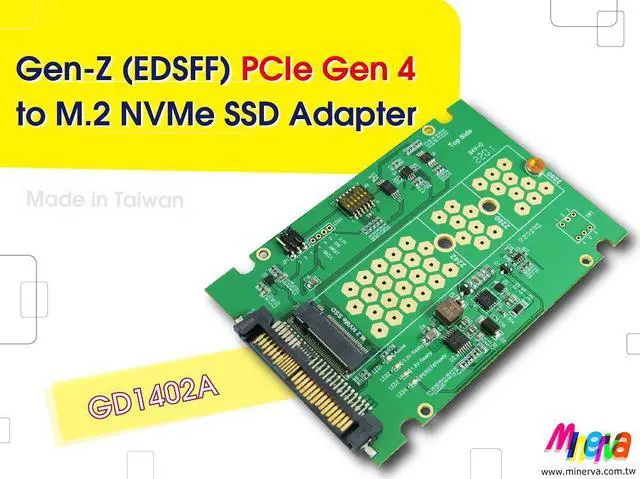

Gen-Z PCIe Gen 4 to M.2 (22x80mm) Adapter

#GD1402A Adapter
Features:
* M. 2 NVMe to U. 3(SFF-8639) convert
* Built-in SFF-8639, 30u connector, pin-out defined by SFF-9402 Rev 1.1
* PWM 12V to 3.3V synchronous buck converter Power for M. 2 NVMe SSD
* 5.5A maximum output current
* Output Discharge Control
* The output overcurrent protection (OCP)
* Uundervoltage lock out protection (UVLO) monitor
* Over/Under Voltage Protection
* Thermal shutdown protection
* ESD HBM (Human Body Mode) /500V
* Built-in 3.3V Hot Plug Power with eFuse protection for M. 2 NVMe SSD
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* Built-in 3.3V input with 400W TVS (TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
* Built-in 3.3V output with 30-V, N channel NexFET power MOSFET, 32 m ohm
* Built-in 3.3V output with SCHOTTKY BARRIER Power Rectifier
* Supports M. 2 3.3V & 1.8V supply
* Supports M. 2 VIO_CFG Signal
* Supports M. 2 PERST# Signal 3.3V and 1.8V Voltage-Level Translator
* Supports M. 2 CLKREQ# Signal 3.3V and 1.8V Switching Translator
* Supports M. 2 WAKE# Signal 3.3V and 1.8V Translator
* Supports PWRDIS Signal from U. 3 pin to M. 2 pin
* Supports M. 2 / 1.8V to U. 3/ 3.3V SMBCLK, SMBDATA Level Shift
* Supports M. 2 / 1.8V to U. 3 / 3.3V SMBCLK, SMBDATA isolated, repeater
* Supports M. 2 / 1.8V to U. 3 / 3.3V SMBCLK, SMBDATA Hot-Swap
* Built-in SMBus EEPROM 64KB
* LED1 RED Blinking indicates M. 2 active status
* LED2 GREEN ON indicates 3.3V power ready
* LED3 GREEN ON indicates 1.8V power ready
* LED4 RED ON indicates PERST# signals ready

Specificationa:
* Compliant with NVM Express 1.3 a
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCI Express M. 2 Specification Version 1.2
* Compliant with PCIe SFF-8639 Module Specification Rev 3.0
* Compliant with SFF-TA-1001 Rev 1.1

Supports the following form factor M. 2
SSD:
* Type 2242-D2-B-M: 42mm (L) x 22mm (W)
* Type 2260-D2-B-M: 60mm (L) x 22mm (W)
* Type 2280-D2-B-M: 80mm (L) x 22mm (W)
