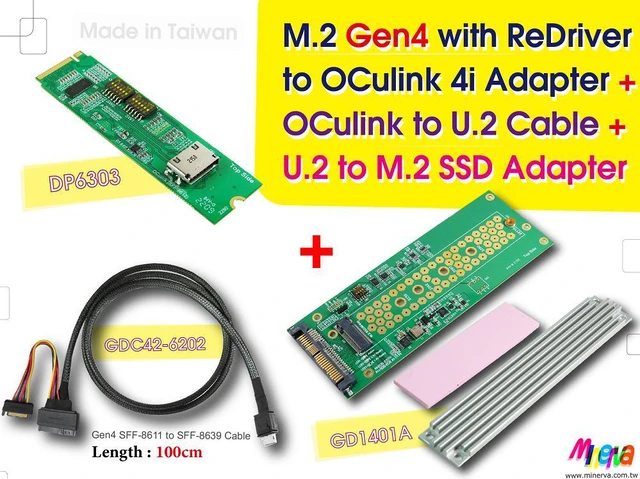

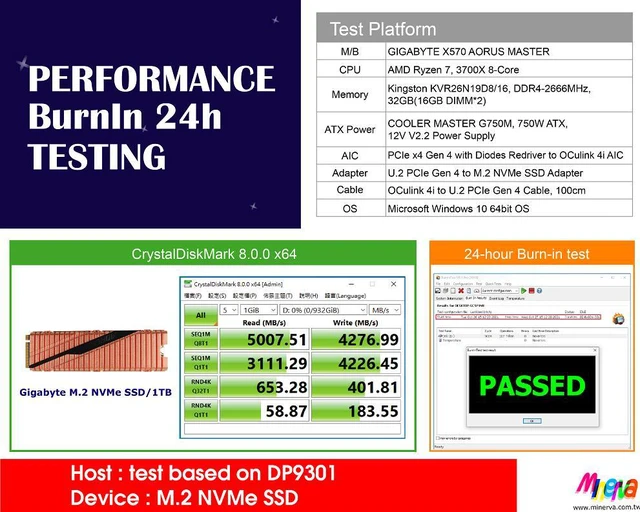

M.2 M-key Gen4 with ReDriver to OCulink 4i & OCulink 4i to U.2 (SFF-8639) Cable, 100cm & U.2 to M.2 NVMe Adapter KIT

#"DP6303"adapter:

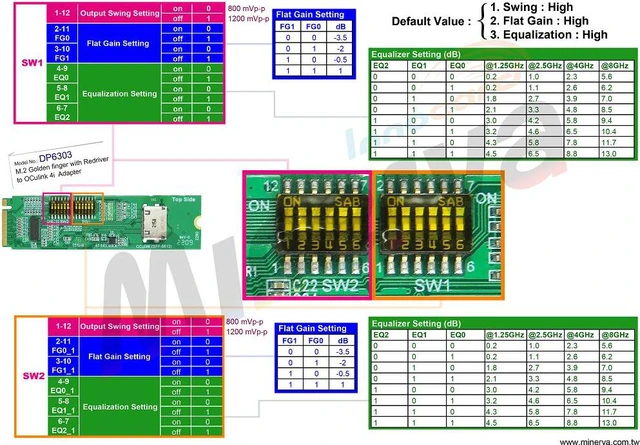

Features:
* OCulink 4i (SFF-8612) to M. 2 PCIe 4.0 convert
* Built- in SFF-8612 connector, pin-out defined by SFF-9402 Rev 1.1
* Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBus bidirectional buffer repeater and Voltage level shift
* Built- in PERST# Bidirectional Voltage-Level Translator
* Built- in WAKE# Bidirectional Voltage-Level Translator
* Built- in CLKREQ# Bidirectional Voltage-Level Translator
* M. 2 CLKREQ# signal is tied to SFFF-8612 B13 pin
* Built- in PWRDIS Bidirectional Voltage-Level Translator
* M. 2 PWRDIS signal is tied to SFFF-8612 A9 pin

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with PCI_Express_OCuLink_ 1.0 a
* Compliant with SFF-9402 Specification Version 1.1
* PCI Express M. 2 Spec Rev 4.0 Ver 1.0 11052020 NCB


Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later


Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

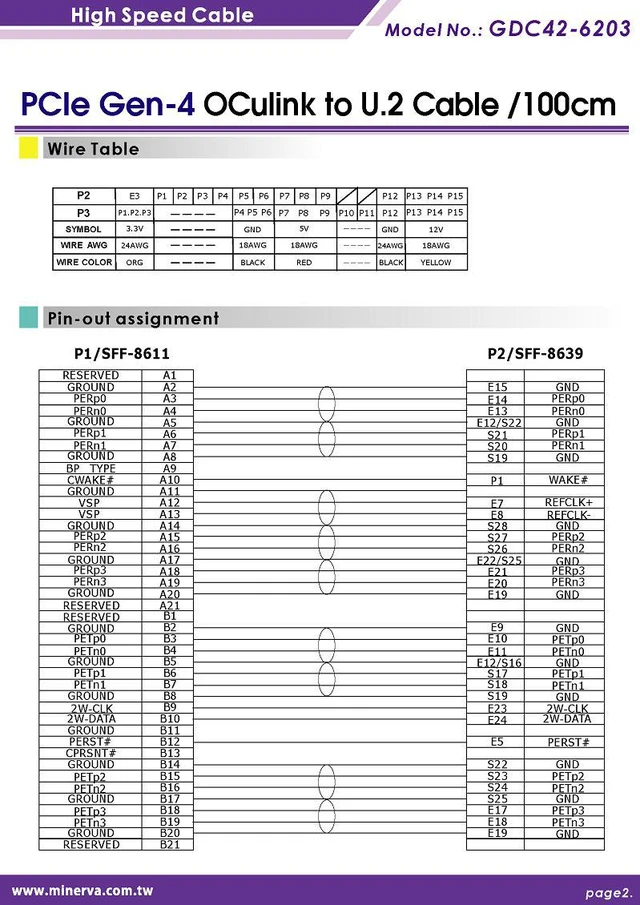

#Part Number: GDC42-6203
Product Description: PCIe Gen 4 OCulink 4i (SFF-8611) to U. 2 (SFF-8639) cable
Cable Length: 100CM

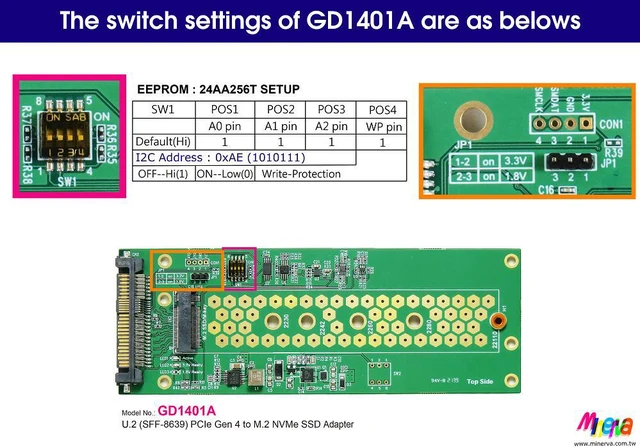

#GD1401A adapter:
Features:
* M. 2 NVMe to U. 2(SFF-8639) convert
* Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev 1.1
* PWM 12V to 3.3V synchronous buck converter Power for M. 2 NVMe SSD
? 5.5A maximum output current
? Output Discharge Control
? The output overcurrent protection (OCP)
? Uundervoltage lock out protection (UVLO) monitor
? Over/Under Vlotage Protection
? Thermal shutdown protection
? ESD HBM (Human Body Mode) /500V
* Built-in 3.3V Hotswap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for M. 2 SSD protection
* Supports M. 2 3.3V & 1.8V supply
* Supports M. 2 VIO_CFG Signal
* Supports M. 2 PERST# Signal 3.3V AND 1.8V Switching
* Supports M. 2 CLKREQ# Signal 3.3V AND 1.8V Switching
* Supports M. 2 WAKE# Signal 3.3V AND 1.8V Switching
* Supports PWRDIS Signal from U. 2 pin to M. 2 pin
* Supports M. 2 / 1.8V to U. 2/ 3.3V SMBCLK, SMBDATA Level Shift
* Supports M. 2 / 1.8V to U. 2 / 3.3V SMBCLK, SMBDATA isolated, repeater
* Built-in SMBUS EEPROM 64KB
* D1 Green LED on indicates M. 2 NVMe SSD power ready
* D2 RED LED Blinking indicates M. 2 active status

Specifications

:
* Compliant with NVM Express 1.3 a
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCI Express M. 2 Specification Version 1.2
* Compliant with PCIe SFF-8639 Module Specification Rev 3.0
* Compliant with SFF-TA-1001 Rev 1.1

Supports the following form factor M. 2
SSD:
* Type 2242-D2-B-M: 42mm (L) x 22mm (W)
* Type 2260-D2-B-M: 60mm (L) x 22mm (W)
* Type 2280-D2-B-M: 80mm (L) x 22mm (W)
* Type 22110-D2-B-M: 110mm (L) x 22mm (W)
