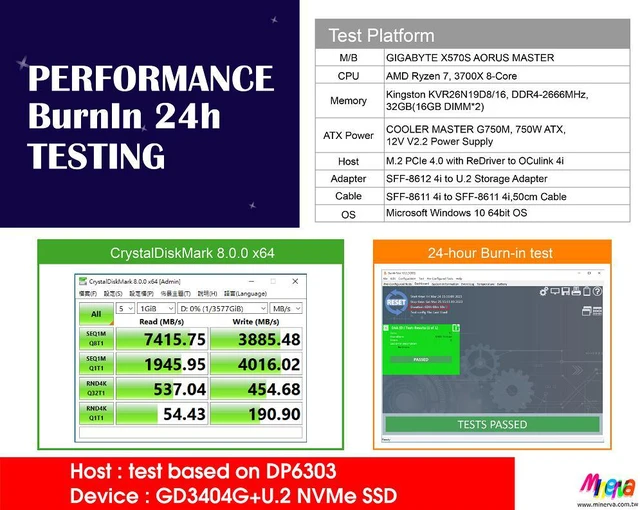

M.2 M-key PCIe Gen 4 with ReDriver to OCulink 4i & OCulink 4i (SFF-8611) Cable & OCulink (SFF-8612) for U.2 (SFF-8639) SSD Adapter KIT

#"DP6303"adapter:
Features:
* OCulink 4i (SFF-8612) to M. 2 PCIe 4.0 convert
* Built- in SFF-8612 connector, pin-out defined by SFF-9402 Rev 1.1

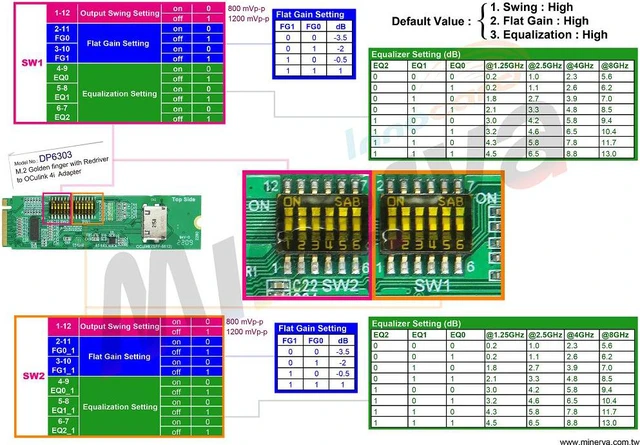

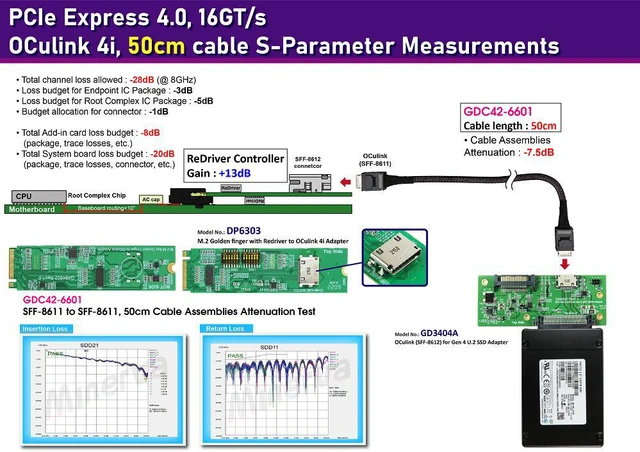

* Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBus bidirectional buffer repeater and Voltage level shift
* Built- in PERST# Bidirectional Voltage-Level Translator
* Built- in WAKE# Bidirectional Voltage-Level Translator
* Built- in CLKREQ# Bidirectional Voltage-Level Translator
* M. 2 CLKREQ# signal is tied to SFFF-8612 B13 pin
* Built- in PWRDIS Bidirectional Voltage-Level Translator
* M. 2 PWRDIS signal is tied to SFFF-8612 A9 pin

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with PCI_Express_OCuLink_ 1.0 a
* Compliant with SFF-9402 Specification Version 1.1
* PCI Express M. 2 Spec Rev 4.0 Ver 1.0 11052020 NCB


Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later


Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

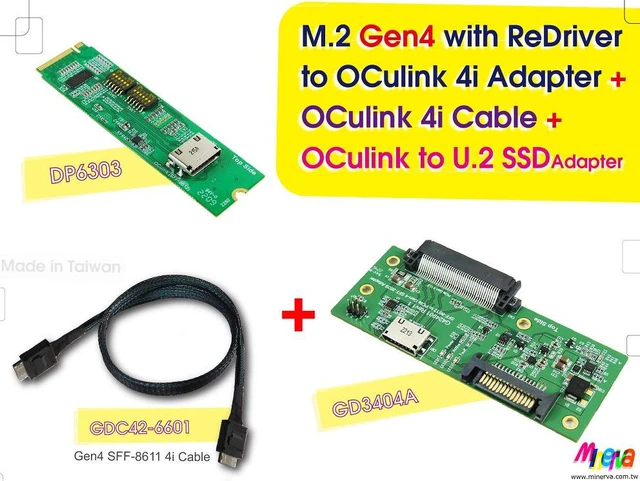

#Part Number: GDC42-6601

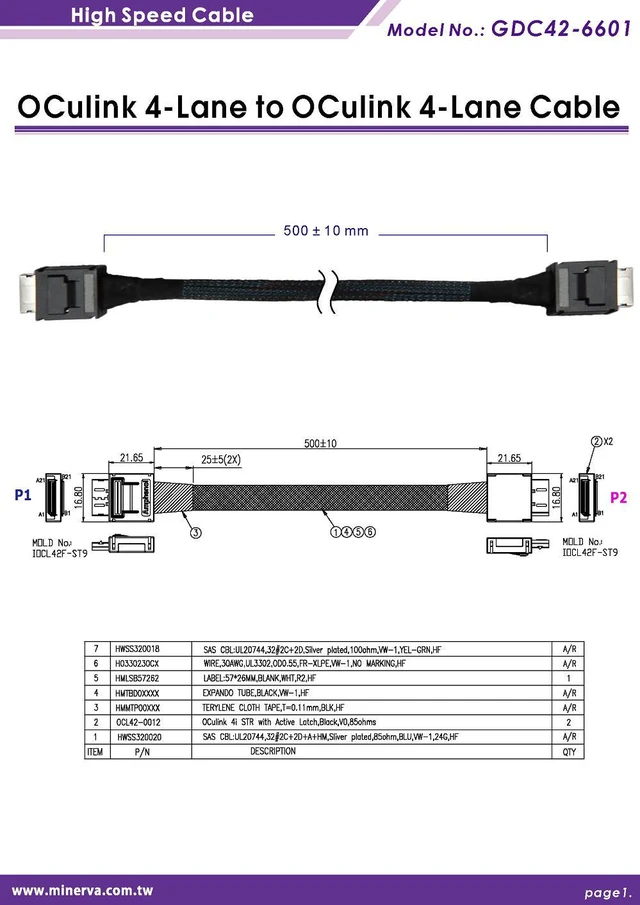

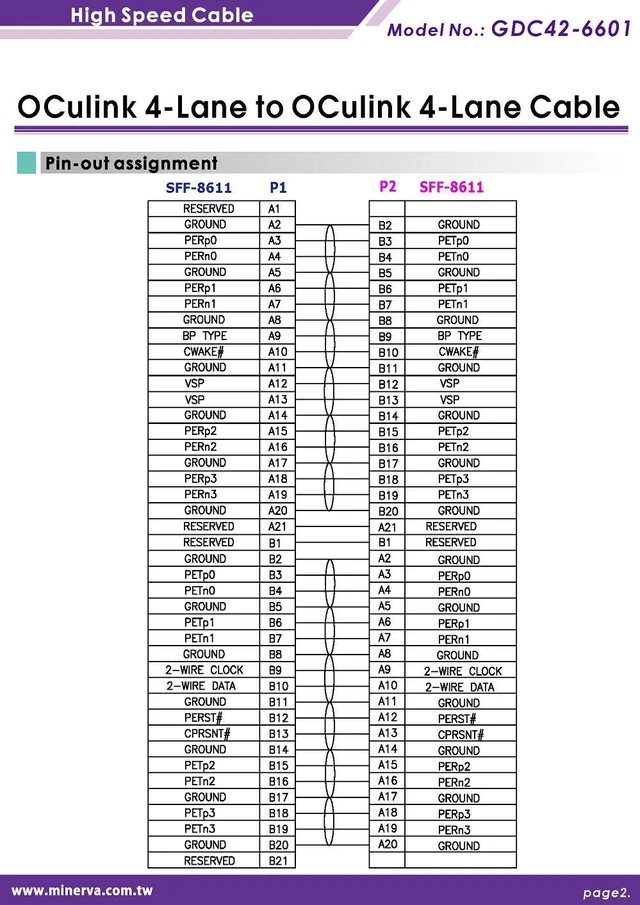

Product Description: PCIe Gen 4 16 GT/s OCulink 4i (SFF-8611) cable
Cable Length: 50CM

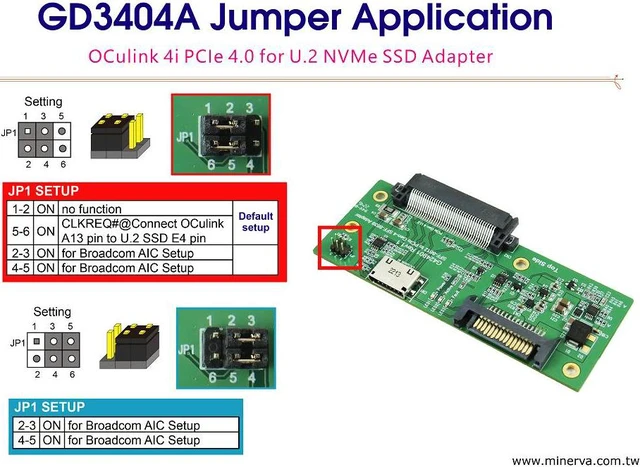

#GD3404A Adapter

Features:

* U. 2(SFF-8639) to SFF-8612 OCulink convert
* Build in SATA 15-pin power connector
* Build in SFF-8639 connector, pin-out defined by SFF-9402 Rev 1.1
* Build in SFF-8612 connector, pin-out defined by SFF-9402 Rev 1.1
* U. 2(SFF-8639) to SFF-8612 Oculink SMBus support
* LED 1 Red LED Blinking indicates SSD active status
* LED 2 Green LED on indicates SSD power ready

Specifications

:

* Compliant with NVM Express 1.0 a
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R 3.0 _V 1.0
* Compliant with PCI_Express_OCuLink_ 1.0


Applications:

* Servers
* HBA (Host Bus Adapter)
* Data Center
* Storage Racks
* Storage Controller
* Servers RAI
Ds (Redundant Array of Independent Disks)
* Routers
* Switchs
