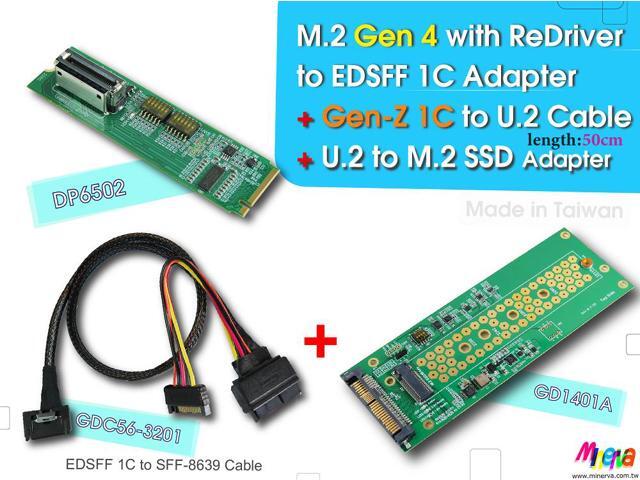

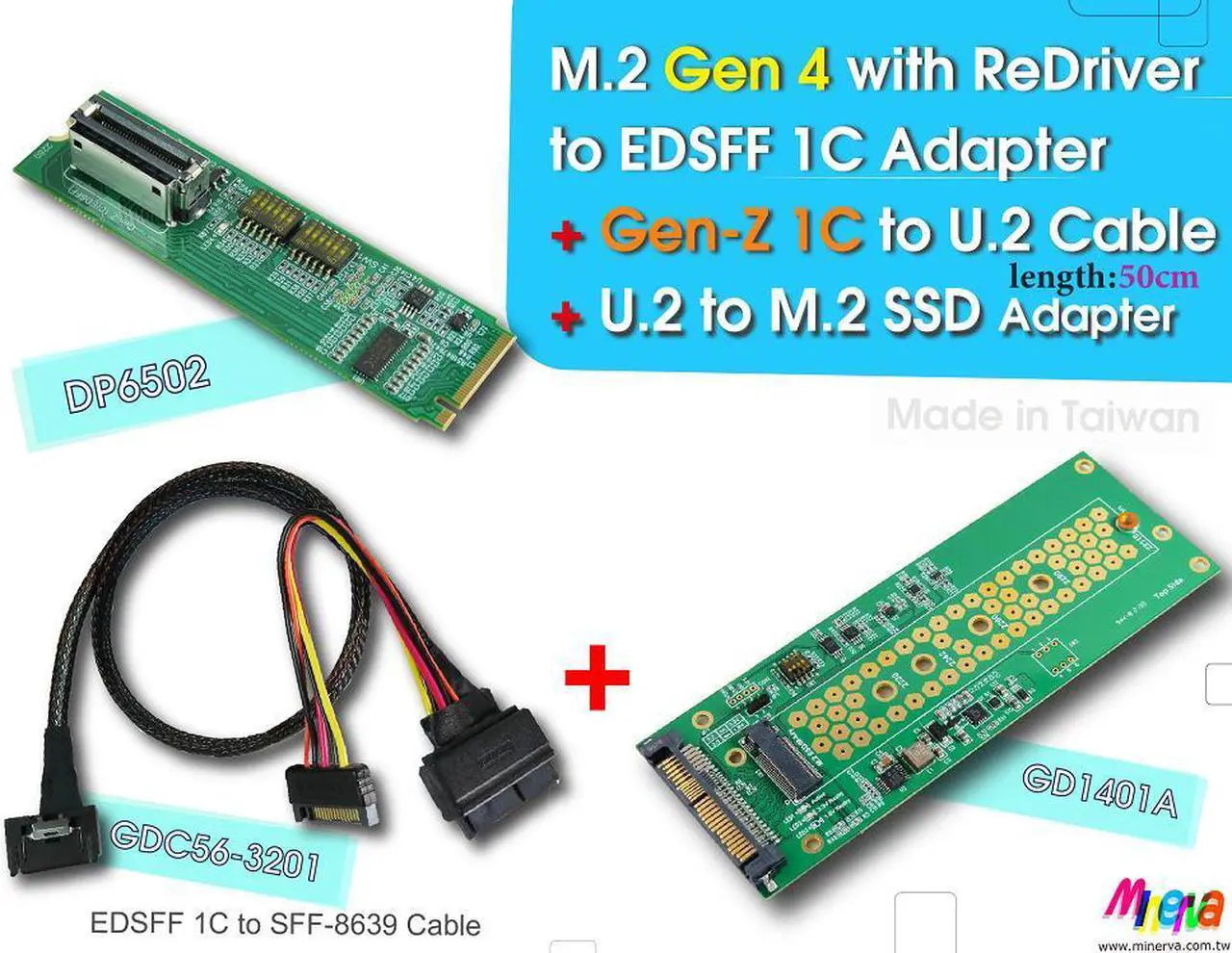

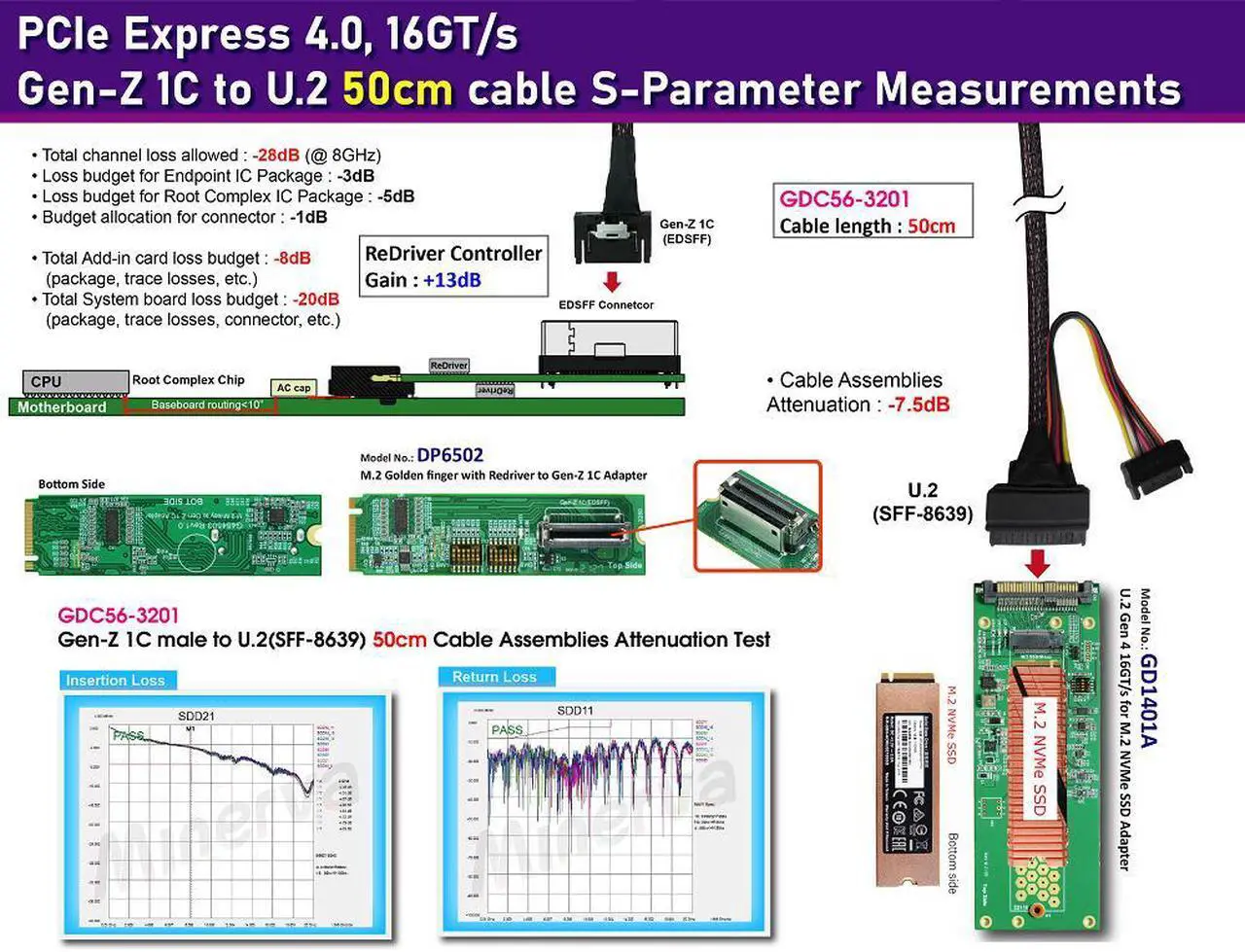

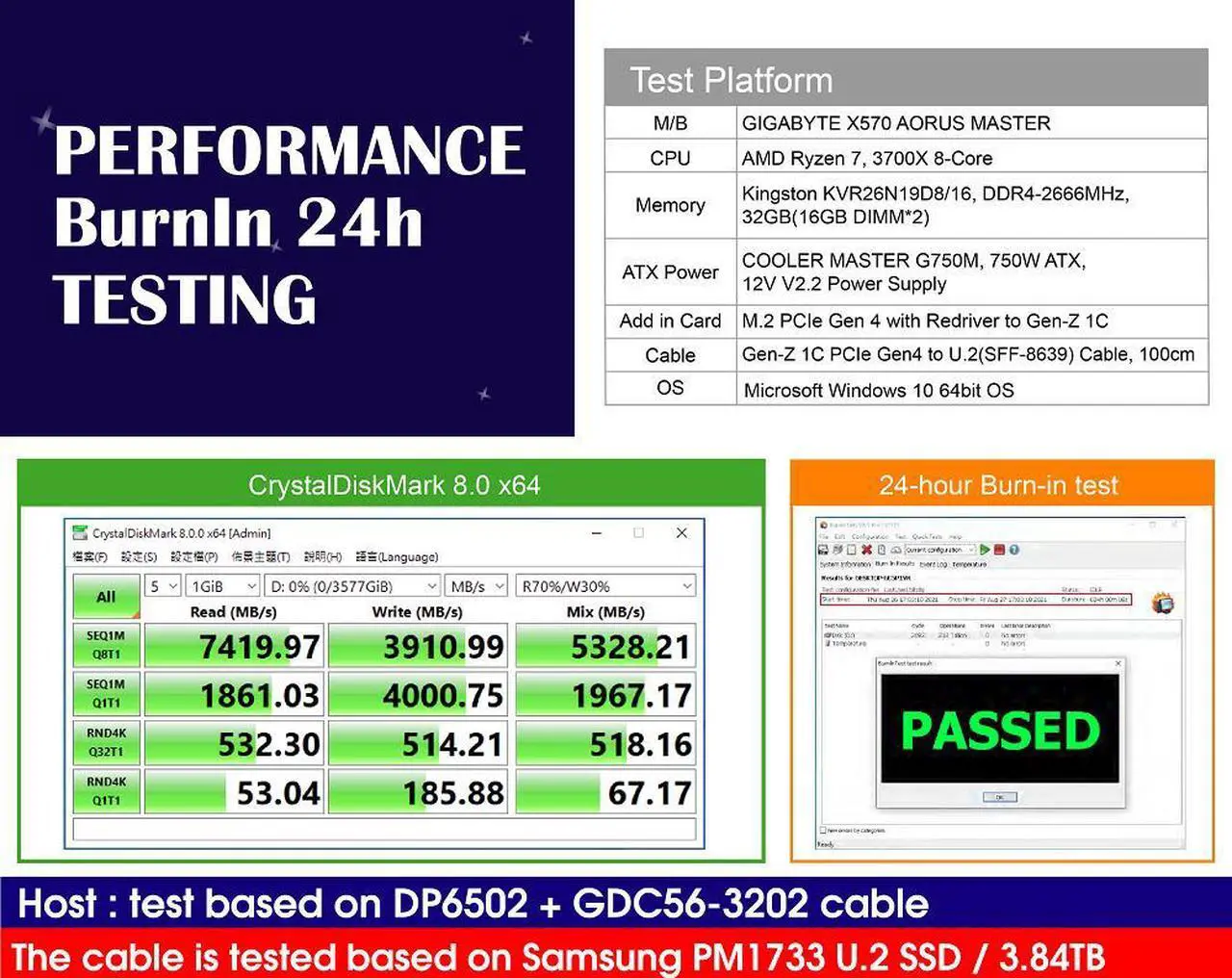

M.2 PCIe 4.0 with ReDriver for EDSFF 1C & Gen-Z 1C to U.2 Cable, 50cm & U.2 to M.2 NVMe SSD Adapter

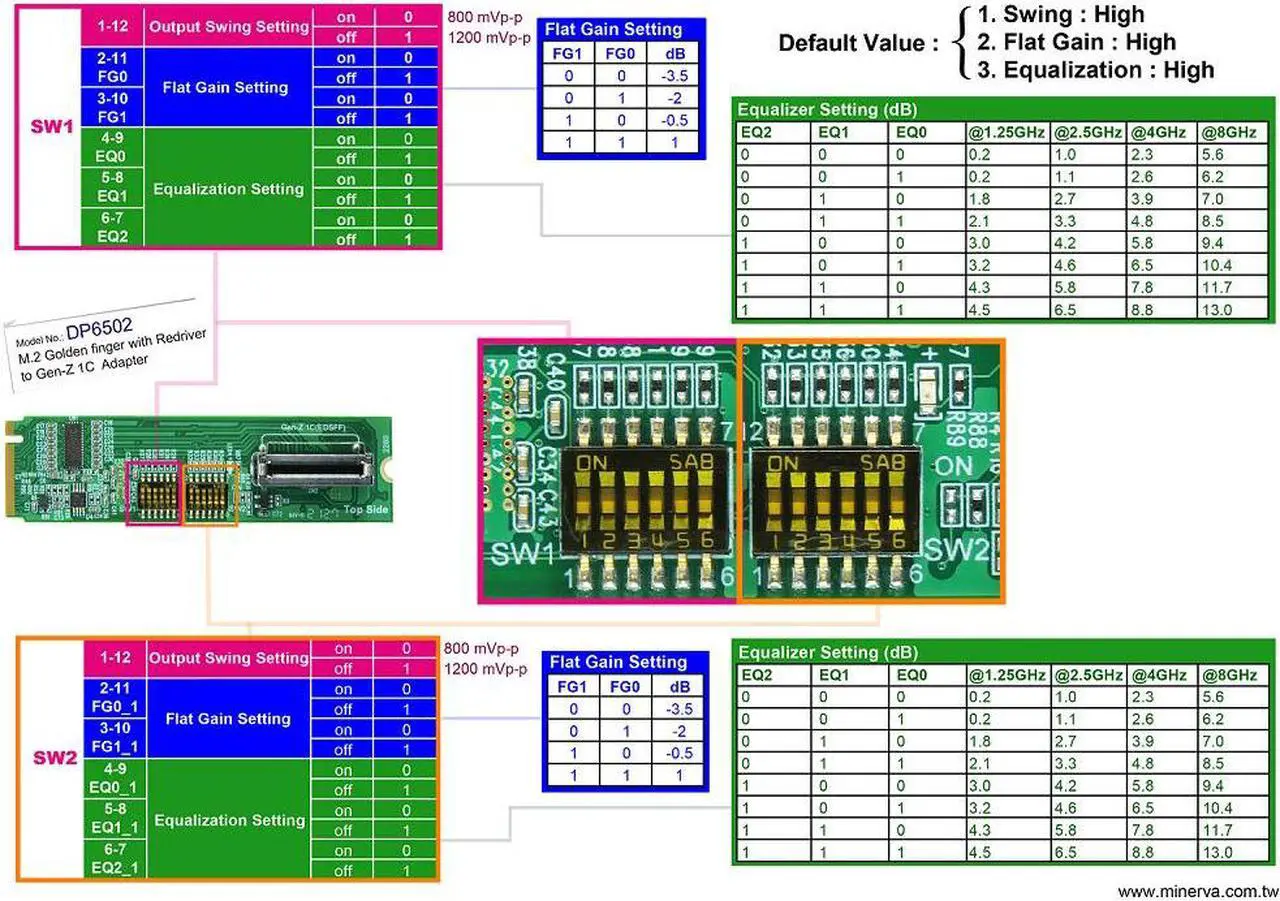

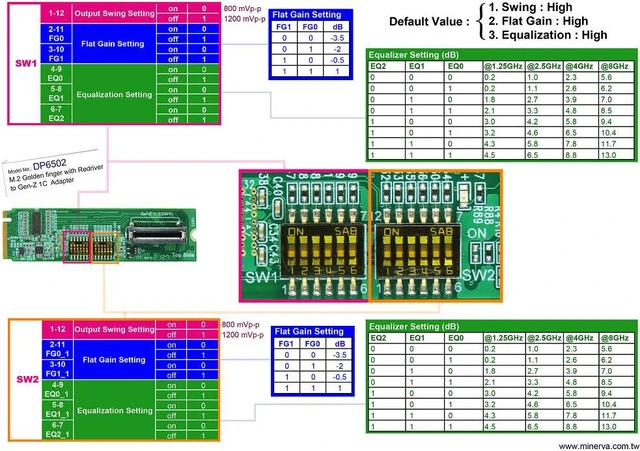

#"DP6502"adapter:
Features:
* Gen-Z 1C (EDSFF) to PCI Express 4.0 M. 2 4-Lane convert
* Built- in Gen-Z 1C (EDSFF) connector
* Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBCLK, SMBDAT bidirectional buffer repeater
* Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* PCI Express M. 2 Spec Rev 4.0 Ver 1.0 11052020 NCB
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1009 Specification Version 3.0
* Compliant with SFF-TA-1020 Specification Version 1.0

Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

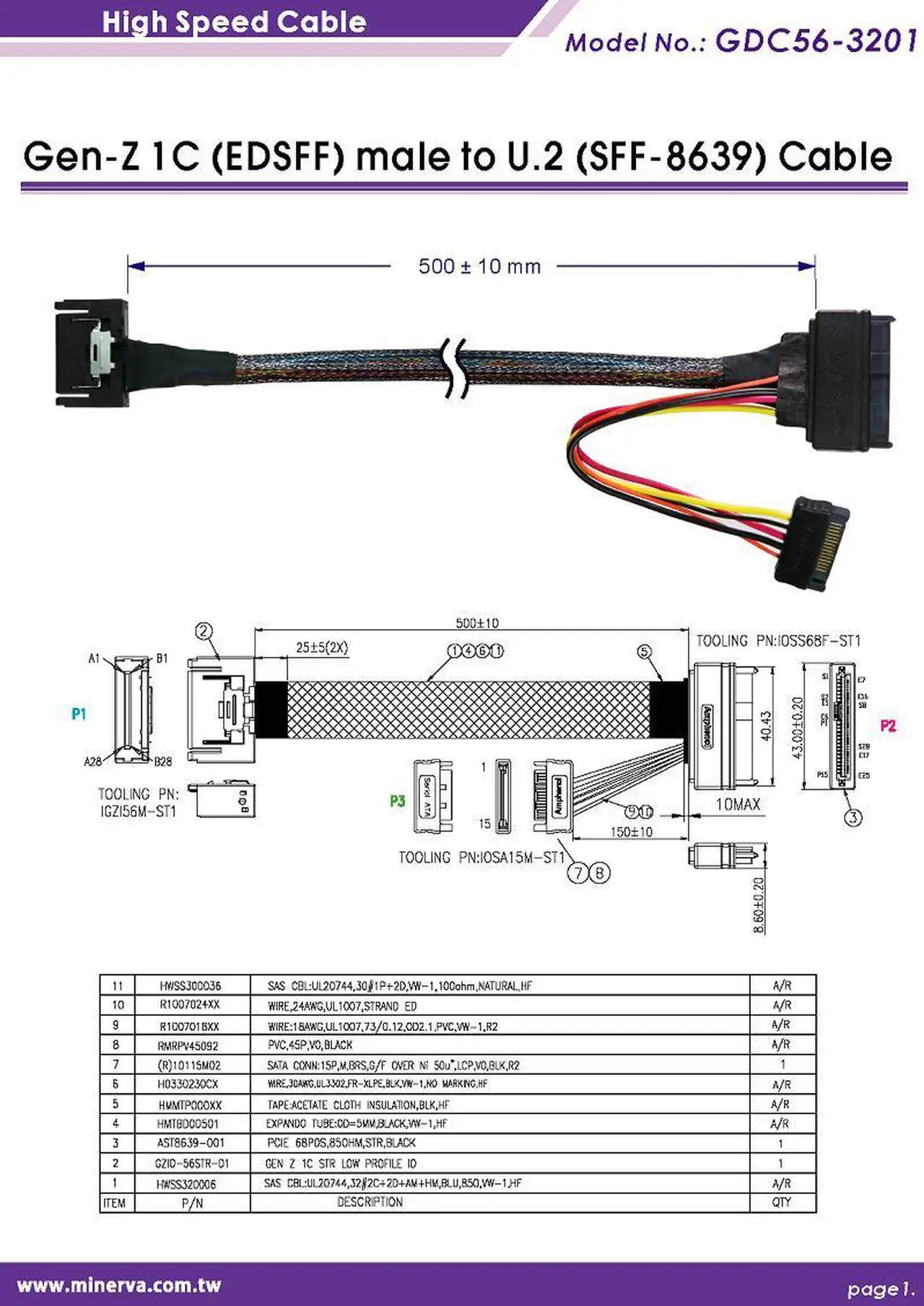

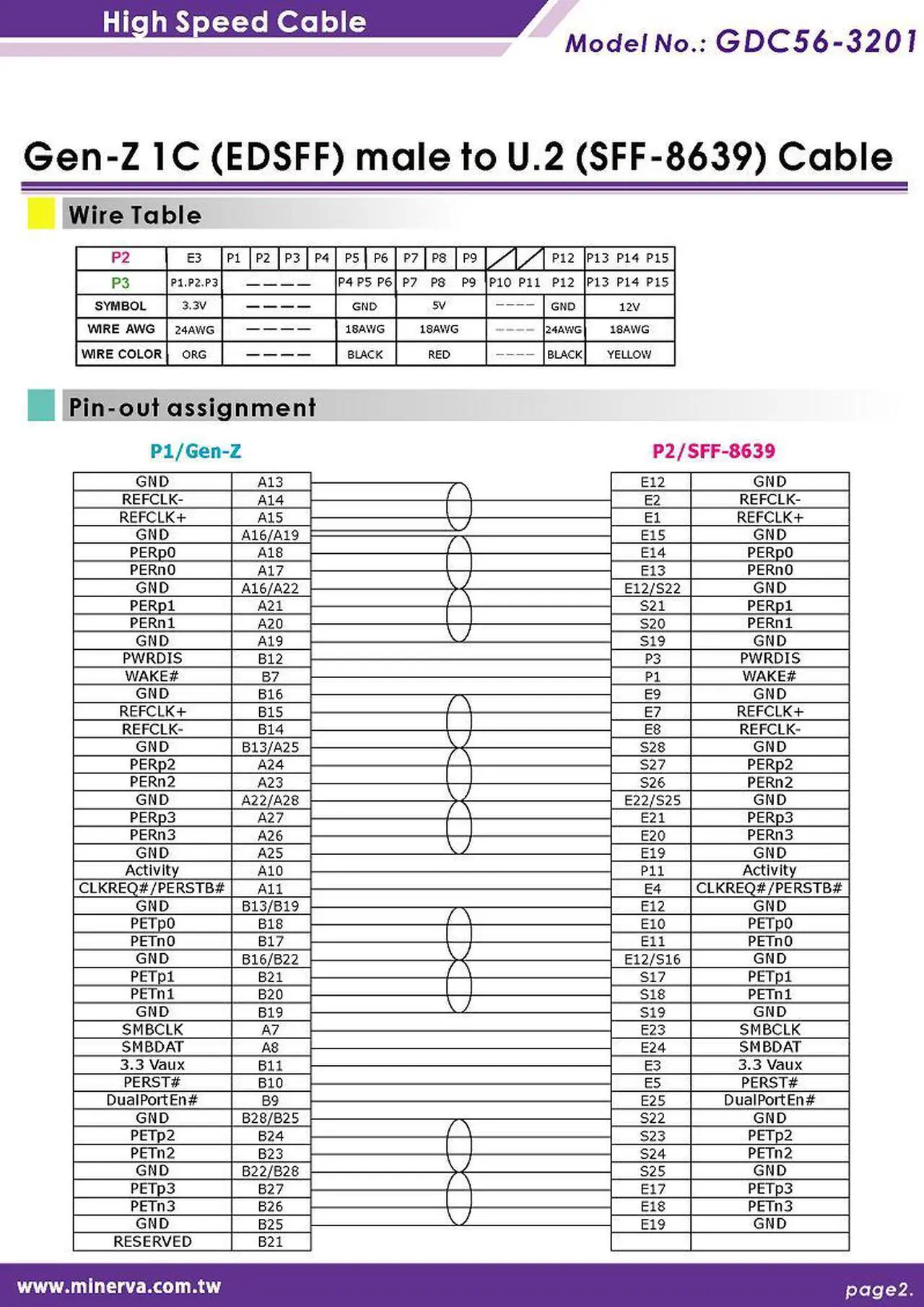

#Part Number: GDC56-3201
Product Description: PCIe Gen 4 Gen-Z 1C (EDSFF) to U. 2 (SFF8639) cable
Cable Length: 50CM



#GD1401A adapter:

Features:
* M. 2 NVMe to U. 2(SFF-8639) convert
* Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev 1.1
* PWM 12V to 3.3V synchronous buck converter Power for M. 2 NVMe SSD
? 5.5A maximum output current
? Output Discharge Control
? The output overcurrent protection (OCP)
? Uundervoltage lock out protection (UVLO) monitor
? Over/Under Vlotage Protection
? Thermal shutdown protection
? ESD HBM (Human Body Mode) /500V
* Built-in 3.3V Hotswap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for M. 2 SSD protection
* Supports M. 2 3.3V & 1.8V supply
* Supports M. 2 VIO_CFG Signal
* Supports M. 2 PERST# Signal 3.3V AND 1.8V Switching
* Supports M. 2 CLKREQ# Signal 3.3V AND 1.8V Switching
* Supports M. 2 WAKE# Signal 3.3V AND 1.8V Switching
* Supports PWRDIS Signal from U. 2 pin to M. 2 pin
* Supports M. 2 / 1.8V to U. 2/ 3.3V SMBCLK, SMBDATA Level Shift
* Supports M. 2 / 1.8V to U. 2 / 3.3V SMBCLK, SMBDATA isolated, repeater

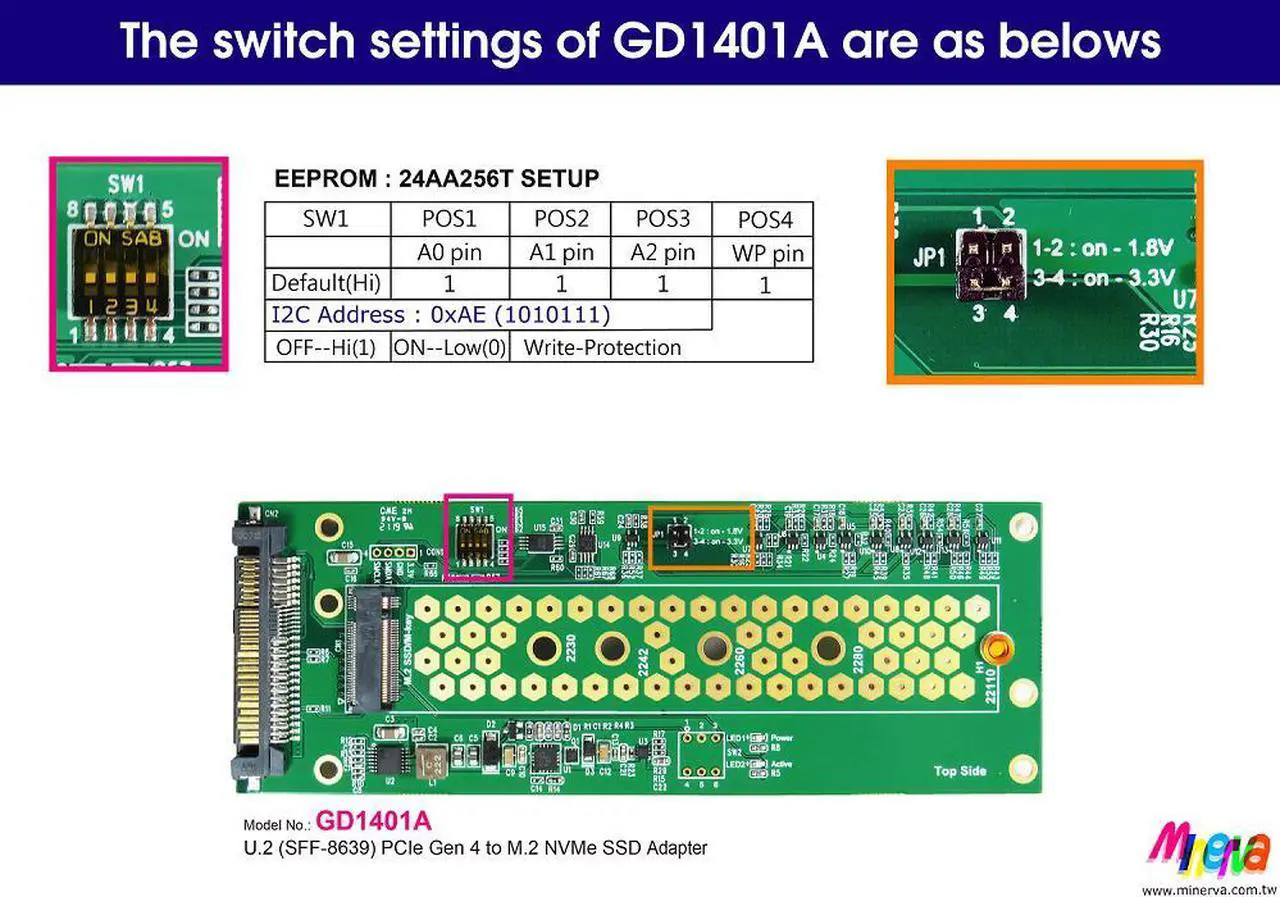

* Built-in SMBUS EEPROM 64KB
* D1 Green LED on indicates M. 2 NVMe SSD power ready
* D2 RED LED Blinking indicates M. 2 active status

Specifications

:
* Compliant with NVM Express 1.3 a
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCI Express M. 2 Specification Version 1.2
* Compliant with PCIe SFF-8639 Module Specification Rev 3.0
* Compliant with SFF-TA-1001 Rev 1.1

Supports the following form factor M. 2
SSD:
* Type 2242-D2-B-M: 42mm (L) x 22mm (W)
* Type 2260-D2-B-M: 60mm (L) x 22mm (W)
* Type 2280-D2-B-M: 80mm (L) x 22mm (W)
* Type 22110-D2-B-M: 110mm (L) x 22mm (W)
