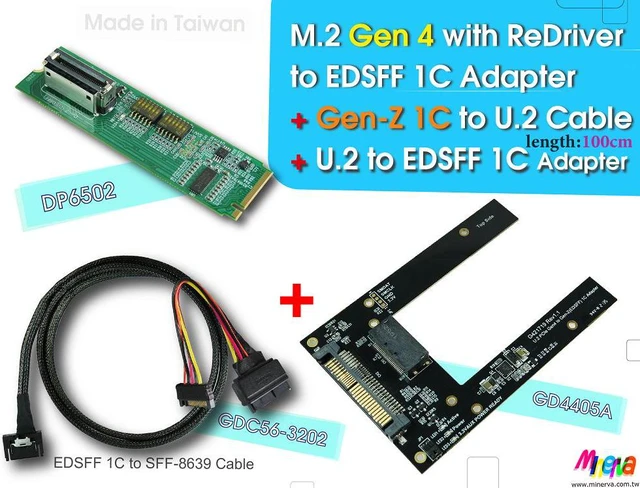

M.2 PCIe Gen 4 with ReDriver to Gen-Z 1C & Gen-Z 1C to U.2 (SFF-8639) Cable, 100cm & U.2 to EDSFF 1C Adapter KIT

#"DP6502"adapter:
Features:

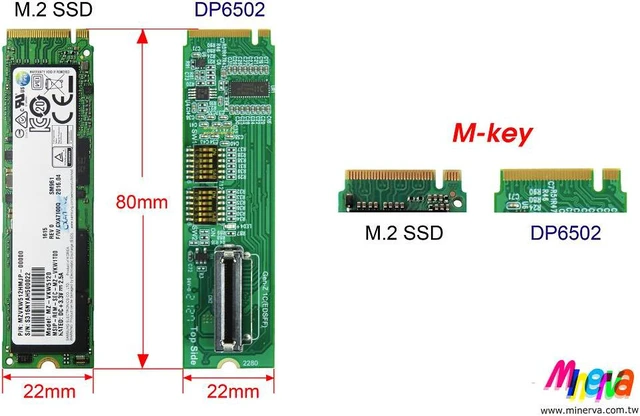

* Gen-Z 1C (EDSFF) to PCI Express 4.0 M. 2 4-Lane convert
* Built- in Gen-Z 1C (EDSFF) connector

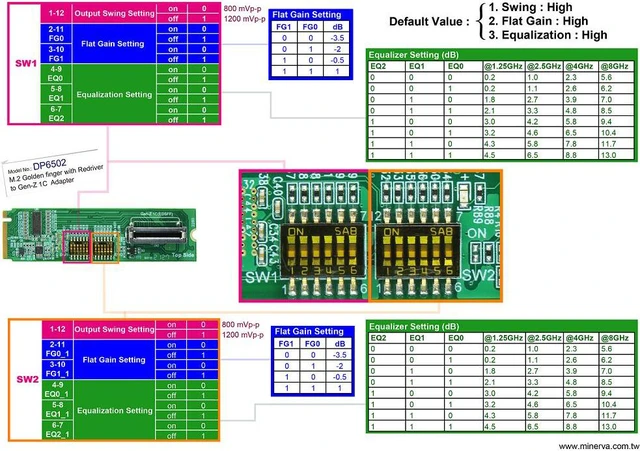

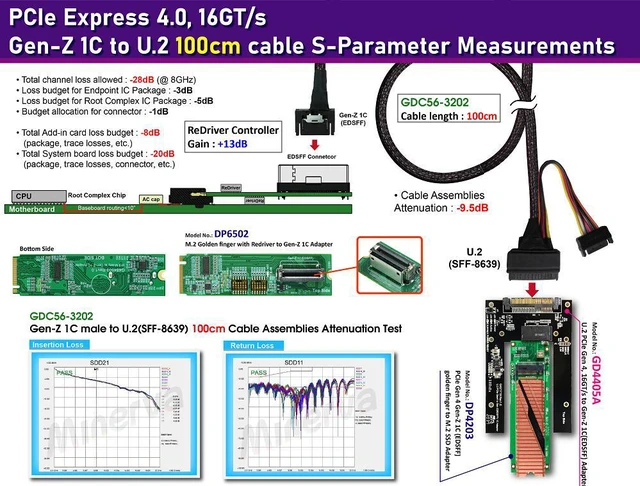

* Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBCLK, SMBDAT bidirectional buffer repeater
* Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* PCI Express M. 2 Spec Rev 4.0 Ver 1.0 11052020 NCB
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1009 Specification Version 3.0
* Compliant with SFF-TA-1020 Specification Version 1.0

Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard


#Part Number: GDC56-3202

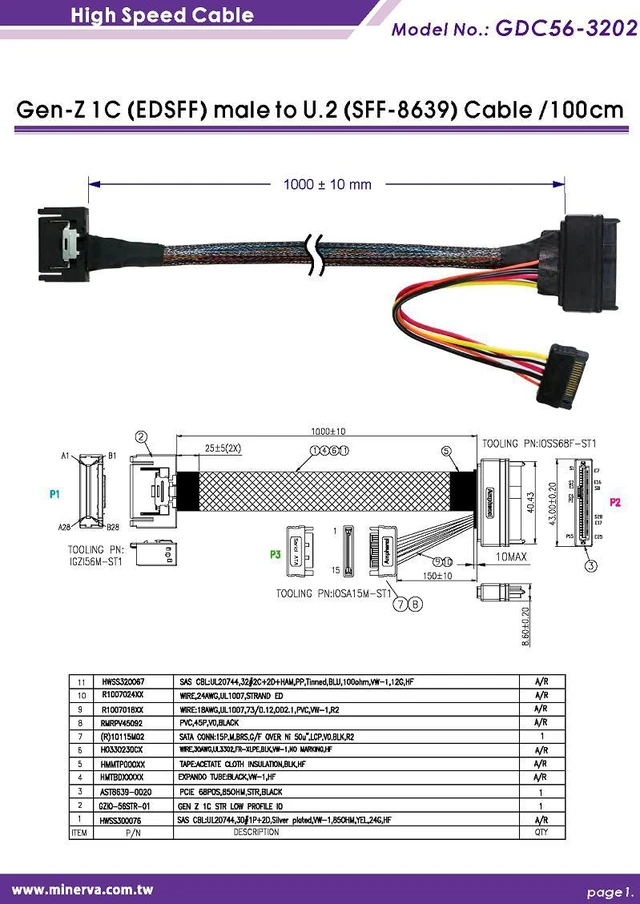

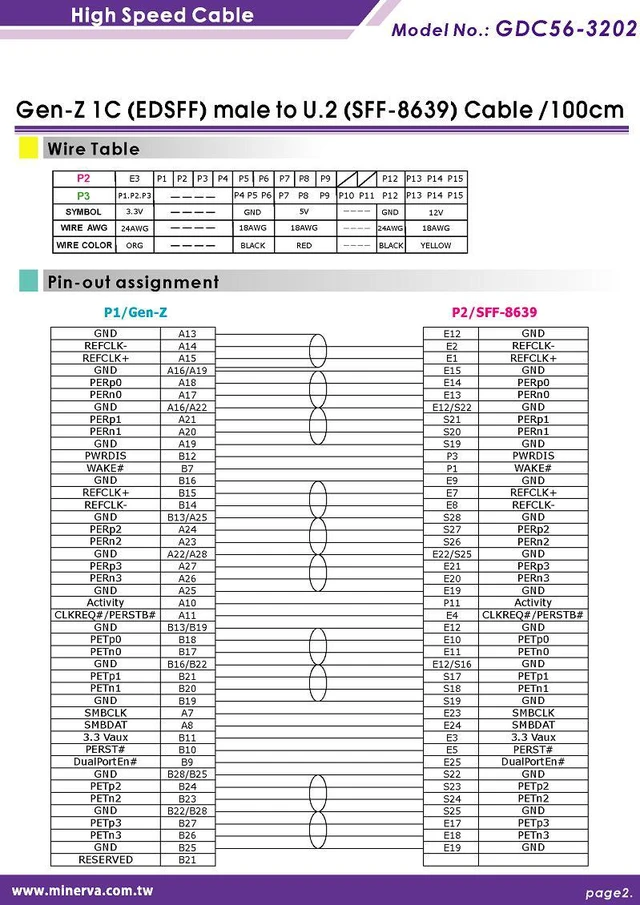

Product Description: PCIe Gen 4 Gen-Z 1C (EDSFF) to U. 2 (SFF8639) cable
Cable Length: 100CM



#"GD4405A"adapter:
Features:
* Built-in 12V Hot Plug Power IC with eFuse protection circuit
* Built-in U. 3(SFF-8639) Male connector
* Built-in EDSFF (Gen-Z) 1C Connector
* Supports SMB_CLK/ SMB_DATA
* Supports PWRDIS
* Supports DualPortEn
* LED1 GREEN indicates 12V Power Ready
* LED2 RED LED Blinking indicates Gen-Z SSD active status
* LED3 GREEN indicates PRSNT0# OK
* LED4 GREEN indicates 3.3V aux Power Ready
* JP1 pin header must be to setup on, when Host does not supply 3.3V aux

Specifications

:
* Compliant with NVM Express 1.2
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R 3.0 _V 1.0
* Compliant with SFF-TA-1001 Rev 1.1
* Compliant with SFF-TA-1002 Specification Multi Lane High Speed Connector Rev 1.3
* Compliant with SFF-TA-1006 Enterprise and Datacenter 1U Short SSD Form Factor Rev 1.4
* Compliant with Gen-Z Scalable Connector Rev 1.1
